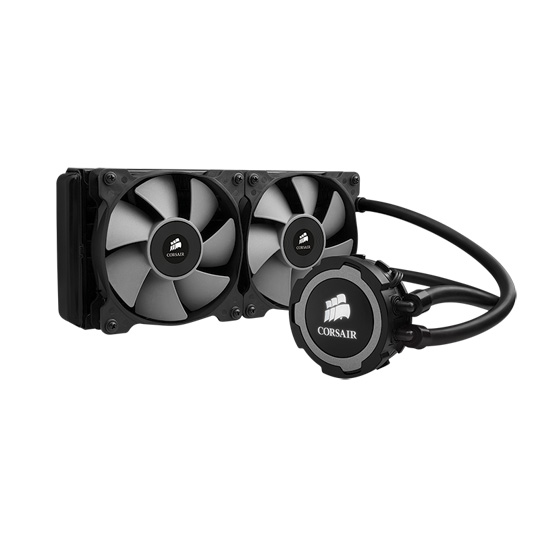

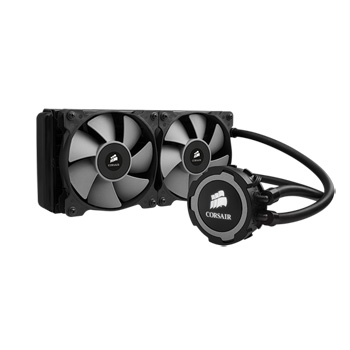

Corsair H105 Hydro Cooler

Corsair H105 Hydro Series, Extreme Performance 240mm Liquid CPU Cooler, LGA 115x, 1366, 2011, AM2, AM3, FM1, FM2, TR4

Scan code: LN55383 Manufacturer code: CW-9060016-WW Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review High End
Delivery options £5.48 By DPD On 21st Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview This CPU Cooler is Intel Skylake ready and is recommended for use with unlocked "K" type Skylake processors.

BONUS: Includes user-swappable colored rings to match rest of system!

Hydro Series H105 provides extreme CPU cooling performance. The 38mm thick 240mm top-mounted high-capacity radiator is paired with high-RPM SP120L fans for the fast heat dissipation you need for highly overclocked CPUs. And, PWM fan speed fan control lets you select the precise level of cooling power you need through your motherboard BIOS

Installation is easy, with an all-new mounting bracket that provides quick, tool-free assembly. The three included red, grey, and blue accent rings let you match your H105 to your DRAM and motherboard color scheme. And, like all Hydro Series liquid CPU coolers, the H105 is completely self-contained, with no filling or maintenance required. Features Extreme CPU cooling performance
The extra-thick 240mm radiator increases surface area significantly for superior heat dissipation.

Take advantage of your case’s 240mm radiator mount
Use your case to its fullest potential with a massive CPU cooler.

Protect your hardware and increase your CPU’s overclocking potential
Keep your CPU frosty at stock speeds or eek out that extra hundred megahertz of clock speed

Dual SP120L fans with PWM control for customized cooling performance
SP120L high performance, high static pressure fans are optimized specifically for radiator usage.

All-new mounting bracket design for easy installation
Thumbscrews and snap-in head mount ring design for quick and easy installation on AMD and Intel processors.

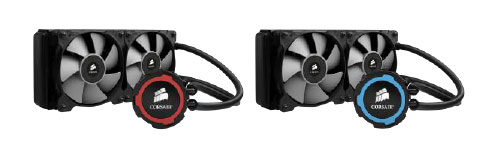

Includes three color accent rings to match your H105 to your motherboard
Default metallic grey, and added red and blue colored rings to match your Corsair Air Series fans or other motherboard, memory, or GPU color themes in your case.

Compatible with Ryzen Threadripper Processors on the AMD X399 platform, when used inconjunction with the bracket included with the CPU.
Cooler Specifications
Cooler Form Factor
Cooler Features
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011
  • 2066
  • AM2
  • AM3
  • AM3+
  • FM1
  • FM2
  • TR4 (using bracket included with CPU)
Max. Recommended TDP
Max. Cooling Capacity
Fan Specifications
Included Fan Configuaration
Fan Edition
PWM Fan No
Fan Bearing Type
Fan Colour
LED Lighting Colour
Fan Connectors
Approx Fan Speed 800 - 2700 +/- 10% rpm
Adjustable Fan Speed Controller No
Fan Airflow 73 CFM
Air Pressure
Sound Level (dB) 37.7 dB
Sound Level (Sone)
Fan Material
Heatsink Material Aluminium / Copper
Included TIM (Thermal Interface Material)
Dimensions & Weight
Fan Dimensions 120 x 25 mm
Heatsink Dimensions 270 x 120 x 38 mm (WxHxD)
Total Dimensions

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
0871 472 4747
Customers also bought
Corsair H105 Hydro Series, Extreme Performance 240mm Liquid CPU Cooler, LGA 115x, 1366, 2011, AM2, AM3, FM1, FM2, TR4 is rated 4.8 out of 5 by 13.
Rated 3 out of 5 by from Decent performance, VERY loud Honestly, Corsair have dropped the ball on this one for only one reason. Noise. They have a potentially very good closed loop system, and then ruined it with the fans. They are very loud (appears to be coil whine mixed with air noise but honestly I'm not 100% sure) and don't offer the airflow to quantify it. Replace these with some quieter fans and you have a winning product. In terms of temperatures; I bought this to deal with my i7 6700K, as it was previously being cooled by a beQuiet! ShadowRock LP, with temps hitting 85C - 90C with no overclock. The H105 reduced the temp by 5C average, which was odd. This actually led me to delidding the CPU (NOT RECOMMENDED. DO NOT ATTEMPT THIS YOURSELF). After delidding, the BQ SR LP hit 60C and the H105 dropped it to a max of 47C. The CPU is now overclocked to 5.1Ghz with a 1.38vcore and max temps of ~60C (The SR LP hit thermal shutdown on OS boot) Performance wise, this product is exactly what it says and I am impressed with the heat dissipation. I truly wish it had come with quieter fans and would recommend it if that were true.
Date published: 2017-02-04
Rated 5 out of 5 by from Refurbished products are a serious buying option. I bought this as a 'refurbished product' and obviously at a greatly reduced price and what a bargain, the best money I've ever spent as the cooler is at least as good as a new one.
Date published: 2016-10-31
Rated 5 out of 5 by from Great cooler for the price I decided to buy the h105 over the NZXT X61 due to the cheaper price and 120mm fan mounts. I was not disappointed - the h105 dropped my 5820k temps by at least 10 degrees compared to the push/pull h212 evo I had on it before. I overclocked the cpu to 4.2ghz and even then it never went beyond 65 degrees in stress testing. Be warned however, that the stock fans are rather noisy - I swapped them out for some Air Series SP fans which are much quieter but are just as good for performance. The pump led is quite bright and relatively quiet apart from the odd gurgle now and again. The radiator is a good size, for better temps, yet I managed to fit it in an h440 push/pull perfectly fine, and it does a great job keeping the temps down.
Date published: 2016-09-01
Rated 5 out of 5 by from Put this anyway on your PC, it will cool ! At first I was bemused by length of pipe, that it only allowed to place the fan within a few inches of cpu (6 or 7 inch), at the top of the system box. It turns out, it really doesn't make any difference, it does it's job superbly! A very good product. (I'm using a xeon 2687w, 8 cores, with a Gigabyte X79 motherboard).
Date published: 2016-05-31
Rated 5 out of 5 by from Excellent all Product as described arrived well packaged, in time, good price to the market. I glad I found Scan to provide righteous products and service.
Date published: 2016-03-05
Rated 5 out of 5 by from Excellent cooling and easy to fit. I've wanted one of these for a while now as I was impressed with the reviews I had read. I am not disappointed. Really easy to fit in my Corsair Obsidian 750D and easily cools my overclocked i7 4770K at 4.5GHz. The fans it comes with are good quality, but spin up to 2,200rpm, at which point, they become very loud, so I swapped them for a couple of Corsair SP120PWM Quiet Editions. I lost a couple of degrees cooling, but it stopped my ears bleeding! Very pleased with the result.
Date published: 2015-03-22
Rated 5 out of 5 by from Efficient and effective I have a H105 cooling a i7 4790k in a bitfenix phenom mini-itx case and it keeps desktop temps to ~30C and never hits more than the mid 60's under 100% load. One thing worth noting is that rubber washers help to massively reduce vibration, the main source of noise from the unit, when attached between the radiator and the fans so I would recommend picking 8 of these up. Installation is also very simple with this unit which is always a plus.
Date published: 2014-10-30
Rated 5 out of 5 by from Best cooling Easy installation Best design normal noise level Awesome cooling. Was small problem to fit in my Cooler Master Storm Trooper case, but i did it)))
Date published: 2014-10-02
