Corsair Hydro X Series - XR 7 480mm Thick Water Cooling Radiator

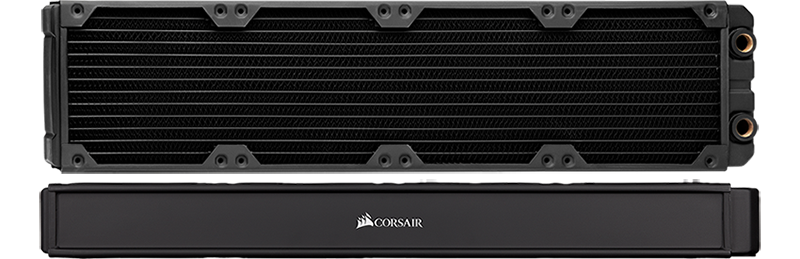

X Series XR7 480mm Radiator

HYDRO X SERIES THICK RADIATOR FOR CUSTOM WATECOOLED SYSTEMSThe CORSAIR Hydro X Series XR7 480mm Water Cooling Radiator delivers extreme custom liquid cooling performance, with 54mm radiator thickness and 25 micron thin cooling fins maximizing heat dissipation surface area. A premium copper radiator core is optimized for use alongside copper CPU and GPU water blocks, further increasing the thermal transfer rate. Intuitive extras such as Integrated Fan Screw Guides and built-in Screw Protection Plates make it easy to install fans, without worrying about damaging the radiator. Equipped with standard G1/4" ports for universal compatibility and the surface area to tame even the highest-end hardware, the XR7 480mm radiator stands ready to cool even the most ambitious custom cooling loops and defeat the heat.

Extreme Performance Liquid Cooling

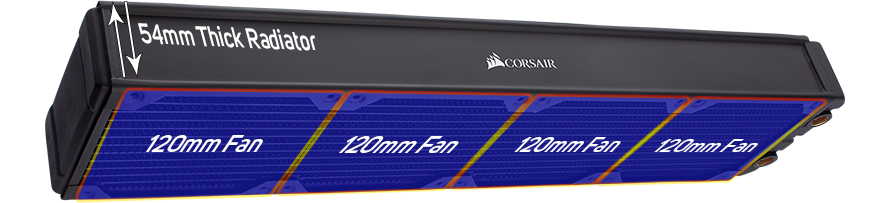

XR7 480mm fan capacity

Large Surface Area with Integrated Fan Screw Guides A 54mm Radiator thickness delivers extreme cooling performance with high-airflow and low-noise fans. Quad 120mm fan mounts can be found on either side are ready for your most ambitious custom liquid cooling build. The integrated fan screw guides ensure easy installation for your fans.

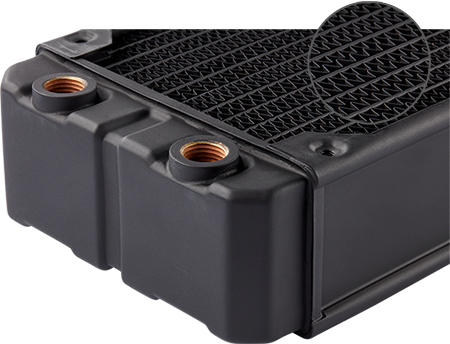

Premium Copper Construction

Standard G1/4” Threads

Standard G1/4” Threads A premium copper radiator core and 25 micron thick cooling fins provide a high thermal transfer rate optimized for CORSAIR’s performance copper water blocks. All inlet/outlet ports provide universal fitting compatibility with screw protection plates that prevents too long or over-tightened screws from damaging the radiator. The high-quality matte black polyurethane coating leaves a flawless finish to match your system

Specifications
Edition Hydro X Series XR7
Type 480mm Water Cooling Radiator
Compatible Fans 8 x 120mm
Radiator Thickness 54 mm
Features
  • High-Quality Polyurethane Coating
  • Integrated Fan Screw Guides
  • Premium Copper Radiator Core
  • Screw Protection Plates
Fin Spacing 13 FPI 25 Micron Copper Fins
Port Threads G1/4" BSPP
Screw Thread Size M4xP0.7
Construction Materials
  • Brass
  • Copper
Loop Compatible Metals
  • Brass
  • Copper
  • Nickel-Plated Brass
  • Nickel-Plated Copper
Compatible Coolants CORSAIR XL or equivalent
Max. Coolant Operating Temperature 60 °C
Colour Black
Radiator Dimensions 120 x 518 x 54 mm (WxHxD)
Weight 1630 g
Additional Information
Scan Code LN93270
Model Number CX-9030006-WW
GTIN 843591081177
