Scan code: LN42631 Manufacturer code: RR-TX3E-22PK-R1

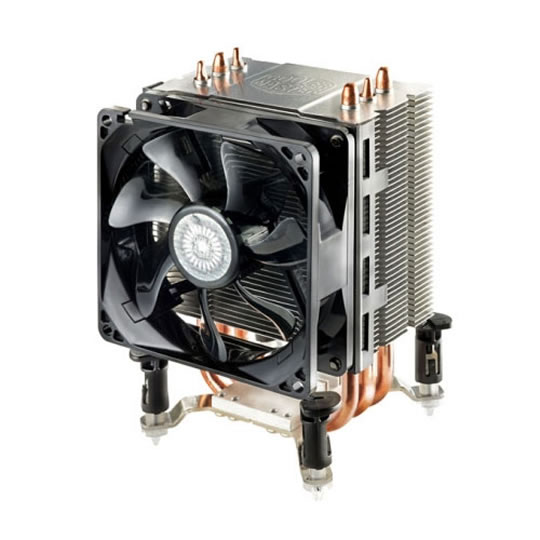

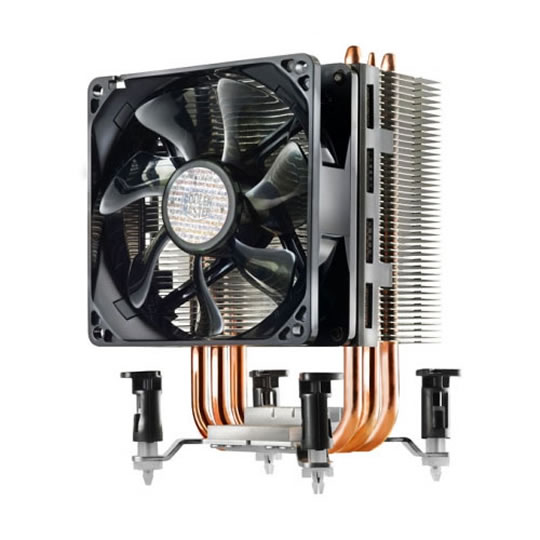

Cooler Master Hyper TX3 EVO CPU Cooler Intel/AMD/AM4

Cooler Master Hyper TX3 EVO CPU Cooler 92mm Fan, for Intel/AMD and AM4

Thumbnail 1 : Cooler Master Hyper TX3 EVO CPU Cooler Intel/AMD/AM4 Thumbnail 2 : Cooler Master Hyper TX3 EVO CPU Cooler Intel/AMD/AM4 Thumbnail 3 : Cooler Master Hyper TX3 EVO CPU Cooler Intel/AMD/AM4 Thumbnail 4 : Cooler Master Hyper TX3 EVO CPU Cooler Intel/AMD/AM4
Scan code: LN42631 Manufacturer code: RR-TX3E-22PK-R1
£18.98
Add To Basket
In stock
Delivery Options
  • By DPD On 24th May 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview The Hyper TX3 EVO cooling system is designed and optimized to provide the best user experience and cooling potential for a new generation of processors.

Optimized for current and future generation sockets, the Hyper TX3 EVO sees improvement in its Direct Contact heat pipe performance, expanded socket support, and a higher quality 92mm wide-range PWM fan.

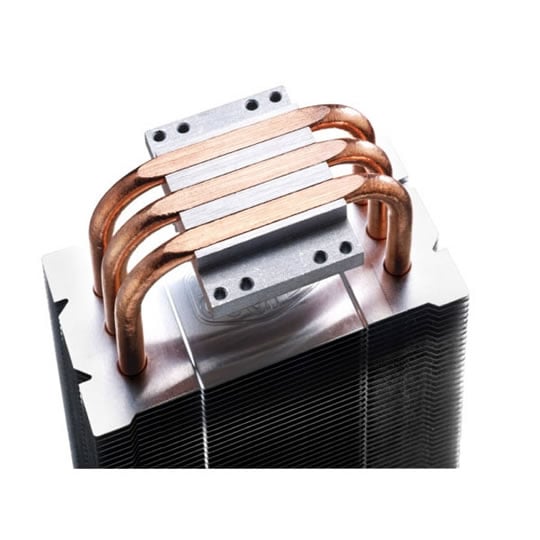

For Intel & AMS Socket 775/115x/1366/AM2/AM2+/AM3/FM1/FM2 and the new AM4 Features • 3 direct contact heat pipes with a base that is engineered to minimize CPU contact gaps – providing excellent heat conduction.
• Option for adding 2nd fan with quick-snap fan brackets to increase cooling performance.
• A mere 17 dBA (minimum speed) is accomplished by utilizing a silent 92mm PWM fan with a wide RPM range.
• Versatile all-in-one mounting solution supporting the latest Intel® LGA 1366 / 115x and AMD FM1 / AM3+ and the new AM4.
• Excellent airflow design with compact heat sink dimension.
Specifications
Cooler Specifications
Edition
Cooler Form Factor
Heatpipes
Cooler Features
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 775
  • AM2
  • AM2+
  • AM3
  • AM3+
  • AM4
  • FM1
  • FM2
  • FM2+
Max. Recommended TDP
Max. Cooling Capacity
Fan Specifications
Included Fan Configuaration
Fan Edition
PWM Fan No
Fan Bearing Type
Fan Colour
LED Lighting
Fan/Pump Connectors
Approx Fan Speed 800 - 2200 rpm
Manual Fan Speed Controller No
Fan Airflow 15.7 - 43.1 CFM
Air Pressure
Sound Level (dB) 17 - 30 dB
Sound Level (Sone)
Materials
Fan Material
Cooler Material Aluminium / Copper
Included TIM (Thermal Interface Material)
Dimensions & Weight
Fan Dimensions 92 x 92 x 25 mm
Heatsink/Radiator Dimensions 90 x 51 x 136 mm (WxHxD)
Total Dimensions
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Customers also bought
TekSpek Guides
Intel Branding Part I
Intel Branding Part I
Date Issued: 1st Jul 2009

Intel’s been on a mission of late. That mission revolves around grouping and standardising key technologies under various banners that are designed to ensure hardware compatibility and consumer ease of use. We’ll take a closer look at three such technologies that fall under the headings of Centrino, Viiv, and vPro, respectively.

Read More

Intel Core 2 Duo (Conroe)
Intel Core 2 Duo (Conroe)
Date Issued: 20th Oct 2008

The purpose of this TekSpek is to delineate the publicly known features of Intel’s next generation desktop microarchitecture. Codenamed Conroe and officially titled Intel Core 2 Duo, it’s loosely based on the current mobile Yonah (Core Duo) underpinnings.

Read More

AMD AM2
AMD AM2
Date Issued: 20th Oct 2008

The purpose This TekSpek quickly and easily explains AMD’s new processor socket and related technology to the reader, comparing it to AMD’s previous socket types.

Read More

AMD 64 Processors
AMD 64 Processors
Date Issued: 20th Oct 2008

This TekSpek explains what AMD’s AMD64 CPU instruction set architecture (ISA) is, shows what CPUs implement it from both AMD and Intel, and explains what software is available to run on those 64-bit consumer processors.

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Overclocking
Overclocking
Date Issued: 20th Oct 2008

This TekSpek explains why you’d want to overclock your graphics board, the risks in doing so and how you can go about doing it.

Read More

Core 2
Core 2
Date Issued: 14th Jun 2008

There’s been a lot of hype about Intel’s Core 2 recently, even since they launched Core in fact. Words like Conroe, Badaxe and Allendale have been flying around. The bottom line is that Core 2 is the name of Intel’s latest line of CPUs, based on a new micro-architecture, designed for speed and efficiency.

Read More

System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Reviews
Cooler Master Hyper TX3 EVO CPU Cooler 92mm Fan, for Intel/AMD and AM4 is rated 4.2 out of 5 by 18.
Rated 4 out of 5 by from Decent little fan, but a little loud Got some great temps on a old AM4 build, but at full pelt it was quite loud.
Date published: 2018-04-15
Rated 3 out of 5 by from This Product is Quiet The product is a good product and very quiet however the fan did break therefore had to send the product back but this was not scans fault more the supplier and scan fixed this issue quickly.
Date published: 2016-10-26
Rated 4 out of 5 by from Everything but the bracket (for AMD) A good, somewhat versatile cooler design, given one could easily grab another fan to double the cooling on it. Its a solid heatsink so nothing fancy here, but pretty affordable all things considered. There is, however, something of a flaw here, and I'm not sure who bears more of the responsibility - AMD, or Cooler Master themselves. See, Intel has it pretty nice and simple, where you can screw the heatsink in after placing it down. For AMD? You have to put in a loose, oddly shaped bracket beneath the heatsink, to then latch it onto part of the motherboard and then hold it in place via a lever mechanism that can end up awkwardly placed depending on what way you decided the fan should go. Its just a baffling design choice in an otherwise good product.
Date published: 2016-08-26
Rated 4 out of 5 by from High quality affordable cooling solution Very imprest with the build quality.Bought this to cool my i5 6600k dose an excellent job with no over clocking. Simple installation and at idle and on a warm day running at 39 C this doesn't go above 65-70 C in real use. With over clocking at 4.2 ghz handles well but I'm no serious gamer fan can get a little noisy pass 70%,but otherwise very quiet. If Over clocking is your thing then a large cooler is needed.
Date published: 2016-05-31
Rated 4 out of 5 by from Incredible! Delivery was super fast and packaged terrifically keeping the product safe and packaged well. The product itself was easy to install and worked first time, it's cool, it's quiet, it's just what I wanted.
Date published: 2016-03-21
Rated 5 out of 5 by from Great product My i7-4790k was reaching temps of 100 plus but after i installed this they never go above 80, so this cooler has dropped my temps by on average 20 celsius. One thing that i did find hard was the installation - it has meant that the board has become a little bowed where the cooler is attached due to such a tight fit - i suppose this is necessary to get the best contact and conduct the heat efficiently however, when installing i was unsure as i kept thinking i was going to break my motherboard, due to this the installation took a very long time, next time i wont be so cautious.
Date published: 2015-10-10
Rated 5 out of 5 by from Cooler Master Hyper TX3 EVO CPU Cooler Purchased the Cooler Master Hyper TX3 EVO CPU Cooler from Scan to replace a stock cooler. CPU temperatures and fan noise has improved as to be expected.
Date published: 2015-10-07
Rated 4 out of 5 by from it works the company was good, the product came in good time and the product is working well, no complaints
Date published: 2015-07-02
  • y_2018, m_5, d_21, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_18
  • loc_en_GB, sid_42631, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

does this cooler fit inside a small form factor case ?

I have a fractical design core 1000 case which I bought of you about a week ago and I want to put a after market cooler inside it so this cooler looked great but I am not sure it will fit due to it being a large cooler. Here is a link to my case from you : http://www.scan.co.uk/products/fractal-design-core-1000-black-micro-atx-mini-tower-performance-case-with-120mm-quiet-fan-w-o-psu-(s Thanks for your help
Asked by: TomHolt
I have a micro atx board and a colossus micro-atx case and it fits fine, one thing is that i wont be able to get a second fan on the cooler as it will hit the RAM as i have all four slots loaded up. I am using a Z97-G43m motherboard micro-atx.
Answered by: cash35
Date published: 2015-12-13

Does this cooler come with thermal paste?

Pre-applied or in a tube I don't really mind I was just wondering because I don't really want to buy any if i don't have to as I'm on a really tight budget. (I know its only £6 for a tube of the best stuff but I'd rather not if I don't have to.)
Asked by: Bigmekkmatt
In a tube thermal paste comes with this cooler
Answered by: cash35
Date published: 2015-12-13

Can it cool a FX 9370?

I understand that this cooler will not keep this beast of a processor cool, however will it be suitable until I am able to purchase a H110i Gt as I am currently only able to afford the processor and motherboard and I already have this cooler in my current system so will I be able to use it in the mean time? Thanks.
Asked by: JJJB
I think so it has dropped my temps by 20 oC and i have an i7-4790k which i am overclocking to 5 Ghz and the temps never go above 80 oC, without this i was unable to overclock as the system kept shutting down as the temps would rocket to 100 plus.
Answered by: cash35
Date published: 2015-12-13

Am4 Compatable

i have looked at many am4 compatible coolers but all need an extra adapter. does this one come with the adapter or not? or does it not need one.
Asked by: heather00
Hello, This should be compatible out of the box for AM4. Regards,
Answered by: LizN
Date published: 2017-05-15

Is it suitable for overclocking?

I have a i5 4690k and I was wondering if the CPU cooler would be enough to overclock it decently and if its not can I have some suggestions? thanks The max height of the cooler is 148.5 mm
Asked by: M1ke
yes, i have an i7-4790k and thius cooler has dropped my temps by 20 oC on average when overclocking. The chip never goes above 80 oC even when i have it running at over 5Ghz
Answered by: cash35
Date published: 2015-12-13
