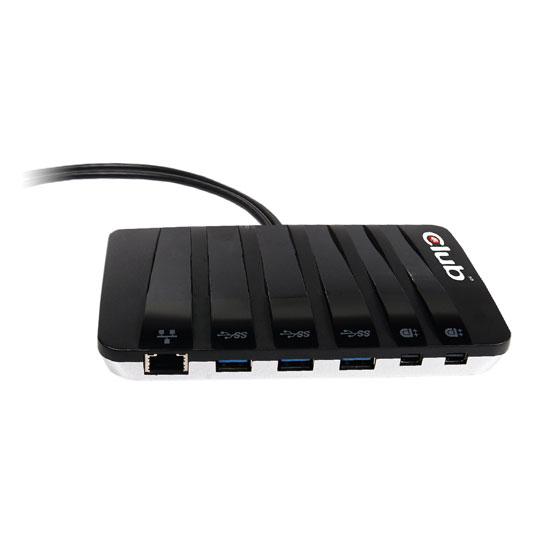

Club3D SenseVision Y-Cabled USB 3.0 Docking Station
Club3D SenseVision CSV-3203 Y-Cabled USB 3.0 Docking Station 2x Mini DisplayPort/Gigabit Ethernet/3xUSB3
By DPD On 22nd Mar 2019
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Y-Cabled docking station can easily be connected to your Laptop/Tablet and enable connectivity to a full range of peripherals.
It has built-in three USB3.0 ports, two MiniDisplayPort outputs and one Ethernet 10/100/100 port. You can even extend the connections of the USB ports as well as the MiniDisplayPort even further to add more periphirals and/or screens. The connected monitors can be configured to either mirror your primary screen, or extend the Windows desktop allowing visibility of more applications at the same time. No more stacking windows within the confines of a single display.
The biggest advantage for designers, gamers or anyone is an increase of productivity having multiple screens.
A study done by the Jon Peddie Research, productivity increases an average of 42% when using multiple displays.
Ultrabooks or Apple Macbook an other slim notebook computers are sleek but they lack enough ports for connectivity. As a result, by constantly plugging and unplugging peripherals to connect to the devices you need it becames a tiresome job. With Club 3D Y-Cabled Docking station you have access to all your devices through just a single USB 3.0 cable and a Mini DisplayPort.
Get even more from your Surface Pro 2 tablet with its powerful DisplayPort output.
Microsoft Surface Pro 2 has a powerful 4th Generation Intel Core i5 and with the Club 3D MST Hub is capable to drive up to 2 external displays
At 1.95 cm it's one of the slimmest Y-Cabled Docking Stations. Designed for easy portability and fantastic for your mobile lifestyle.
The Club 3D Y-Cabled Docking Station features a scan button for attached displays through the Mini DisplayPort
Features • Y-Cabled docking station can easily be connected to your Laptop/Tablet and enable connectivity to a full range of peripherals
• It has built-in three USB3.0 ports, two Mini DisplayPort outputs and one Ethernet 10/100/100 port. You can even extend the connections of the USB ports as well as the Mini DisplayPort even further to add more peripherals and/or screens.
• With a single USB 3.0 and a Mini Display port available you can now drive two 2560x1600 60Hz displays and 3x USB 3.0 for attached peripherals
• Power light: Power indicator
• Network: 1x Ethernet RJ45 10/100/1000 port
• Video: 2x Mini DisplayPort 1.2
• AC adapter: DC 19.5V power
• Standard compliance: Support DisplayPort 1.2, 1.1a, VESA DDM standard, HDCP 2.0, DisplayID and EDID 1.4
• Main link rates: 5.4 bps(HBR2), 27 bps(HBR) and 1.62 bps(RBR) from source
• 1/2/4 lanes of main link for RX side
• DP++ output ports or two dual-link DVI ports, or the combination of ports
• DP 1.2 MST Multi video/audio streams
• 1.1 source, ViewXpand supported
• DP-DP bypass mode
• AUX-CH enables SBM and I2C mapping over AUX between the source/sink and device
• Dedicated I2C slave for main processor to access device
• Resolution up to [email protected] each monitor in DP 1.2 MST and up to FHD/1080p in DP1.1 or DP 1.2 SST
• Input pixel data depth 6/8/10/12 bits and supports output pixel format RGB 444
