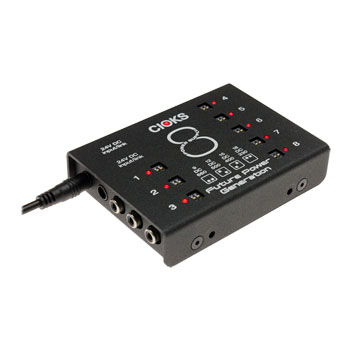

CIOKS 8 24v DC Link Switch Mode Power Supply Kit
CIOKS 8 - Expander Pedal Power Supply, 8 isolated DC-outlets, 9v, 12v 15v,18v
- By DPD On 19th May to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
Power Supply Expander
CIOKS - '8'
4 switchable voltages!When the revered CIOKS ‘DC7’ was finally released unto the world, it caused people to sit up and take notice in the PSU world, and for good reason! Thanks to its revolutionary low-profile, low weight and high output connectivity, the ‘DC7’ quite rightly cemented its position as the premier PSU for pedalboards the world over. Now, with the new ‘8 Expander’, the range has grown to offer pedal devotees even further low noise power options.
CIOKS ‘8’ the company’s largest switch-mode power supply extender. ‘8’ isn’t only the perfect accompaniment to the CIOKS ‘DC7’ (via the DC7’s 24 V outlet), but it’s also able to be utilised and offer clean power from other PSUs which have a 24 V DC outlet.
Amazing Features!

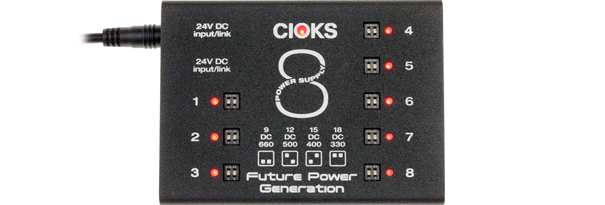

• 8 isolated DC-outlets
• Global overload status LED
• Ground-breaking low profile and weight
• Ultra-low noise achieved by multi-stage filtering
• Independently selectable voltage on each outlet (9, 12, 15 or 18 V)
• Mounting hardware for Pedaltrain and Templeaudio boards included
• Designed in Denmark, assembled in Poland
Power a Further 8 Pedals!
Upto 660 mA!With its eight additional outlets, individually selectable between 9, 12, 15 and 18V DC, each outlet can deliver up to a staggering 660 mA! To use CIOKS 8 as an extension to DC7, simply use the included DC Link cable to connect the CIOKS 8 to the courtesy 24V outlet on your DC7 and you are good to go.
In case you want to use CIOKS 8 as a stand-alone power supply you can power it with any 24V DC adapter with the appropriate DC plug. To get the full 6W output power on all 8 isolated outlets, the adapter used to power CIOKS 8 should have an output power of 60W.
CIOKS - '8'
An Introduction...
CIOKS
'Power supplies for effect pedals'In this video, the guys at CIOKS introduce the third product in CIOKS Future Power Generation range - CIOKS 8 power supply for effect pedals. CIOKS '8' is made to be used as an expander to CIOKS DC7 power supply providing 8 isolated outlets more to the existing 7 on the DC7 unit.
In the video, CIOKS show how to use the '8' with DC7 power supply and also how to use two or even three CIOKS 8 units all powered by a single DC7!
The Tech Spec
| Features | Specification | Input/Through | Dual 24 V DC |
|---|---|
| Outlet 1-8 | 9 V DC / 660 mA or 12 V DC / 500 mA or 15 V DC / 400 mA or 18 V DC / 330 mA each |
| Output power | max. 48 W in total |
| Flex cables included | Total of 12 Flex cables, all 2.1mm (BOSS standard), are included. |
