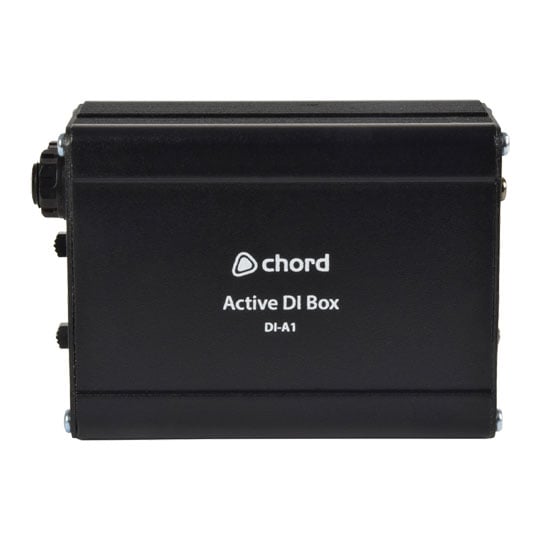

Chord - Active Direct Injection Box
Active DI Box
No compromise signal conversionThe Chord active direct injection box is an active DI box that converts high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Featuring an internal buffer amplifier that boosts the signal and avoids losses in long cable runs and includes a 3-way pad switch for level matching. The Ground-Float-Lift selector allows for signal ground isolation with or without RF/mains filtering.
at a glance
• Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptor
• Ground float option for ground lift with RF/mains filter
• Ground lift option isolates signal ground without filter
• 3 pad settings for level matching
The Tech Spec
| Features | Specification | Power supply | 9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power |
|---|---|
| Input | 6.3mm jack (unbalanced) |

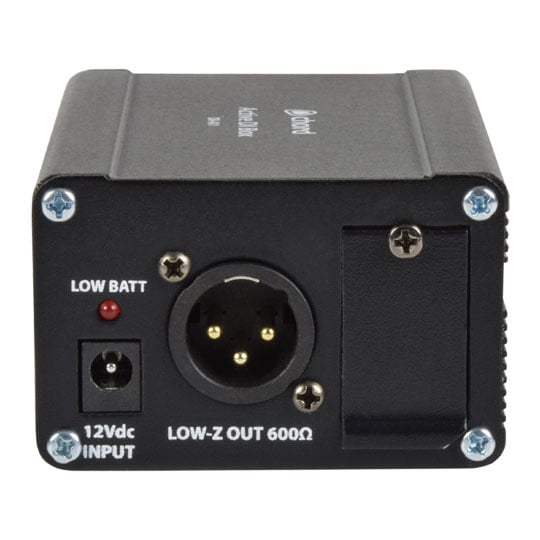

| Outputs | XLRM (balanced), 6.3mm jack through (unbalanced) |
| Input impedance | >100k Ohms |
| Output impedance | 600 Ohms |
| Controls | 0/-20/-40dBu pad & Ground-Float-Lift switch |
| Dimensions | 103 x 70 x 45mm |
| Weight | 243g |
