CalDigit Thunderbolt 4 Docking Station w/ 2GbE, 8K Display & 98W Charge
18-Port CalDigit TS4 Thunderbolt 4 Dock, 3x TB4 (40Gbps), 5x USB-A, 3x USB-C (10Gbps), 2.5GbE, Single 8K/Dual 6K, 98W PD
Email me when the availability or price changes
Thunderbolt Station 4 | TS4
The iconic Thunderbolt Station is back, now in its 4th iteration, featuring the classic design first introduced by CalDigit. Not only is the TS4 the most powerful dock ever created, the dock with the most ports, the dock with the highest charging capabilities, the first dock with 2.5GbE, it is the dock that will drive us into the Thunderbolt 4 generation.
Universally Compatible
Having the ability to use the TS4 on any Type-C computer or tablet is incredibly convenient. Compatible with Thunderbolt 4, Thunderbolt 3, USB4, and USB-C computers, the TS4 adapts to the host computer it connects to, providing the features available to your computer or tablet.
Fast & Consistent Charging
When it comes to laptop charging the TS4 provides up to 98W of sustained power delivery at all times thanks to the inclusion of a power supply that is more than capable of maintaining a consistent level of power. Whilst many other Thunderbolt 4 docks state that they can charge at up to 96W, or above, they actually include an insufficient power supply. These docks will allocate host power based on how many devices are connected to them. Some of the host power will move to newly attached devices, thereby reducing the power delivery. Rest assured that the CalDigit TS4’s power supply will always provide the full 98W power delivery, and will never drop that performance even when new devices are connected to the TS4.
Thunderbolt 4/USB4 Ports
The TS4 features three Thunderbolt 4/USB4 ports with 40Gb/s performance. One of the ports is used as the host connection to the laptop, and the two remaining ports can be used to connect Thunderbolt 4, Thunderbolt 3, USB4, or USB-C devices to the TS4. This includes monitors, SSDs, hubs, and much more.
8 USB Ports
With 8 USB ports on the TS4, a mixture of USB-A and USB-C, you have plenty of port connectivity to connect your USB accessories. All of the USB ports on the TS4 offer 10Gb/s performance.
20W USB-C Port
One of the front-facing USB-C ports can supply up to 20W of power for your attached USB-C device. This is ideal for accessories that require more power, such as Apple’s MagSafe wireless charger.
Single 8K or Dual 6K 60Hz Displays
When it comes to connecting a monitor the TS4 offers outstanding visual clarity. If you’re looking to add a single monitor to the TS4 you can either connect it to the DisplayPort connector or to one of the spare Thunderbolt 4 ports. If you wish to connect a HDMI monitor you can either connect an Active DisplayPort to HDMI Adapter, or use a USB-C to HDMI Adapter.
2.5 Gigabit Ethernet
The TS4 is a dock that provides a lot of unique features, and that is certainly the case with the inclusion of 2.5GbE. 2.5GbE is 2.5x faster than traditional Gigabit Ethernet, and is becoming the new standard for routers, switches, and NAS devices. Of course, you can use the 2.5GbE port on the TS4 with traditional 1GbE Ethernet devices.
Offline Charging
The front USB-A port, all of the USB-C ports, and two of the rear USB-A ports on the TS4 provide offline charging. This function allows those specific ports the ability to charge your USB devices, such as phones and tablets, even when the TS4 is not connected to a host device.
3x Audio Ports
Some people prefer to connect their headphones to the front of a dock for easy convenience, whilst others prefer to have them plugged into the back of a dock to keep their workflow cleaner. The TS4’s two audio output ports, one on the front and one on the back, cater for either scenario. The back of the device also offers an audio input port for connecting a microphone.
Kensington Security Lock
When you have the world’s most powerful dock you need to make sure no one takes it from your desk! The TS4’s Lock allows you to secure the dock with a Kensington for added protection.
Apple SuperDrive
Devices such as the Apple SuperDrive are recommended by Apple to be directly connected to a laptop as they require extra power. CalDigit has developed a driver for the SuperDrive so that it can be directly connected to the TS4.

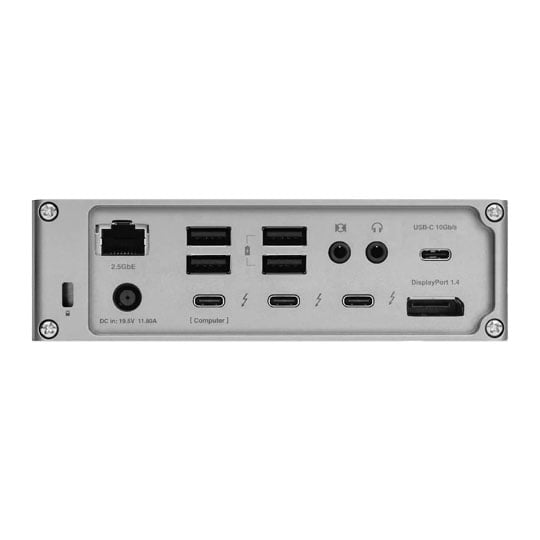

Rear Host Port
Most generic Thunderbolt 4 docks feature a front host Thunderbolt port which results in messy cable management. The TS4’s unique rear Thunderbolt 4 host port features a more elegant solution for a clean desktop experience.
Features
Interface
• 3 x Thunderbolt 4 (40Gb/s)
• 3 x USB-C (10Gb/s)
• 5 x USB-A (10Gb/s)
• 1 x DisplayPort 1.4
• 1 x SD 4.0 (UHS-II)
• 1 x microSD 4.0 (UHS-II)
• 1 x 2.5 Gigabit Ethernet
• 1 x Front Combo Audio In/Out (3.5mm)
• 1 x Rear Audio Out (3.5mm)
• 1 x Rear Audio In (3.5mm)
• 1 x DC In (19.5V 11.80A)
Minimum System Requirements
• macOS 11.4 (Big Sur) or above
• Windows 10 (20H2) or above
• Thunderbolt 4 Computer
• Thunderbolt 3 Computer
• USB-C (USB4) Computer
• USB-C Computer
• Chromebook (Thunderbolt or USB-C)
• iPad Pro/iPad Air/iPad mini (Thunderbolt or USB-C)
• Windows Tablet (Thunderbolt or USB-C)
Power Delivery
• Thunderbolt 4/USB4 Host Port: Up to 98W (5V, 9V, 15V/3A, 20V/4.9A)
• Each Downstream Thunderbolt 4/USB4 Port: 15W (5V/3A)
• Front 20W USB-C Port: 20W (5V/3A, 9V/2.22A)
• Remaining USB-C Ports: 7.5W (5V/1.5A)
• USB-A Ports: 7.5W (5V/1.5A)
Size & Weight
• Height: 141.0mm
• Width: 42.0mm
• Length: 113.0mm
• Weight: 640g
In the Box
• 1 x CalDigit TS4
• 1 x Thunderbolt 4 Cable (0.8m)
• 2 x Rubber Feet Strips
• 1 x Power Cord
• 1 x Power Supply (230W)
