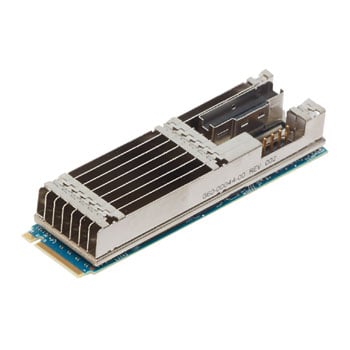

Broadcom MegaRAID 9524-8i SAS / SATA / NVMe PCIe 4.0 M.2 Form Factor Storage Adapter
Broadcom 8-Port 9524-8i RAID Storage Adapter, PCIe 4.0 x8, Tri-Mode SerDes, 1 x SlimSAS (SFF-TA-8654), RAID 0 / 1 / 10
Email me when the availability or price changes
Finance this product
- From £12.50 / month (APR 0%) for 24 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Suggested Alternatives
16 Port Broadcom MegaRAID 9580-8i8e RAID Controller, PCI-E 4.0 x8, Slim-SAS (SFF-8654)/SATA III, Low ProfileBroadcom MegaRAID SAS/SATA 16 Port PCI-E 4.0 RAID Controller
LN119446
No customer reviewKey Specifications
- 16 Port Broadcom MegaRAID 9580-8i8e RAID Controller
- PCI-E 4.0 x8
- Slim-SAS (SFF-8654)/SATA III
- Low Profile
£1,185.98Pre order
8 Port Broadcom 9500-8i Tri-Mode Storage Adapter, PCIe Gen 4.0, 1 x8 SFF-8654, SAS/SATA/NVMe, 12 Gb/sBroadcom 9500-8i Tri-Mode Storage Adapter
LN140453
No customer reviewKey Specifications
- 8 Port Broadcom 9500-8i Tri-Mode Storage Adapter
- PCIe Gen 4.0
- 1 x8 SFF-8654
- SAS/SATA/NVMe
- 12 Gb/s
£331.49Get it Tomorrow, 29 SepIn stock

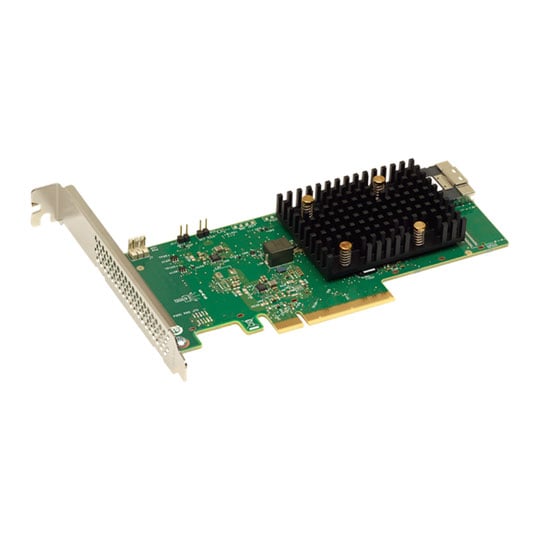

Broadcom MegaRAID 9520-8i RAID Adapter, PCIe 4.0 x8, Tri-Mode SerDes, 1 x SlimSAS (SFF-TA-8654), RAID 0 / 1 / 10Broadcom MegaRAID 9520-8i PCIe 4.0 Tri-Mode RAID Adapter Card
LN161824
No customer reviewKey Specifications
- Broadcom MegaRAID 9520-8i RAID Adapter
- PCIe 4.0 x8
- Tri-Mode SerDes
- 1 x SlimSAS (SFF-TA-8654)
- RAID 0 / 1 / 10
£332.48ETA 1-3 days
Broadcom MegaRAID™ 9524-8i PCIe Gen 4.0 Adapter
The 9524-8i is Broadcom’s first M.2 form factor storage adapter. The adapter fits M.2 slots, providing support for up to eight drives leaving free the PCIe slot for higher performance applications.
Leveraging Broadcom’s MegaRAID iMR entry RAID firmware, the 9524-8i supports JBOD mode and RAID 0, 1 and 10 without requiring the Reserved Memory Region Reporting (RMRR) structure. The MegaRAID 9524-8i is powered by the SAS3808N on-chip memory to carry out the RAID and other necessary operations and allows for easy integration into system architectures that do not have a memory reservation capability to support a traditional iMR solution.
The adapters' Tri-Mode SerDes technology negotiates between speeds and protocols to seamlessly to enable the operation of NVMe, SAS or SATA devices in a single drive bay getting the most performance and flexibility out of any drive protocol.
• Connect up to 16 SAS/SATA or 2 NVMe drives
• Balance protection and performance for critical applications with RAID 0, 00, 1, 10
• Support critical, high-bandwidth applications with PCIe 4.0 connectivity
• Advanced security through hardware secure boot
