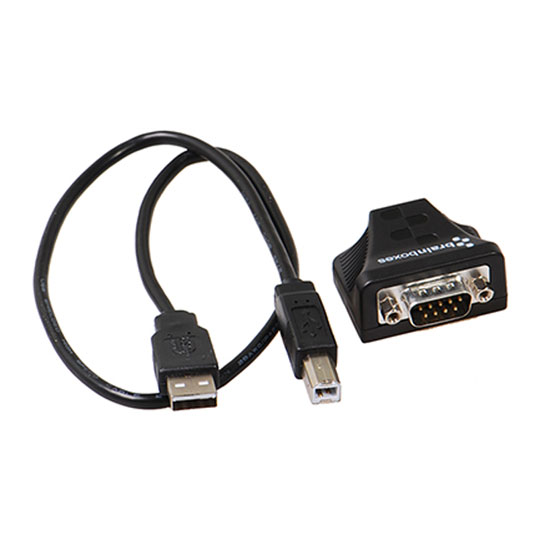

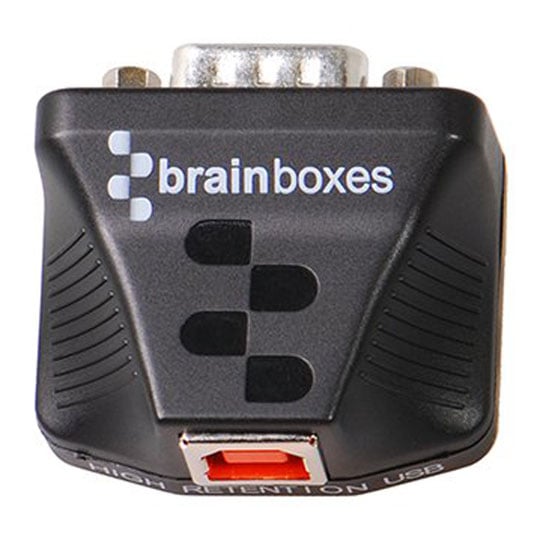

Ultra Compact USB to RS232 Serial Adaptor

Brainboxes US-235, Ultra 1 Port RS232 USB to Serial Adapter, Tough, Compact, Full Spectrum of Baud Rates upto 921,600

Thumbnail 1 : Ultra Compact USB to RS232 Serial Adaptor Thumbnail 2 : Ultra Compact USB to RS232 Serial Adaptor Thumbnail 3 : Ultra Compact USB to RS232 Serial Adaptor Thumbnail 4 : Ultra Compact USB to RS232 Serial Adaptor
Scan code: LN64227 Manufacturer code: US-235
£46.99Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Tough ultra small USB to serial adapter suitable for any environment. The closest you can get to an integrated serial port. High retention USB connector for an unbreakable connection.

Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values.

Brainboxes provide their our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution.

Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8 with additional drivers for Raspberry Pi, Mac OS X and Linux. Features • 1 Port RS-232 USB to Serial Adapter
• High Retention USB connector with 50cm USB cable
• Smallest form factor USB to Serial
• Industrial Specification

Technical Specifications:

Housing and Connectors:
• IP-50 rated non-conducting polyamide case
• DB9 Connector - 9 Pin Male
• High Retention USB Connector
• Wall mounting screw recess

Environmental:
• Operating Temperature: -40°C to +80°C/-40°F to +176°F

Power Supply:
• Power Consumption: 50mA @ 5V
• Power Supply input: +5V through USB cable (supplied)

Port Settings - RS232:
• Baud Rate: From 110 - 1 MegaBaud - Any custom Baud rate accepted
• Data Bits: 5,6,7 or 8
• Parity: Odd, Even, None, Mark or Space
• Stop Bits: 1 or 2
• Flow Control: RTS/CTS, DSR/DTR, XON/XOFF
• Tx/Rx Modes: Point to Point
Specifications
Interface USB 2.0
Connectivity 1 x RS232
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
