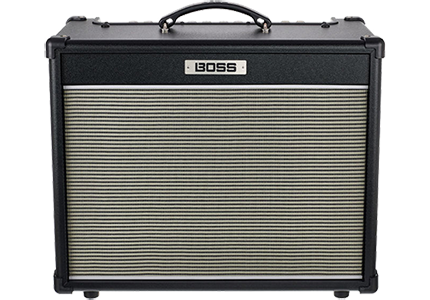

Boss Nextone Stage Guitar Amplifier

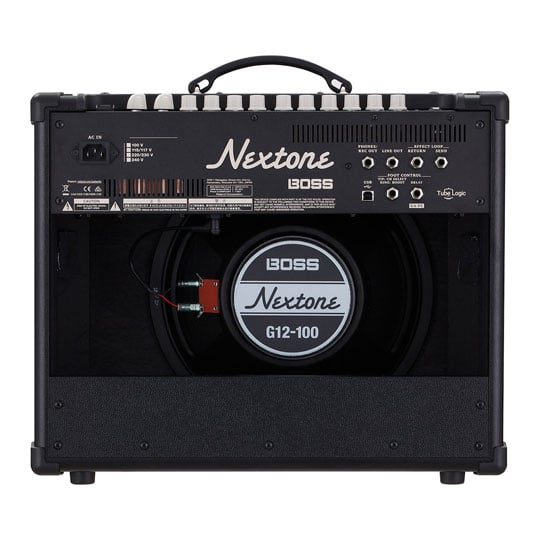

Boss Nextone Stage Guitar Amplifier, 40 Watts, 12-inch Speaker

Thumbnail 1 : Boss Nextone Stage Guitar Amplifier Thumbnail 2 : Boss Nextone Stage Guitar Amplifier Thumbnail 3 : Boss Nextone Stage Guitar Amplifier Thumbnail 4 : Boss Nextone Stage Guitar Amplifier
Scan code: LN97160 Manufacturer code: NEX-Stage
£411.00Item due on 22 December 2021
Due 22nd Dec
FREE DELIVERY ON YOUR ENTIRE BASKET
From £19.73 / month (APR 14.9%)
Monthly Payment: £36.90
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £411.00
Total inc. interest: £442.73
Monthly Payment: £19.73
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £411.00
Total inc. interest: £473.43
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.27 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Boss - 'Nextone Stage'
40 Watt Guitar Amplifier

boss nextone stage

Four Power Stages With Unlimited ExpressionJoining together classic tube sound and feel with modern tonal diversity, the BOSS Nextone series presents exciting new ideas in professional guitar amplification. Iconic channel voicings provide a wide range of inspiring tones, while four selectable Class AB analog power amp types deliver instant access to the unique characteristics of 6V6, 6L6, EL84, and EL34 output tube sections. Supported by advanced Tube Logic technology, each power amp type re-voices the entire circuit from input to output and for the first time ever, putting the complete sonic experience of these signature power stages all in one amp.

For diving deeper with further sound customization, just connect to the Nextone Editor and become a virtual tech, fine-tuning bias, sag, EQ, and other internal settings to perfectly suit your unique style and touch. Nextone also comes with modern features to make live playing easier, such as built-in effects, a line out for mic-free direct tone, and a power control for expressive cranked-amp sound at lower volumes. Thanks to Tube Logic, you can enjoy all the great sound and response of your favorite tube designs without the continuous maintenance and hassle.

Version 2 firmware gives you a range of new tone personalization options using the Nextone Editor. A key feature is Character Shape, which gives you designer-level sound control right at the heart of the power amplifier. Along with this, separate pre/post preamp EQs are now available (including a new 10-band graphic), seven boost types have been added, and effects can be set individually for custom mode channels. There’s also a selectable Extra Headroom setting for extra punch. With new import/export and librarian functions, working with your different Nextone setups is easier than ever.

Amazing Features • Professional performance amplifier with authentic Tube Logic tone
• Four analog Class AB power amp circuits, selectable from the panel: 6V6, 6L6, EL84, and EL34
• Dynamically responsive power control for cranked-up sound and response at reduced volumes

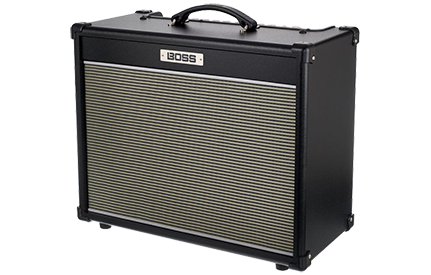

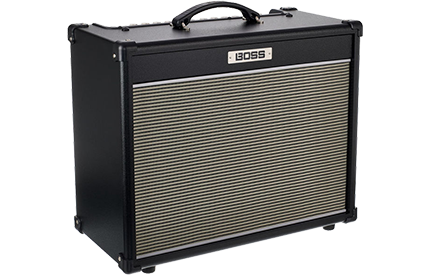

• Streamlined combo design with 40 watts of power and custom 12-inch speaker
• Clean and lead channels, with standard and custom mode options

Next-Generation Guitar Amplification

boss nextone stage

Reliable PowerEach driver features its own dedicated amplifier. The 50W A/B amp is responsible for the X-ART tweeter, whilst the midwoofer is being powered by a 100W PWM amp.

The front panel has a power switch and a control for the volume that maintains the volume setting separately from the on/off switch. On the back panel you’ll find additional controls: gain for the high frequencies (± 4dB) and two shelf filters for high and low frequencies.

Instant Power Amp Re-Voicing

boss nextone stage

Access To Multiple Tonal CharacteristicsIn a tube-based guitar amplifier, the preamp is crucial for basic tone shaping, although it’s the power amp design that really defines the overall unique sound and playing feel. Most amps use a specific output tube type, while the ability to swap out different power tubes is uncommon. Unfortunately, this process usually requires physical tube replacement and bench time with a tech, making it expensive and time consuming. In most cases, you need to buy multiple amps to access the unique tonal characteristics of different output tube sections… until now.

Nextone changes this with the ability to instantly re-voice its analog Class AB power amp section with one of the four classic designs. American sounds are found with 6V6 and 6L6 output tube types, while British sounds are made with EL84 and EL34 types. Unlike modeling amps, which just feed pre-cooked amp models through a non-reactive amplifier, selecting a power amp type on the Nextone physically changes the complete output circuitry, as well as the way the preamp and speaker interacts with it. This makes the entire amp perform honest tones at each setting, providing realism that’s only possible with advanced Tube Logic technology.

Cranked Sound at Lower Volumes

boss nextone stage

Constant CharacteristicsWith any tube amp, you really need to push its output tubes to get the best possible tone. Unfortunately, this means turning up the volume, which is often frowned upon by sound engineers, bandmates, and neighbors.

Driven by Tube Logic, Nextone delivers the complex distortion characteristics of output tubes and their interaction with the output transformer and speaker, delivering that rich, dynamically responsive sound we know and love.

With Nextone’s adjustable power control, you can always experience this cranked-amp tone while matching the volume to any situation, be it home, studio, or stage.

Customize Tones for Your Style & Touch

boss nextone stage

Be Your Own Amp TechNextone features a dual-channel design with clean and lead channels plus a shared three-band tone stack and presence control. Boost and Tone switches are on hand too, allowing you to add some extra gain and bite as you wish. With the press of a button, you can switch the amp into custom mode, which offers factory-tweaked variations of the standard clean and lead channels. The custom mode channels can also be fine-tuned to your liking with the Nextone Editor software.

Using a friendly interface, the Nextone Editor gives you further editing tools to refine the sound to perfectly suit your personal taste and favorite pedals. Set a channel’s tone stack to American or British types, shape the overall tone with a powerful channel EQ, and even shape the playing response by adjusting bias, sag, and more. The Tone switch can be set to two different types, and the Boost switch can be set for different characters or even be assigned as a compressor. A system-wide EQ is also available, allowing you to define the tonal balance of the entire amp. And with 99 different user setups available, you’re able to customize Nextone’s sound for every gig setting you come across.

Onboard Effects & Switchable Effects Loop

boss nextone stage

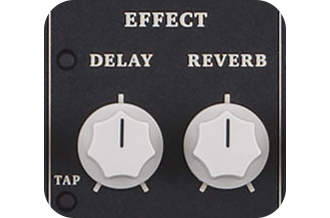

More Versatility & ConvenienceFeaturing built-in delay, reverb, and tremolo effects, Nextone brings extra versatility and convenience to live playing guitarists. Using the Nextone Editor, the delay section in custom mode can be assigned freely to analog, tape, or SDE-3000 delay types or a tremolo effect, while the reverb can be assigned to plate, spring, or hall types.

Each effect type offers a deep set of parameters for dialing in you ideal tone. The amp also comes with a loop for integrating your own effects, with series/parallel operation, loop position, and more selectable using the Nextone Editor.

Practical Features for Performance & Recording

boss nextone stage

Additional Tonal OptionsWith just a single cable, connecting the optional GA-FC foot controller gives you a command center for channel selection, Tone, Boost, effects, pedal volume, and more. For even lighter travel, up to three FS-series footswitches can be used to control multiple functions. There’s also a line out for sending a direct signal to a PA, plus a phones/recording output for silent practice and tracking sessions. Using the Nextone Editor, the characteristics of the direct sound can be changed to one of three Air Feel settings for a range of mic’d cab tones.

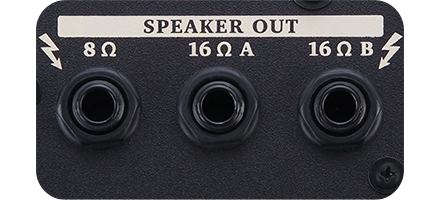

External speaker jacks are included too, with support for connecting up to two 16-ohm 4x12 cabs for even bigger tones. As well as providing communication with the Nextone Editor, the amp’s USB jack works as a direct recording interface for your favorite DAW software. Multiple channels are supported, meaning you can record both a cab-emulated output and a dry direct tone for re-amping later through the Nextone.

BOSS Nextone Overview by Peter Honoré & Chris Buck

The Tech Spec

Features Specification
Rated Power Output 40 W
Nominal Input Level INPUT: -10 dBu (1 M ohm)
RETURN IN: -10 dBu (100 k ohm)
Speaker 30 cm (12 inches) x 1

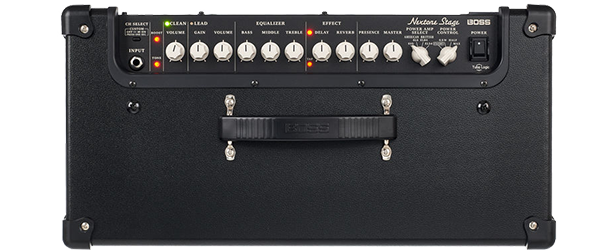

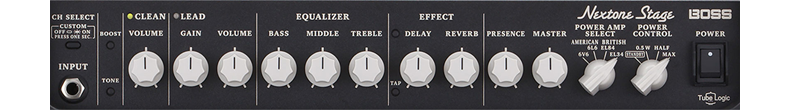

Controls CH SELECT button
BOOST button
TONE button

[CLEAN]
VOLUME knob

[LEAD]
GAIN Knob
VOLUME knob

[EQUALIZER]
BASS knob
MIDDLE knob
TREBLE knob

[EFFECT]
DELAY button
TAP button
DELAY knob
REVERB knob

PRESENCE knob
MASTER knob
POWER AMP SELECT switch (6V6, 6L6, EL84, EL34)
POWER CONTROL switch (STANDBY, 0.5 W, HALF, MAX)
POWER switch
Indicators CLEAN
LEAD
CUSTOM MODE
BOOST
TONE
DELAY
TAP
Connectors INPUT jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch phone type
SPEAKER OUT 16 ohms A jack: 1/4-inch phone type
SPEAKER OUT 16 ohms B jack: 1/4-inch phone type
SPEAKER OUT 8 ohms jack: 1/4-inch phone type
CH SELECT/BOOST jack: 1/4-inch TRS phone type
DELAY/GA-FC jack: 1/4-inch TRS phone type
USB port: USB B type
AC IN jack
Power Consumption 37 W
Accessories Owner' s manual
Power cord
GA-FC sticker
Dimensions Width: 492 mm
Depth: 248 mm
Height: 427 mm
Weight 13.4 kg / 29 lbs 9 oz
Specifications
Wattage 40 W
Built-in Effects Yes
Effects
  • Delay
  • EQ
  • Reverb
Number of Tweeters 0
Number of Speakers 1
Speaker Size (Inches) 12 "
Lowest Impedance
Additional Information
Scan Code LN97160
Model Number NEX-Stage
GTIN 4957054513122
