Boss GKC-DA Guitar Synth Converter
Boss GKC-DA Guitar Synth Converter
- SCANPROTECT Protect against installation damage for 28 days. More info

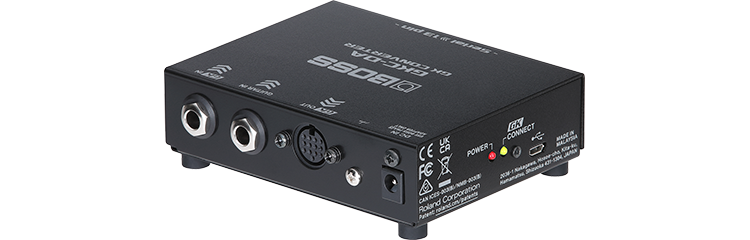

BOSS - GKC-DA GK Converter
(SERIAL to 13 PIN)
Drive BOSS and Roland 13-Pin GK Devices from the Next-Generation Serial GK InterfaceThe latest BOSS guitar synthesizer products feature the Serial GK digital interface, a newly developed connection method that delivers evolved performance over the analog 13-pin GK interface used in earlier BOSS and Roland guitar synth and modeling products. The GKC-DA GK Converter allows you to drive a 13-pin GK device such as the BOSS SY-1000 or GP-10 using the Serial GK output on a GK-5 or GK-5B Divided Pickup or the GM-800 Guitar Synthesizer.
at a glance
• Converts the Serial GK digital interface to the classic 13-pin analog GK interface
• Serial GK input and 13-pin GK output
• Instrument input for passing normal guitar/bass pickup sounds to the 13-pin output
• Compact and rugged metal design
The Tech Spec
| Features | Specification | Connector | GK IN jack: 1/4-inch TRS phone type (for BGK cable only) GK OUT connector: 13 pins DIN type GUITAR IN jack: 1/4-inch phone type DC IN jack USB port: USB Micro-B (program update only) |
|---|---|
| Nominal Input Level | GUITAR IN: -10 dBu |
| Maximum Input Level | GUITAR IN: +16 dBu |
| Indicators | POWER indicator GK CONNECT indicator |
| Current Draw | 390 mA |
| Dimensions | 115(W) x92 (D) x 36 (H) mm 4-17/32 (W) x 3-5/8 (D) x 1-7/16 (H) inches |
| Weight (excluding AC adaptor) | 340 g |
