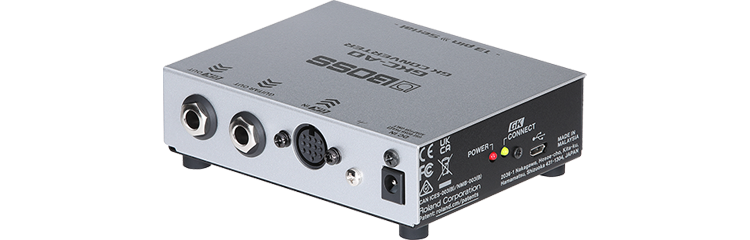

BOSS - GKC-AD GK Converter
(13 PIN to SERIAL)
Drive the next-generation BOSS Serial GK interface from a Roland GK-3 or GK-3B Divided PickupThe latest BOSS guitar synthesizer products feature the Serial GK digital interface, a newly developed connection method that delivers evolved performance over the analog 13-pin GK interface used in earlier BOSS and Roland guitar synth and modeling products. The GKC-AD GK Converter allows you to drive the Serial GK input on the GM-800 Guitar Synthesizer from a Roland GK-3 or GK-3B Divided Pickup or an instrument equipped with a 13-pin GK output.
at a glance
• Converts analog 13-pin GK pickup systems to the newly developed Serial GK digital interface
• 13-pin GK input and Serial GK output
• Instrument output for passing normal guitar/bass pickup sounds embedded in the 13-pin connection
• Compact and rugged metal design
The Tech Spec
| Features | Specification | Connector | GK IN connector: 13 pins DIN type GK OUT jack: 1/4-inch TRS phone type (for BGK cable only) GUITAR OUT jack: 1/4-inch phone type DC IN jack USB port: USB Micro-B (program update only) |
|---|---|
| Nominal Output Level | GUITAR OUT: -10 dBu |
| Recommended Load Impedance | GUITAR OUT: 10 k ohms or greater |
| Indicators | POWER indicator GK CONNECT indicator |
| Current Draw | 240 mA |
| Dimensions | 115(W) x92 (D) x 36 (H) mm 4-17/32 (W) x 3-5/8 (D) x 1-7/16 (H) inches |
| Weight (excluding AC adaptor) | 340 g |
