Scan code: LN112828 Manufacturer code: DI-1

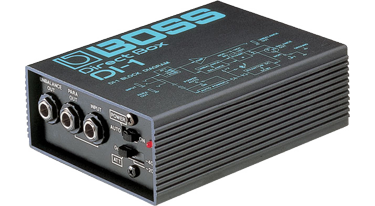

Boss DI-1 Professional Direct Box

Boss DI-1, High Quality Active DI Box, Phase reversal and ground lifting switches, Three input level switches

Thumbnail 1 : Boss DI-1 Professional Direct Box Thumbnail 2 : Boss DI-1 Professional Direct Box
Scan code: LN112828 Manufacturer code: DI-1
£87.00
FREE DELIVERY ON YOUR ENTIRE BASKET
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th Jul to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Active Direct Box
BOSS - 'DI-1'

4K Recording

high-quality direct boxThe ‘DI-1’ from BOSS is a professional active direct box with staggeringly clear sound for transforming high impedance, unbalanced instrument outputs to the low-impedance, balanced inputs of your chosen mixing console.

The DI-1 features ground-lift, phase-reverse switches and an input attenuator. The typical tough BOSS housing also ensures the DI-1 is more than suited to live application too alongside studio use!

at a glance • Active direct box with superior frequency responce to conventional transformers
• Operates on a 9-volt battery or phantom power from a mixer
• Phase reversal and ground lifting switches
• Three input level switches
• Sturdy, compact design

The Tech Spec

Features Specification
Type Active
Input Connections 1 x 1/4" TRS phone
Output Connectors 1 x XLR
2 x 1/4" TS phone
Input Level +45 dBu @ 1kHz, 390Vp-p
Output Level +8dBu - balanced 600Ω load, unbalanced: 50kΩ
Controls Ground lift
Phase reverse
Three position attenuation switch
Frequency Response 20Hz to 40kHz, +0.5/-1.0dB
Power 9V battery or +48VDC phantom power
Dimensions (WxDxH) 3-13/16 x 4-15/16 x 1-13/16" (97 x 125 x 46 mm)
Weight 1.06 lbs (0.5 kg)
Specifications
Product Type
PC Interface N/A
Keys
Wheels
Connectivity (Input)
Connectivity (Output)
Sample Rate
Bit Rate N/A
Frequency Response (Input) 20 Hz to 40 kHz (+0.5/-1 dB)
Frequency Response (Output) N/A
Maximum Input Level 45 dBu
Maximum Output Level 8 dBu
Dynamic Range
Dimensions (mm) 97 x 46 x 125 (WxHxD)
Misc. Notes
Package Type Retail
Additional Information
Scan Code LN112828
Model Number DI-1
GTIN 4957054003784
