BOSS AC-22LX Stereo Acoustic Guitar Amplifier
BOSS - AC-22LX 10W 2x5" Stereo Acoustic Amplifier for Guitar and Vocals
Email me when the availability or price changes
Finance this product
- From £14.60 / month (APR 16.9%) for 24 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Acoustic Guitar Amplifier
BOSS - AC-22LX
A Fully Immersive Acoustic ExperienceThe BOSS AC-22LX introduces a new concept in acoustic amplification, offering a full-immersion playing experience realized through advanced BOSS spatial technology. Air Feel adds life into the dry, sterile sound of standard acoustic instrument pickups, recreating the richly detailed tones captured by classic stereo acoustic microphone setups in world-class studio settings. The AC-22LX’s inspiring voice goes much further than its compact size, infusing your amplified sound with depth, dimension, and natural acoustic resonance.
The AC-22LX delivers incredibly natural sound reproduction in a portable stereo amplifier. The compact and attractive cabinet features two custom twin-cone speakers, providing expansive stereo tones for home playing. From acoustic-electric guitar to ukulele, violin, banjo, and other pickup-equipped stringed instruments, the AC-22LX and Air Feel deliver the ultimate personal amplification experience for serious acoustic players.
at a glance
• Compact amplifier for acoustic-electric guitars and other pickup-equipped acoustic instruments
• Innovative Air Feel feature recreates stereo microphone setups, producing inspiring acoustic sound
• Guitar/Instrument channel with three-band EQ and dedicated Reverb and Reverb & Chorus effects
• Mic channel with XLR input, phantom power, two-band EQ, and dedicated Reverb effect
• Small and easy-to-carry design with two custom-designed 5-inch twin-cone speakers
Capturing Natural Acoustic Sound
Super-convenientMany elements contribute to the rich, detailed sound of acoustic stringed instruments, including the soundboard, body resonances, and more. In recording situations, stereo microphone setups are used to capture this combined sound along with the surrounding room ambience. Using a variety of time-tested techniques, an experienced audio engineer will carefully position the mics to find the right balance for a song or playing style. Unfortunately, instrument microphones are not practical for most amplified playing situations due to feedback and other issues. The Air Feel technology in the AC-22LX removes these limitations, bringing authentic studio microphone sound to acoustic amplification for the first time.
Multi-Dimensional Tone with Air Feel
Air Feel TypesMade from intensive BOSS sound research and advanced processing technologies, Air Feel transforms your pickup’s sound with acoustic richness and dimension never possible until now. Just plug in and enjoy your instrument’s natural acoustic character at performance volumes—without the need for microphones and audio engineering skills.
DryA natural and unprocessed tone that only amplifies the direct pickup sound, allowing you to hear the true tone coming directly from the guitar.
XYRecreates a coincident pair technique that uses two mics placed in an XY pattern. This focused stereo sound creates a good balance between the strings and body resonance, making it ideal for rhythmic chord strumming and muted playing.
ABRecreates a spaced-pair mic technique for a wide stereo sound with naturally expanded acoustic resonance. This big, full presentation is great for solo guitar and fingerpicking styles.
ORTFThis special stereo mic technique combines elements of the XY and space-pair approaches. It produces a focused tone with increased depth and body resonance.
Mid-SideThis classic technique produces a well-defined sound with a wide stereo spread. It adds a sense of distance, providing a nice ensemble blend with vocals and other instruments.
Powerful Sound-Shaping Tools

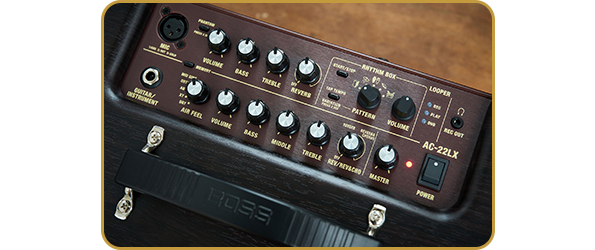

Total controlTogether with five Air Feel settings, the AC-22LX’s Guitar/Instrument channel features a three-band EQ plus reverb and combined reverb/chorus effects for extra spatial depth. The XLR Mic channel has selectable phantom power for condenser mics, plus a two-band EQ and dedicated reverb for independent processing.
With 15 onboard memories, you can save and recall setups for different songs and instruments. The AC-22LX Editor provides even deeper control, allowing you to change out reverb types, access detailed effect parameters, and much more.
Built-In Rhythms
spatial technologyThe AC-22LX includes an onboard Rhythm Box to enhance practice sessions and live performances. Five instrument types include percussion and full drum set sounds, all infused with BOSS spatial technology that fills the surrounding space with vibrant rhythmic energy.
Choose from 15 different patterns, and then set up the perfect groove with the tap tempo button. And if you need something more than the onboard selections, you can customize patterns with 119 variations in the AC-22LX Editor
Perform, Record, and Stream
Ultimate convenienceWith its versatile analogue and USB connectivity, you can send the AC-22LX’s sound output to a PA system, recorder, or streaming application, complete with Air Feel processing and spatial rhythm tones. Perform in any venue, from small clubs to concert stages.
Capture natural-sounding acoustic tracks in your DAW without needing any microphones. You can also livestream performances directly to your social media channels. The analogue line output supports mono or stereo operation, while the USB connection has a convenient Loopback function for monitoring sounds from a computer.
Expanded Performance Control
unlocks more possibilitiesThere are a range of available options to extend the AC-22LX experience. A rear-panel jack supports up to two footswitches, providing access to rhythm start/stop, control of the onboard looper, and other assignable functions in the AC-22LX Editor.
Installing the Bluetooth® Audio MIDI Dual Adaptor unlocks even more possibilities through wireless connectivity. Control extra functions with an EV-1-WL Wireless MIDI Expression Pedal or FS-1-WL Wireless Footswitch. Wirelessly stream music from a mobile device and play along. Alternatively, use the iOS/Android version of the editor for cable-free parameter control.
The Tech Spec
| Features | Specification | Rated Power Output | 10 W (5 W+5 W) |
|---|---|
| Nominal Input Level | GUITAR/INSTRUMENT: -10 dBu (10 M ohm) MIC: -40 dBu (5 k ohm) AUX IN: -20 dBu (15 k ohm) |
| Nominal Output Level | LINE OUT L/MONO, R: -10 dBu |
| Speakers | 12 cm (5 inches) x 2 |
| Controls | POWER switch MASTER knob MEMORY button USB LOOPBACK switch (GUITAR/INSTRUMENT) AIR FEEL knob (DRY, XY, AB, ORTF, MID SIDE) VOLUME knob BASS knob MIDDLE knob TREBLE knob REV/REV&CHO knob (REVERB, REVERB&CHORUS) (MIC) PHANTOM button VOLUME knob BASS knob TREBLE knob REVERB knob (RHYTHM BOX) START/STOP button TAP TEMPO/VARIATION button PATTERN knob (CAJON, SHAKER, CONGA, TAMBOURINE, DRUMS) VOLUME knob |
| Indicators | POWER PHANTOM MEMORY START/STOP TAP TEMPO/VARIATION REC PLAY DUB |

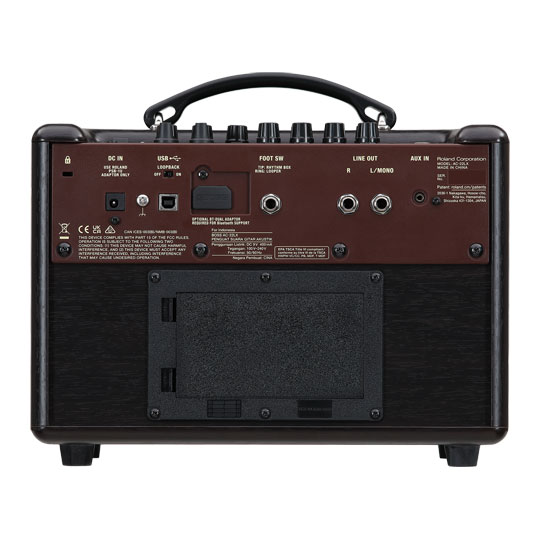

| Connectors | GUITAR/INSTRUMENT jack: 1/4-inch phone type MIC connector: XLR type, phantom power (DC 48 V, 14 mA Max) PHONES/REC OUT jack: Stereo Miniature phone type AUX IN jack: Stereo Miniature phone type LINE OUT L/MONO, R jacks: 1/4-inch phone type FOOT SW jack: 1/4-inch TRS phone type Bluetooth ADAPTOR connector: Dedicated connector USB port: USB B type DC IN jack |
| Power Supply | AC adaptor (DC 9 V) Alkaline battery (AA, LR6) x 8 Rechargeable Ni-MH battery (AA, HR6) x 8 |
| Current Draw | 400 mA |
| Expected battery life under continuous use | Alkaline battery: Approximately 8 hours
Rechargeable Ni-MH battery: Approximately 10 hours (*1) *1 When using batteries having a capacity of 2,500 mAh. * These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. |
| Dimensions | 317 (W) x 210 (D) x 265 (H) mm 12-1/2 (W) x 8-5/16 (D) x 10-7/16 (H) inches |
| Weight (excluding AC adaptor) | 4.0 kg 8 lbs 14 oz |
| Accessories | Owner's Manual Leaflet USING THE UNIT SAFELY AC adaptor Power cord |
| Options (sold separately) | Footswitch: FS-5U, FS-6, FS-7 Bluetooth(R) Audio MIDI Dual Adaptor (MODEL BT-DUAL) Wireless MIDI Expression Pedal: EV-1-WL Wireless Footswitch: FS-1-WL |
