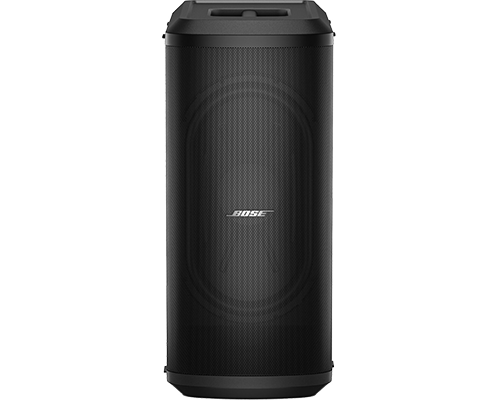

Bose - Sub2 Powered Bass Module
Bose - Sub2, Powered Bass Module, 18x10" RaceTrack Designed Driver
Powered Bass Module
Bose - Sub2
'Give your songs full impact'A powered, portable bass module, the Sub2 subwoofer from Bose combines with virtually any portable PA and delivers
low-end performance down to 37 Hz. Its unique 10" × 18" high-excursion neodymium RaceTrack driver allows
for an ultra-slim enclosure, delivering performance that rivals a traditional 15" woofer without the cumbersome
size, freeing up room in your vehicle and on the stage.
Compared to the Sub1 subwoofer, Sub2 is the more
powerful subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch
connectivity. You can stack multiple Sub2 subwoofers for even more low end — or to unleash Cardioid Mode
for directional bass. With a Sub2, you get a subwoofer that easily fits onstage — and effortlessly fills up the
dance floor
at a glance
•
Lightweight & Easy Setup

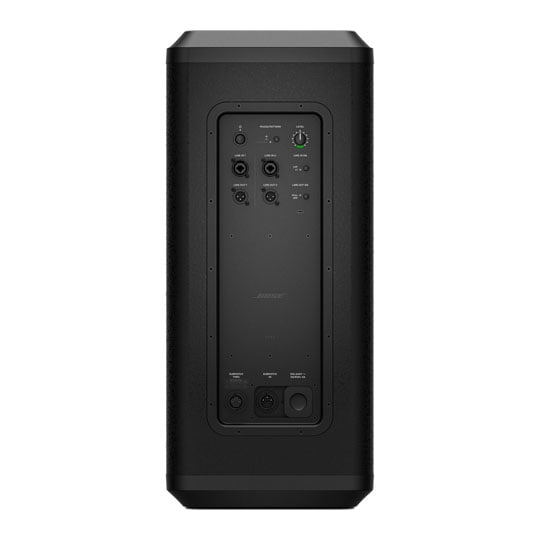

• Two Combo XLR-1/4" Inputs + XLR Outputs
• Cardioid Mode with Two Sub2 Modules
• Includes Slip Cover and Power Cord
compatibility
• L1 Pro8 Portable Line Array System
• L1 Pro16 Portable Line Array System
• L1 Pro32 Portable Line Array System
Innovative & Versatile Features
Give your songs full impactSub2 Powered Bass Module combines with virtually any portable PA to deliver low end down to 37 Hz. When paired with the Bose L1 Pro32, Sub2 plays lower and louder and gives you bold bass from slim design that goes virtually anywhere.

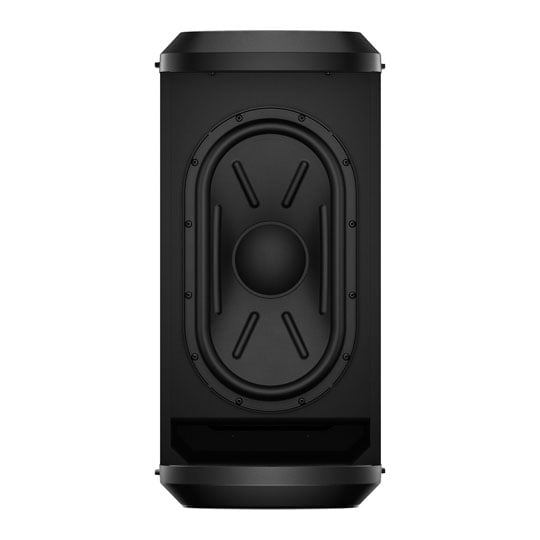

More bass. Less bulk.With a unique RaceTrack driver design, Sub2 offers powerful bass and an optimised centre of gravity. The driver’s shape allows the physical enclosure of Sub2 to be slimmer without compromising sound. This frees up room in your vehicle and on the stage, and makes every carry in between—home to car, vehicle to venue—much easier.
Focus the bass where you want itStack two Sub2 subwoofers for even more bass or to unleash Cardioid Mode for focused, directional performance that negates rear-firing bass energy, steers the bass to the front and reduces feedback.
Part of a full systemSub2 pairs seamlessly with the L1 Pro32 via proprietary SubMatch connectivity to form a modular line array system that’s easy to pack, carry and set up. This single-cable connection makes setup so much easier. It allows the system’s crossover and EQ to automatically calibrate for optimal sound, and—because power and digital audio are passed through the SubMatch cable—you only need a single power plug. Just plug in your L1 Pro32 and you’re ready to go.
The Tech Spec
Features | Specification | Configuration | Active Subwoofer |
---|---|
Enclosure Type | Bass-Reflex Line Array Subwoofer/Subwoofer |
Amplifier Power Rating | 1000 W |
Amplifier Class | Class-D |
MF Driver | None |
LF Driver | 18 x 10" / 457.2 x 254 mm Woofer |
Audio I/O | 2 x Combo XLR-1/4" 3-Pin Female Balanced Line Input 2 x XLR 3-Pin Male Balanced Line Output 1 x Proprietary Subwoofer Input 1 x Proprietary 3-Pin Subwoofer Thru |
Wireless Connectivity | Bluetooth |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Mounting | 1 x M20 Pole Socket (Side) |
Handles | 1 x Top |
Dimensions | 27.221.7 x 12" / to 55.1 x 30.5 cm |
Weight | 51.7 lb / 23.5 kg |
