Bose - L1 Pro32 Portable Line Array (With Sub2)
Bose - L1 Pro32 Portable Line Array (With Sub2), 32-Drivers, Uniform 180° Coverage Pattern
Email me when the availability or price changes
Highly Portable Line Array System
Bose - L1 Pro32 with Sub 2
'The peak of portable PA'With all the power, clarity and output of 32-driver articulated line array, the L1 Pro32 and Sub2 Powered Bass Module from Bose offers full 180-degree horizontal coverage and an incredibly focused vertical coverage pattern and highest SPL over distance in an L1 ever—providing intricate sonic detail, clarity and consistency, even off to the extreme sides in larger venues.
Perfect for DJ’s, songwriters, small bands and everything else in between, this system is a one coloumn solution for total room coverage.
what's included?
• Bose - L1 Pro32 x1
• Bose - Sub2 x1
• Bose - Slip Cover for Sub2 x1
• Carry bags x1
• SubMatch cable x1
Bose - L1 Pro32
32-driver articulated line array systemThe L1 Pro32 from Bose is a hugely portable 32-driver articulated line array system which excels in delivering articulate, pristine and precision audio. No matter if you’re at the front row or right at the back of the crowd, you’ll hear crisp and clear audio which effortlessly captures every tiny detail of the performance. The L1 Pro32 delivers bright highs and cutting mids, meaning that everyone in the audience will hear you, exactly as you wish to be heard. Perfect for bands, DJs, singer-songwriters right through to spoken word artists – The L1 Pro32 delivers.
Dialling in your desired sound couldn’t be easier. Just connect your instrument or mic and dive right into tweaking your sound to how you like it using the integrated mixer. Need to make a few last-minute adjustments? The L1 Pro32 is able to be controlled via a dedicated app on your mobile device!
128dBMax Peak SPL
180°Horizontal Coverage
L1 Mix AppApp Control
At A Glance
• 32-Driver, straight line array, uniform coverage pattern
• System EQ Presets: live music, recorded music & more
• Phantom power and bluetooth connectivity
• Tonematch port for easy mixer connection
• Built-in mixer with tonematch presets
Standout Features
180° HORIZONTAL
COVERAGE
PAIRS WITH SUB2 POWERED BASS MODULE
PHANTOM POWER AND BLUETOOTH® CONNECTIVITY
32
DRIVERs
BUILT-IN MIXER WITH TONEMATCH PRESETS
WIRELESS MIXER CONTROL VIA L1 MIX APP
128 dB SPL PEAK WHEN
PAIRED WITH SUB2
SYSTEM EQ
PRESETS
Intuitive and Instant Wireless Control
includes library of custom EQ presetsWith the L1 Mix app, you can adjust mixer settings instantly from your mobile device or even walk the room, hear how the mix sounds and fine-tune as you go. Change volume and tone settings in the app and watch the LED encoder on your L1 Pro move to match—the mixer and app are always in sync, in real time.
Plus, you have access to the entire ToneMatch library of custom EQ presets. With the L1 Mix app, you get the connectivity that empowers your performance, giving you greater flexibility for on-the-fly tweaks via controls that are intuitive and instant.
A Truly Superior Audio Experience
The peak of
portable PAWith the supreme clarity and output of a 32-driver articulated line array, the L1 Pro32 with Sub2 Powered Bass Module offers 180-degree horizontal coverage and the most focused vertical coverage pattern and highest SPL over distance in an L1 ever—providing intricate sonic detail, clarity and consistency, even off to the extreme sides in larger venues.
For DJs, singer-songwriters, bands—and your audience—the L1 Pro32 offers a truly superior experience. It gives you the power to sound your best and simply perform.
Slim size.
Big bass.The L1 Pro32 combined with the Bose Sub2 subwoofer, features a 25.4 cm × 45.7 cm high-excursion neodymium RaceTrack driver. Sub2 is a more powerful option and plays lower and louder. With this unique RaceTrack driver design, Sub2 offer bold bass, has an optimised centre of gravity and saves a lot of space. The slim design means you get the full impact of a conventional subwoofer without the cumbersome size.

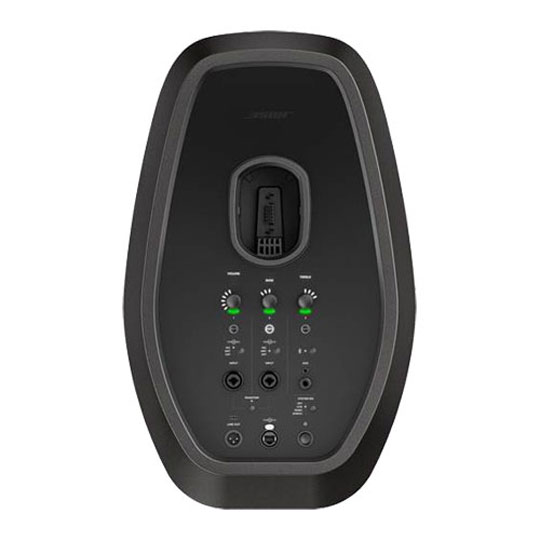

Mixer onboard and
on your phoneEach L1 Pro system features a built-in mixer, so you can connect various instruments, microphones and other sources easily. You get two combo XLR-6.4 mm (1/4") phantom-powered inputs, 6.4 mm and 3.5 mm (1/8") aux inputs, plus Bluetooth streaming capability. Illuminated rotary encoders give you instant access to volume, tone and reverb settings per channel. Select between optimised system EQ presets for live music, recorded music and more.

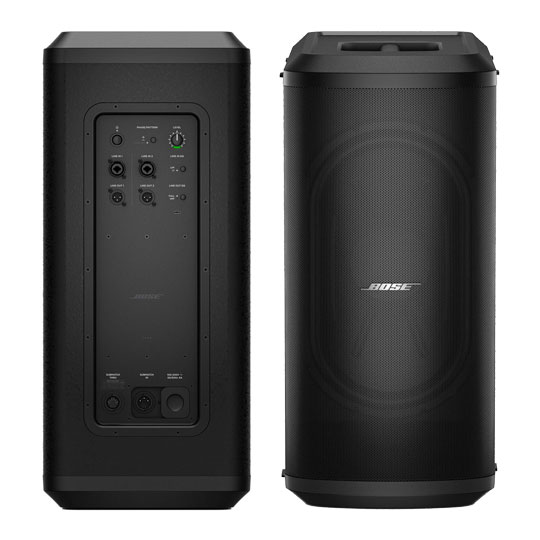

Bose - Sub2
'Give your songs full impact'A powered, portable bass module, the Sub2 subwoofer from Bose combines with virtually any portable PA and delivers
low-end performance down to 37 Hz. Its unique 10" × 18" high-excursion neodymium RaceTrack driver allows
for an ultra-slim enclosure, delivering performance that rivals a traditional 15" woofer without the cumbersome
size, freeing up room in your vehicle and on the stage.
Compared to the Sub1 subwoofer, Sub2 is the more
powerful subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch
connectivity. You can stack multiple Sub2 subwoofers for even more low end — or to unleash Cardioid Mode
for directional bass. With a Sub2, you get a subwoofer that easily fits onstage — and effortlessly fills up the
dance floor
at a glance
•
Lightweight & Easy Setup
• Two Combo XLR-1/4" Inputs + XLR Outputs
• Cardioid Mode with Two Sub2 Modules
• Includes Slip Cover and Power Cord
Innovative & Versatile Features
Give your songs full impactSub2 Powered Bass Module combines with virtually any portable PA to deliver low end down to 37 Hz. When paired with the Bose L1 Pro32, Sub2 plays lower and louder and gives you bold bass from slim design that goes virtually anywhere.
More bass. Less bulk.With a unique RaceTrack driver design, Sub2 offers powerful bass and an optimised centre of gravity. The driver’s shape allows the physical enclosure of Sub2 to be slimmer without compromising sound. This frees up room in your vehicle and on the stage, and makes every carry in between—home to car, vehicle to venue—much easier.
Focus the bass where you want itStack two Sub2 subwoofers for even more bass or to unleash Cardioid Mode for focused, directional performance that negates rear-firing bass energy, steers the bass to the front and reduces feedback.
Part of a full systemSub2 pairs seamlessly with the L1 Pro32 via proprietary SubMatch connectivity to form a modular line array system that’s easy to pack, carry and set up. This single-cable connection makes setup so much easier. It allows the system’s crossover and EQ to automatically calibrate for optimal sound, and—because power and digital audio are passed through the SubMatch cable—you only need a single power plug. Just plug in your L1 Pro32 and you’re ready to go.
Introducing the Bose L1 Pro32 Portable Line Array System
Bose - L1 Pro32
The Tech Spec
| Features | Specifications | Type | Portable PA System |
|---|---|
| Speaker Drivers | 32 x 2" |
| Number of Mixer Channels | 3 |
| EQ | 2-band EQ |
| Effects | Reverb |
| Inputs | 2 x XLR-1/4" combo, 1 x 1/8" (aux), 1 x 1/4" (aux) |
| Outputs | 1 x XLR (DI) |
| USB | 1 x USB-C |
| Bluetooth | Yes |
| Total Power | 480W Class D |
| Frequency Response | 40Hz - 18kHz |
| Software | L1 Mix App |
| Mounting Options | Floor |
| Power Source | Standard IEC AC power cable |
| Dimensions | Width: 13.6" Height: 84.1" Depth: 21.7" |
| Weight | 28.6 lbs. |
Bose - Sub2
The Tech Spec
| Features | Specification | Configuration | Active Subwoofer |
|---|---|
| Enclosure Type | Bass-Reflex Line Array Subwoofer/Subwoofer |
| Amplifier Power Rating | 1000 W |
| Amplifier Class | Class-D |
| MF Driver | None |
| LF Driver | 18 x 10" / 457.2 x 254 mm Woofer |
| Audio I/O | 2 x Combo XLR-1/4" 3-Pin Female Balanced Line Input 2 x XLR 3-Pin Male Balanced Line Output 1 x Proprietary Subwoofer Input 1 x Proprietary 3-Pin Subwoofer Thru |
| Wireless Connectivity | Bluetooth |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Mounting | 1 x M20 Pole Socket (Side) |
| Handles | 1 x Top |
| Dimensions | 27.221.7 x 12" / to 55.1 x 30.5 cm |
| Weight | 51.7 lb / 23.5 kg |
