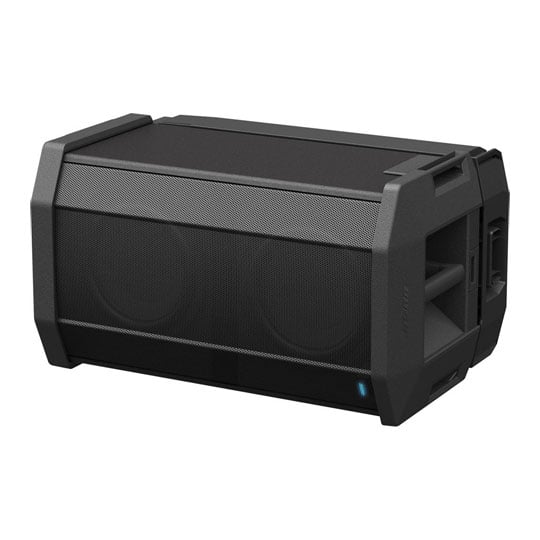

Bose - F1 Subwoofer
Bose - F1 Powered Subwoofer, 2x High-Excursion 10" Woofers
Powered Subwoofer
Bose - F1
'Your Sound Stands Alone'With 1,000 watts of power, the Bose® F1 Subwoofer packs all the performance of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the Bose F1 Model 812 Flexible Array Loudspeaker is integrated right into the body of the subwoofer, so you always know where it is, making setup fast and easy.
The stand even includes cable channels to neatly hide the wires, giving your system a clean, professional look. And now getting your unit to the venue is easier, too. The F1 Subwoofer features strategically placed handles for easy transport.
at a glance
•
Integrated Mounting Stand
• 2x High-Excursion 10" Woofers
• Full Range or HPF on Output
suggested applications
• Mobile DJs
• Solo musicians
• Bands of all styles
• Live music performances
• Schools and universities
• Resorts and hospitality venues
• Business presentations
Innovative & Versatile Features
1,000 wattsallow the Bose F1 Subwoofer to pack all the performance of a larger bass box into a more compact design that’s lighter and easier to carry than conventional subwoofers.
F1 Model 812 extension bracketis a unique bracket integrated into the subwoofer. This bracket can be raised and lowered by the end user, allowing the F1 Model 812 loudspeaker to be safely mounted to the subwoofer. The bracket eliminates the need for a conventional pole mount or tripod stand.

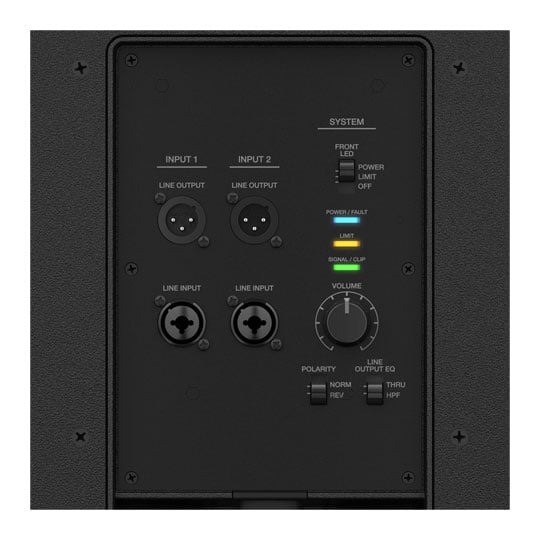

Line output EQsets the F1 Subwoofer’s output to a high-pass filter or full range, which allows for easy crossover selection when used with a main loudspeaker.
Two high-excursion driverseach measuring 10 inches, are built into a compact enclosure that is light and easy to transport.
Polarity switchto adjust polarity of subwoofer. Selections are NORM and REV. Reversing polarity allows for easy correction of low-frequency overlap between the main loudspeaker and subwooferr.
The Tech Spec
| Features | Specification | Frequency Response (-3 dB) | 40 Hz - 250 Hz |
|---|---|
| Frequency Range (-10 dB) | 38 Hz - 250 Hz |
| Maximum SPL @ 1 m | 130 dB SPL (peak 6 dB CF) |
| Rated Power | 1,000 W (500+500) |
