Flexible Array Loudspeaker System
Bose - F1 Model 812 & F1 Subwoofer
versatile, powerful & ultra-portable Loudspeaker systemBose F1 Model 812 Flexible Array Loudspeaker System paired with the F1 Subwoofer is a super-versatile speaker array system which delivers unparalled portable audio, perfect for almost any application and environment. This bundle has been pieced together by our Live Sound and PA experts to hand you all the tools you’ll need to bring rich, articulate sound to your events!
what's included?
• Bose - F1 Model 812 x2
• Bose - F1 Subwoofer x2
Flexible Array Loudspeaker

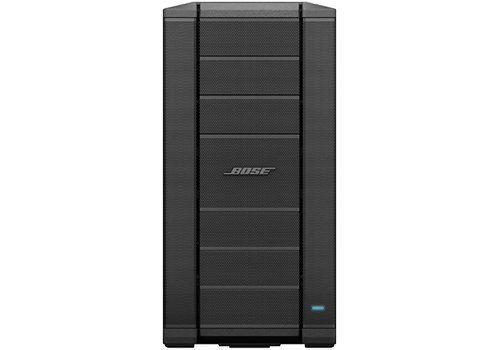

Bose - F1 Model 812
'Your Sound Stands Alone'Powerful, standalone sound that flexes to meet your coverage needs — the powerful Bose F1 Model 812 is a 1000-watt, full-range loudspeaker featuring Bose Flexible Array technology. At the centre of the F1 is a 12” woofer nested behind an array of eight high-output drivers.
These nine speakers are supported by a lower crossover point than conventional loudspeakers — to give full voice to your sound and deliver clearer, more natural vocals and midrange clarity, even at high volumes. And you control the vertical coverage pattern. So, wherever you’re playing, you can adapt the PA to match the room. With the Bose F1 Model 812, your sound stands alone.
at a glance
• Built-in 1000-watt amplifier
• Integrated speaker stand for F1 Model 812
• Hidden cable channels for clean appearance
• Built-in handles for easy transport
suggested applications
• Mobile DJs
• Solo musicians
• Bands of all styles
• Live music performances
• Schools and universities
• Resorts and hospitality venues
• Business presentations
Innovative & Versatile Features
Powerful full-range loudspeakerwith 132 dB max SPL and low-frequency performance down to 43 Hz (-10 dB).
Portable, standalone designwith built-in 1000-watt amplifier and nine transducers: eight high-output drivers and a 12” high-power woofer.
Lower crossover
pointthan conventional loudspeakers for clear and natural vocals even at high volumes.
Optional Bose F1 Subwoofer(sold separately) for even more low-frequency response.
Automatic EQadjusts to maintain optimum tonal balance for each coverage pattern.
Flexible Array technologyeasily adjust coverage pattern — Straight, C, J, or Reverse J — to optimize sound for different spaces: floor level, on stage, for raked seats or bleachers, and more.
Built-in handlesfor easy transport and compatible with standard 35 mm speaker stands (sold separately).
Flex Array Shapes
Reverse-J PatternThe reverse-J pattern is good for an audience in raked seating that starts at loudspeaker height and extends above the top of the loudspeaker.
J PatternThe J pattern works well when the loudspeaker is up on a raised stage and the audience is seated below on the floor.
C PatternUse the C pattern for raked seating in an auditorium when the first row is on the floor with the loudspeaker.
Straight PatternUse the straight pattern when the audience is standing and their heads are approximately at the same height as the loudspeaker.

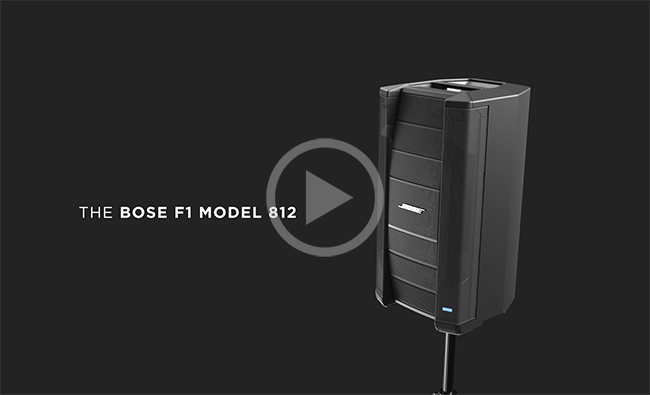

Bose F1 Model 812: Your Sound Stands Alone
Powered Subwoofer

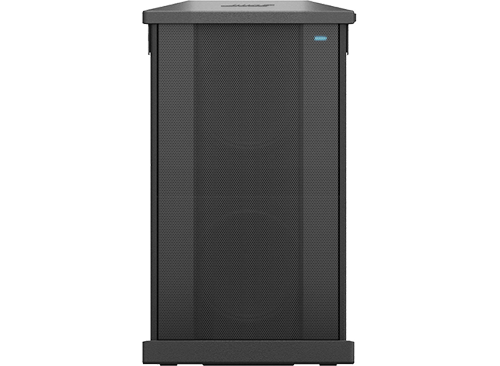

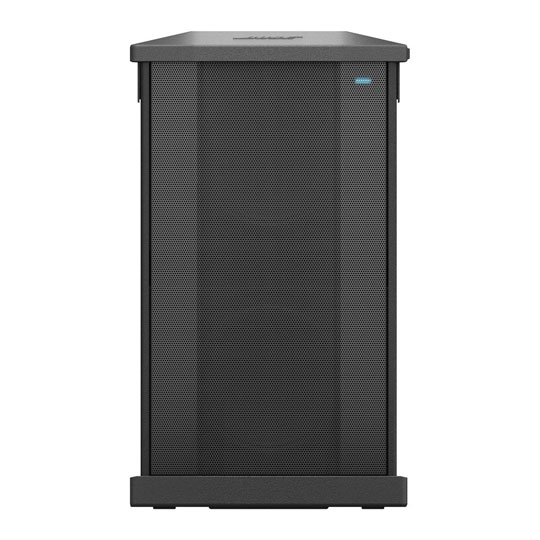

Bose - F1
'Your Sound Stands Alone'With 1,000 watts of power, the Bose® F1 Subwoofer packs all the performance of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the Bose F1 Model 812 Flexible Array Loudspeaker is integrated right into the body of the subwoofer, so you always know where it is, making setup fast and easy.
The stand even includes cable channels to neatly hide the wires, giving your system a clean, professional look. And now getting your unit to the venue is easier, too. The F1 Subwoofer features strategically placed handles for easy transport.
at a glance
•
Integrated Mounting Stand
• 2x High-Excursion 10" Woofers
• Full Range or HPF on Output
suggested applications
• Mobile DJs
• Solo musicians
• Bands of all styles
• Live music performances
• Schools and universities
• Resorts and hospitality venues
• Business presentations
Innovative & Versatile Features
1,000 wattsallow the Bose F1 Subwoofer to pack all the performance of a larger bass box into a more compact design that’s lighter and easier to carry than conventional subwoofers.
F1 Model 812 extension bracketis a unique bracket integrated into the subwoofer. This bracket can be raised and lowered by the end user, allowing the F1 Model 812 loudspeaker to be safely mounted to the subwoofer. The bracket eliminates the need for a conventional pole mount or tripod stand.
Line output EQsets the F1 Subwoofer’s output to a high-pass filter or full range, which allows for easy crossover selection when used with a main loudspeaker.
Two high-excursion driverseach measuring 10 inches, are built into a compact enclosure that is light and easy to transport.
Polarity switchto adjust polarity of subwoofer. Selections are NORM and REV. Reversing polarity allows for easy correction of low-frequency overlap between the main loudspeaker and subwooferr.
Bose F1 Model 812
The Tech Spec
| Features | Specification | Frequency Response (-3 dB) | 52 Hz - 16 kHz |
|---|---|
| Frequency Range (-10 dB) | 43 Hz - 20 kHz |
| Nominal Dispersion | C: 100° H x 40° V |
| Maximum SPL @ 1 m | 132 dB SPL (peak) |
| Rated Power | 1,000 W |
Bose - F1 Subwoofer
The Tech Spec
| Features | Specification | Frequency Response (-3 dB) | 40 Hz - 250 Hz |
|---|---|
| Frequency Range (-10 dB) | 38 Hz - 250 Hz |
| Maximum SPL @ 1 m | 130 dB SPL (peak 6 dB CF) |
| Rated Power | 1,000 W (500+500) |
