Blackmagic Design Video Assist 7" 3G

Blackmagic Design Video Assist 7" 3G - 7" LCD monitor with 3G-SDI and HDMI connections

Thumbnail 1 : Blackmagic Design Video Assist 7" 3G Thumbnail 2 : Blackmagic Design Video Assist 7" 3G Thumbnail 3 : Blackmagic Design Video Assist 7" 3G Thumbnail 4 : Blackmagic Design Video Assist 7" 3G
Scan code: LN109386 Manufacturer code: BMD-HYPERD/AVIDA03/7
£660.49
Order now and receive it by Monday, 28th September
From £18.35 / month (APR 0%)
Monthly Payment: £55.04
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £660.49
Total inc. interest: £660.49
Monthly Payment: £27.52
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £660.49
Total inc. interest: £660.49
Monthly Payment: £18.35
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £660.49
Total inc. interest: £660.49
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 28th Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Blackmagic Design
'Video Assist 7" 3G'

Blackmagic Design VIDEO ASSIST 7 3G

7" LCD monitor with 3G‑SDI
and HDMI connections
The ‘Video Assist’ from Blackmagic is a portable monitor, pro-grade recorder, portable scope and a superb camera viewfinder solution in one! It’s also possible to add better quality record codecs, alongside a larger monitor to any SDI or HDMI camera! The Video Assist features a new design, with new innovations such as 4 built-in scopes, greater focus assist features, a tally indicator and integrated 3D LUTs. The 3G model fully supports formats up to 1080p60.

The new design also boasts ‘L-Series’ batteries, delivering huge battery life for prolonged work sessions. Blackmagic ‘Video Assist’ truly is 4 products in one!

Amazing Features • High-speed Thunderbolt 3 port for high quality video processing
• Built in 3G-SDI and HDMI connections on each model
• Supports all common SD/HD video formats up to 1080p60
• Uncompressed and compressed 10-bit 4:2:2 YUV or RGB quality
• Supports DaVinci Resolve and all other video software

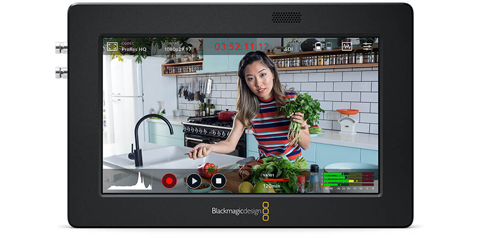

7" Full HD Display

4K Recording

1920 x 1200 displayThe front face of the monitor sports a vibrant 7” 1920 x 1200 display for analysing your work. On-screen controls allow you to control the brightness and contrast dependent on the shoot location, while the 135° viewing angle makes it easier than ever for multiple crew members to watch simultaneously. It also fully rotates so no matter which way it’s mounted, the picture is always sure to be displayed correctly.

Touchscreen InterfaceThe ‘Video Assists’ colourful 7” display offers highly-intuitive capacitive touchscreen controls. Simple swipe gestures make it easy to show or hide settings, such as capture resolution and format, alongside screen brightness and contrast. Swipe in a different direction and you’ll have full access to further controls, recording status, histogram, audio level, timecode, battery status and more. The controls feature a semi-transparent overlay, meaning you’re still able to keep a close eye on each part of your shots.

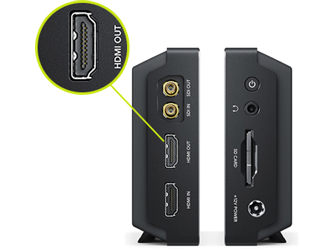

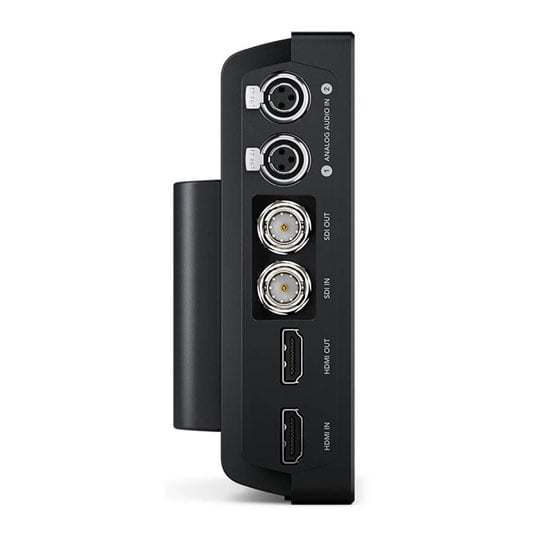

6G-SDI and HDMI Connections

back

Loop-through outputsBoth video and audio are captured using 6g-SDI and HDMI 1.4 inputs, enabling you to record from professional cameras and camcorders, alongside popular DSLRs and mirrorless cameras. Using the 6G-SDI input, you can even monitor in Ultra-HD footage.

Loop-through outputs are on hand to enable you to simultaneously display the live video or recorded clips on larger screens, such as HD broadcast monitors or HDMI projectors, whilst you monitor and record on the Video Assist. Audio is embedded in the output and is also able to be monitored via headphones thanks to the 3.5mm stereo jack.

10-Bit 4:2:2 ProRes & DNxHD Recording

back

supports industry-standard formatsBlackmagic’s ‘Video Assist’ captures your video at staggering 10-bit 4:2:2 quality. Files are recorded directly to high-speed U1 SD cards, using Apple ProRes (HQ, 422, LT, Proxy) or DNxHD codecs. These are industry-standard formats, so you’re free to start editing immediately without having to convert the files first.

Recording is auto-triggered via your Blackmagic Video Assist from the start/stop button on compatible cameras, so you’re free to remain focused on getting the shot without having to worry about operating additional gear.

Power & Additional Features

4K Recording

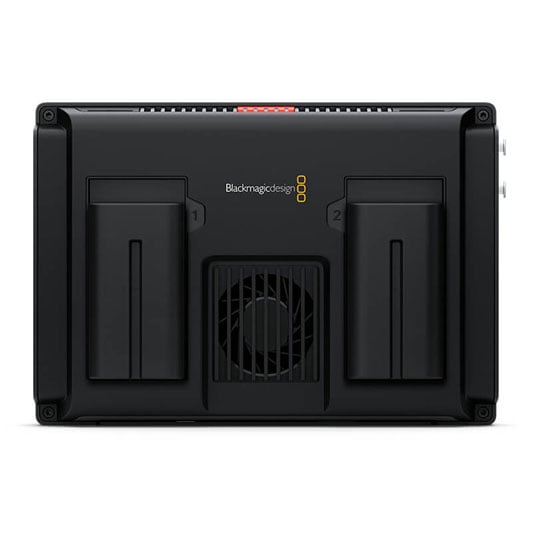

Intelligent battery managementA universal 110V to 240 VAC power supply is included so you’re able to use the Video Assist anywhere your work takes you. Connect the AC adapter into the 12 VDC input to receive continuous power, or run off of dual Canon compatible LP-E6 type batteries. Intelligent battery management will use the battery with less charge first, then quickly switch to the other battery without ever interrupting your recording. Once connected to AC power, the batteries can be charged in parallel while the Video Assist is still being used.

Amazing Features • Histogram and zebra overlays for exposure aid
• Focus Peaking and Central Zoom to aid focus
• Timecode over SDI and HDMI
• Can control settings on Blackmagic Micro Cinema Camera
• Machined aluminum housing
• Six 1/4"-20 threaded mounting holes (three on top, three on bottom)
• Built-in kickstand

The Tech Spec

Features Specification
Panel Type TFT LCD
Display Size 7.0"
Screen Resolution 1920 x 1200
Viewing Angle Horizontal: 135°
Touchscreen Yes
Video 1 x HDMI Type A Input 1 x DIN 1.0/2.3 (6G-SDI) Input 1 x HDMI Type A Output 1 x DIN 1.0/2.3 (3G-SDI) Output
HDCP Support No
Embedded Audio HDMI: 2-Channel SDI: 2-Channel
Audio 1 x 3.5 mm Headphone Output
Power 1 x Barrel Input
Other I/O 1 x USB 2.0 (Mini-USB) 1 x LANC (2.5 mm)
Video Format SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24 1080i: 50/59.94/60 720p: 50/59.94/60 576i 480i

HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60 720p: 50/59.94/60 480p: 60 576p: 50 576i 480i
Encoding Formats 1920 x 1080 ProRes 422, LT, Proxy, HQ DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF
AC Input Power 110 to 240 VAC, 50 / 60 Hz
DC Input Power 12 VDC
Battery Type 2 x LP-E6
Weight 825g
