Blackmagic Design Mini Converter
Blackmagic Design SDI to Audio Mini Converter, Auto Switching SD and HD, 3 Gb/s SDI Technology
Email me when the availability or price changes

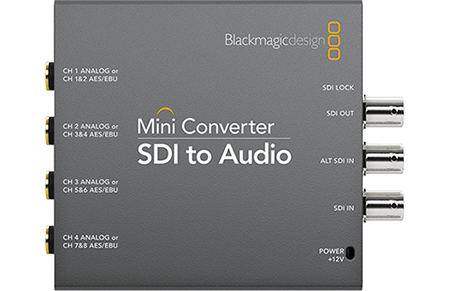

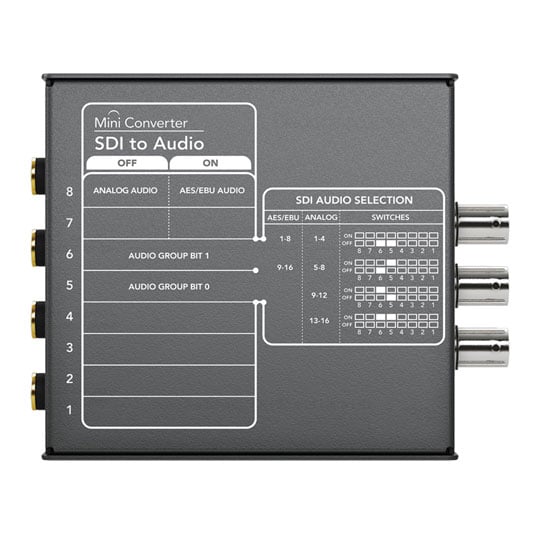

SDI to Audio Mini Converter from Blackmagic Design

The perfect way to de‑embed audio This SDI to Audio mini converter from Blackmagic Design includes everything you need to de-embed 4 channels of analogue audio or 8 channels of AES/EBU digital audio from any SDI source, you can easily access the audio in any SDI video connection for output to audio equipment such as audio mixers, analogue broadcast decks, audio monitors and more its the ideal de‑embedder for when you don’t need the cost of the Ultra HD model!
Quality That’s in the Details
SDI to Audio Connections
• SDI Video Inputs: 1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
• Analogue Audio Outputs: 4 channels of professional balanced analog audio.
• Digital Audio Outputs: 8 channels of professional balanced AES/EBU audio.
• Redundant Inputs: Automatically switches over if main SDI input is lost.
• Multi Rate Support: Auto detection of SD, HD or 3G‑SDI.
• Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
• SDI Video Outputs: 1 x SDI Loop Output.
• Reclocking: Yes
Video Standards
SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
HD Video Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, ITU‑R BT.656, ITU‑R BT.601 |
SDI Video Rates | SDI video connections are switchable between standard definition and high definition |
SDI Video Sampling | 4:2:2, 4:4:4 |
SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
SDI Color Precision | 4:2:2, 4:4:4 |
SDI Color Space | YUV, RGB |
SDI Auto Switching | Automatically selects between SD, HD, and 3G‑SDI |
