Blackmagic - 'Mini Converter Audio to SDI'

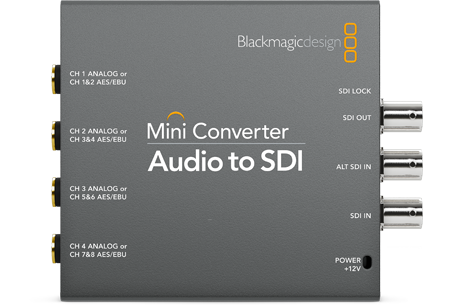

Blackmagic Mini Converter Audio to SDI

the world's most advanced convertersEmbed audio into any SDI source in SD and HD formats up to 1080p60! Audio is input as balanced analog or AES/EBU using ¼ inch connectors from equipment such as mixers and analog decks. Mini Converter Audio to SDI is the ideal SD/HD SDI audio embedder for when you don’t need the cost of the Ultra HD model.

The Tech Spec

Features Specification
SDI Video Inputs 1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
SDI Redundant Input Automatically switches over if main SDI input is lost.
SDI Video Outputs 1 x Embedded SDI Output.
Analog Audio Inputs 4 channels of balanced analog audio.
Digital Audio Inputs 8 channels of balanced AES/EBU audio.
Multi Rate Support Auto detection of SD, HD or 3G‑SDI.
Updates and Configuration Via USB 2.0 high speed. (480 Mb/s)
Reclocking Yes
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, ITU‑R BT.656 and ITU‑R BT.601
SDI Video Rates SDI video inputs are automatically detected between standard definition, high definition and level A or level B 3G‑SDI.
SDI Video Sampling 4:2:2, 4:4:4
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Colour Precision 4:2:2, 4:4:4
SDI Colour Space YUV, RGB
SDI Auto Switching Automatically selects between SD, HD, and 3G‑SDI.
Software Control Mac™ and Windows™ software upgrade via USB.
Internal Software Upgrade Via included updater application.
Operating Systems Mac 10.15 catalina, Mac 11.1 Big Sur or later
Windows 10, 64-bit

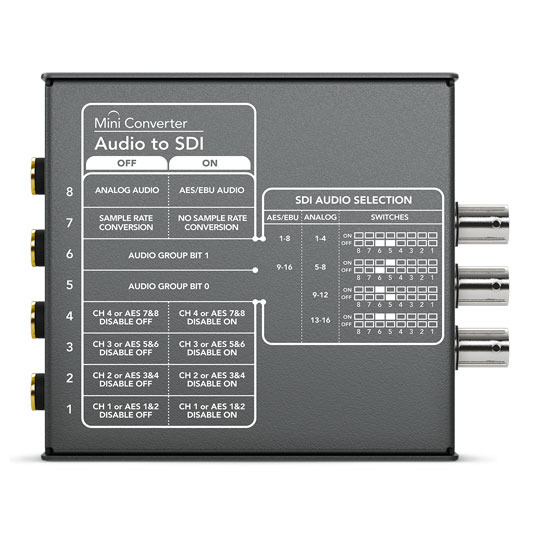

Settings Control Mini Switches or USB software.
Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption 8.40 Watts
Operational Voltage Range 12V DC
Physical Specifications 11.48 x 9.22 x 2.28cm
Operating Temperature 0° to 40° C
Storage Temperature -20° to 45° C
Relative Humidity 0% to 90% non‑condensing
