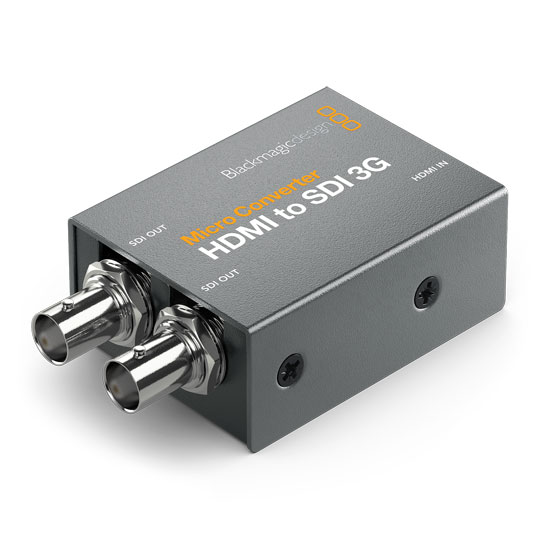

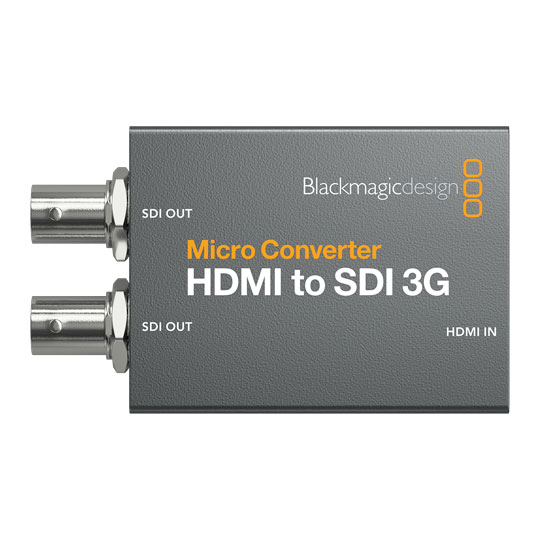

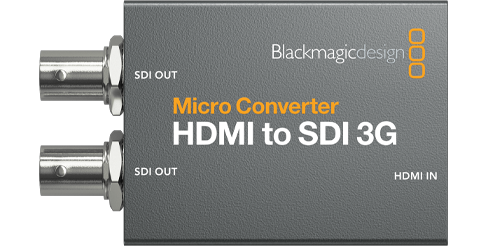

Blackmagic Micro Converter HDMI to SDI 3G

Blackmagic Design Micro Converter HDMI to SDI 3G, HDMI Input, 2x SDI Output

Thumbnail 1 : Blackmagic Micro Converter HDMI to SDI 3G Thumbnail 2 : Blackmagic Micro Converter HDMI to SDI 3G Thumbnail 3 : Blackmagic Micro Converter HDMI to SDI 3G
Scan code: LN112371 Manufacturer code: CONVCMIC/HS03G
£40.80
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

Blackmagicdesign - 'Micro Converter HDMI to SDI 3G'

Blackmagicdesign Micro Converter HDMI to SDI 3G

Micro Converter HDMI to SDI 3GBlackmagicdesign’s Micro Converter HDMI to SDI 3G is perfect for connecting HDMI cameras and computers to professional SDI equipment, with 3G-SDI outputs which can be set to level A or level B formats. Blackmagic’s converter, unlike cheap converters, supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.

USB Powered

Blackmagicdesign Micro Converter HDMI to SDI 3G

The World’s Smallest USB
powered broadcast converters!
The new Blackmagic Micro Converter 3G models are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere! You get professional 3G-SDI connections for working with all SD and HD formats up to 1080p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies if they are not needed! Only Blackmagic Micro Converters feature custom designed electronics that conform to current global broadcast specifications, and can be updated to new standards in the future.

Pocket Sized Broadcast Quality Converters

Blackmagicdesign Micro Converter HDMI to SDI 3G

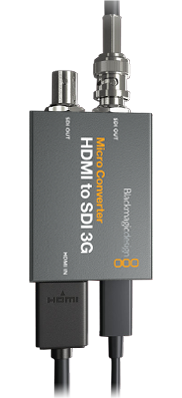

Use AnywhereBlackmagic Micro Converters are so small you can use them anywhere! That means it’s always easy to keep a few available for any urgent conversion task! Because they are extremely high quality, you can trust them for all kinds of broadcast, live production and on set use. Use them for turning any computer display, television or video projector into high quality colour calibrated broadcast monitoring. They're also perfect for converting the HDMI outputs of computers and consumer video cameras to high end SDI equipment. Imagine using a slide show running on a computer for high end broadcast quality titles in live production! You could even use them for extending long HDMI distances using SDI.

Blackmagicdesign Micro Converter HDMI to SDI 3G

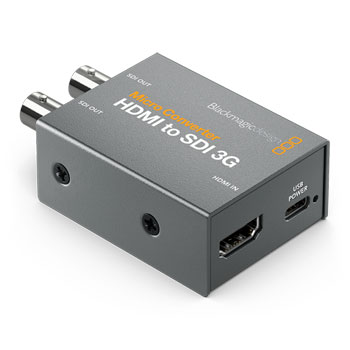

Miniaturised DesignUnlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturised into an incredibly strong metal enclosure. Each converter has industrial standard 3G-SDI and HDMI connections with strong high quality connectors. Blackmagic Micro Converters include a USB connection for power, as well as changing settings via the converter utility on Mac and Windows. Because the USB powers the converter, you can even power it from televisions or laptop computers. There are even LEDs for power and video status. You can also buy Blackmagic Micro Converters with an AC power supply including 4 adapters for international use.

Broadcast Quality

Blackmagicdesign Micro Converter HDMI to SDI 3G

Big converter quality, miniaturizedUnlike cheap converters, Blackmagic Micro Converters include the highest quality signal processing and deep bit depth video pipeline. Micro Converters have been engineered with precision electronics so you get very low SDI jitter, allowing you to extend SDI cables over long distances. That’s vital for live production where equipment such as cameras can be a long distance from switchers. Blackmagic Micro Converters work with both 8 and 10-bit video formats, in RGB or YUV, and in all SD and HD formats up to 1080p60. They even support 1080p24, 1080p47.95 and 1080p48 film rates! Plus you get fully embedded audio and timecode support.

Blackmagicdesign Micro Converter HDMI to SDI 3G

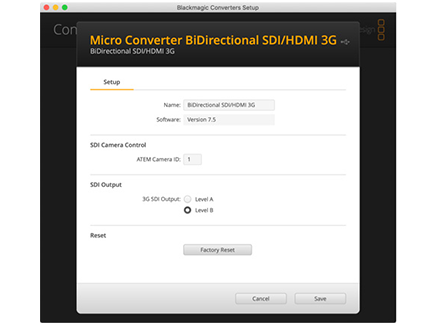

Update and Change Settings!You can also change settings and update the converter software with the free converter utility that can be downloaded from the Blackmagic Design web site. This software connects to the USB connection on the Micro Converters and runs on both Mac and Windows computers. You can use the utility to change the converter name, which can be useful for identifying which converter is used for which task! When using the bidirectional converter, you can even set the camera number, so the converter knows when it’s being controlled from a live production switcher. You can also select between level A and level B on the 3G-SDI video output.

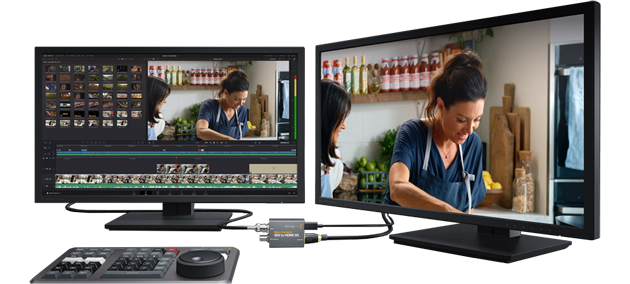

Monitoring with 3D LUTs

Blackmagicdesign Micro Converter HDMI to SDI 3G

Get colour accurate monitoring on any type of displayThe Micro Converter SDI to HDMI 3G model even includes a 3D LUT for colour accurate monitoring! You can apply custom looks, colour and gamma changes in real time for on set monitoring. LUTs can also be applied to the 3G‑SDI loop output, allowing you to use the converter as a 3D LUT processor! You can also use 3D LUTs to get a colour calibrated grading monitor using a low cost computer monitor or TV! You can even use the DaVinci Resolve primary colour corrector to create amazing looks and then save them as custom 3D LUTs. Because DaVinci Resolve can be downloaded free, it costs nothing to start creating a world of custom 3D LUTs for monitoring! Imagine reproducing old film stocks!

Broadcast Quality

Includes HDMI Timecode Support

The new Micro Converter 3G models use a new Blackmagic Design custom hardware design so they're more advanced to better support the technical features that are critical to high end broadcast workflows. These features include support for HDMI and SDI timecode conversion. You even get full support for timecode in both standard definition and high definition video

formats. This means if you have any HDMI device that supports timecode, you can convert it to SDI and get that timecode into larger broadcast systems. Blackmagic Micro Converters might be low cost, however they don't miss out on advanced features needed for high end film, television and post production work

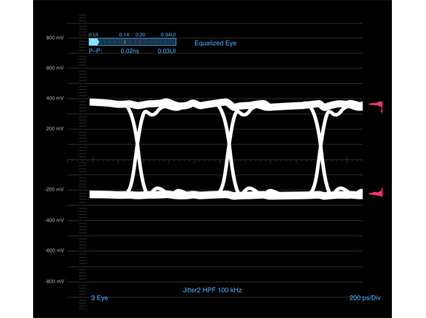

SDI Re‑clocking

Blackmagicdesign Micro Converter HDMI to SDI 3G

Perfect for longer SDI cable lengthsBlackmagic Micro Converters include built in SDI re-clocking on the 3G-SDI output. The SDI re‑clocking will regenerate the SDI video, reduce SDI jitter and improve SDI eye pattern before the converter sends the signal to other equipment. This allows longer cable lengths because even degraded SDI signals can still be used. Other converters often leave out important features such as re-clocking so are not reliable for broadcast use. Blackmagic Micro Converters don’t suffer from these problems because they are a more technically advanced design. Blackmagic Micro Converters also fully comply with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, broadcast standards.

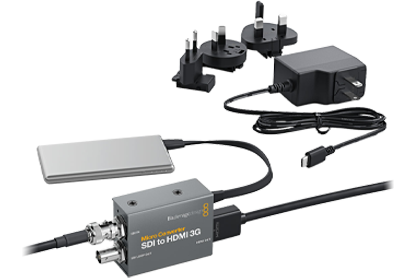

USB or AC Power

Blackmagicdesign Micro Converter HDMI to SDI 3G

Power via USB or optional power supplyThe new Blackmagic Micro Converter 3G models are powered via the same USB-C connection that’s used on newer computers and smartphones so you can power the converter from the same television or computer you are converting the video for. You can also purchase Micro Converters with an AC power supply that supports 100 to 240V AC and comes with 4 different AC socket adapters so you can plug them into outlets anywhere in the world. That’s perfect for when you’re doing international work! You can even use smartphone chargers and rechargeable battery packs to power Micro Converters on set. With so many easy to use power solutions, you’ll never be without a power supply again!

The Tech Spec

Features Specification
SDI Video Outputs 2 x SD, HD or 3G‑SDI
Automatically matches the HDMI input
HDMI Video Inputs HDMI Type A in
Multi Rate Support Auto detection of SD or HD
Updates, Configurations and Power USB Type‑C
Reclocking Yes
SDI Video Standards 525i59.94 NTSC,
625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI Video Rates SDI video connections are switchable between standard definition, 720p 1080i, 1080p and DCI high definition
SDI Colour Precision 4:2:2
SDI Colour Space YUV
SDI Auto Switching Automatically detects SD, HD and 3G-SDI
HDMI Video Standards 525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Colour Precision 4:2:2
HDMI Colour Space YUV
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Software Control Mac™ and Windows™ software upgrade via USB
Internal Software Upgrade Via USB
Operating Systems Mac 10.14 Mojave,
Mac 10.15 Catalina or later
Windows 10
Settings Control Via software utility
Power Consumption 2 W
Operational Voltage Range 4.4V to 5.25V DC
Operating Temperature 0° to 40° C
Relative Humidity 0% to 90% non-condensing
Storage Temperature -20° to 60° C
Dimensions 76.5 x 24.8 x 45.8mm
