Blackmagic Design HyperDeck ISO Recorder 100G

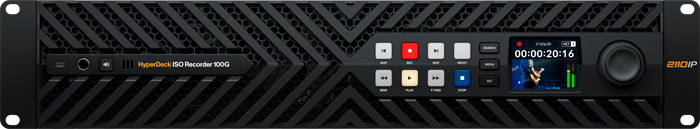

Designed for Live ProductionBlackmagic Design’s HyperDeck ISO Recorder 100G is a powerful ISO recorder built specifically for live production, capable of recording up to eight cameras simultaneously for later editing or live action replay in DaVinci Resolve. Featuring an innovative processor design that’s eight times more powerful than a HyperDeck Studio 4K, it delivers the performance needed for high-bandwidth multi-camera workflows in sports, events, and broadcast environments. With redundant 100G Ethernet ports, all eight video channels can travel over a single Ethernet connection, and you can connect a Blackmagic SDI Expander 8x12G to add 12G-SDI inputs for seamless integration into any live-production setup. The HyperDeck ISO Recorder 100G can also play back all eight channels at once, great for systems testing or training.

Access for Multiple WorkstationsRecording all your cameras during live production allows you to re-edit and colour correct your program later. Because HyperDeck ISO Recorder 100G records to network storage, you can have multiple workstations accessing the same storage, even while recording! This makes live action sports replay easy and low cost. Just download DaVinci Resolve free of charge to get started. All the cameras will be displayed in a multi-view in the viewer, so you can even live scroll all angles in real time! Then select the angle you want and press "On Air" to go live. While playing to air, you can select a new angle in DaVinci's multi-view. Adding a DaVinci Resolve Replay Editor will make replay even faster.

Designed for Professional BroadcastThe HyperDeck ISO Recorder 100G boasts a revolutionary design that combines broadcast deck controls with extremely quiet front-to-back cooling and full redundancy on all video and data connections. The LCD screen supports both light and dark modes, plus the transport control buttons have a firm, professional feel. For true elegance, the design includes a machined metal search dial with increased mass and a soft rubber surface that feels extremely nice to the touch. Plus, the search dial features an active clutch, just like a traditional broadcast deck! The front panel even includes a headphone connection and a built-in speaker! A USB-C connection on the front panel makes software updates easy.

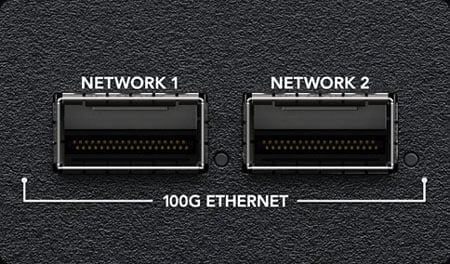

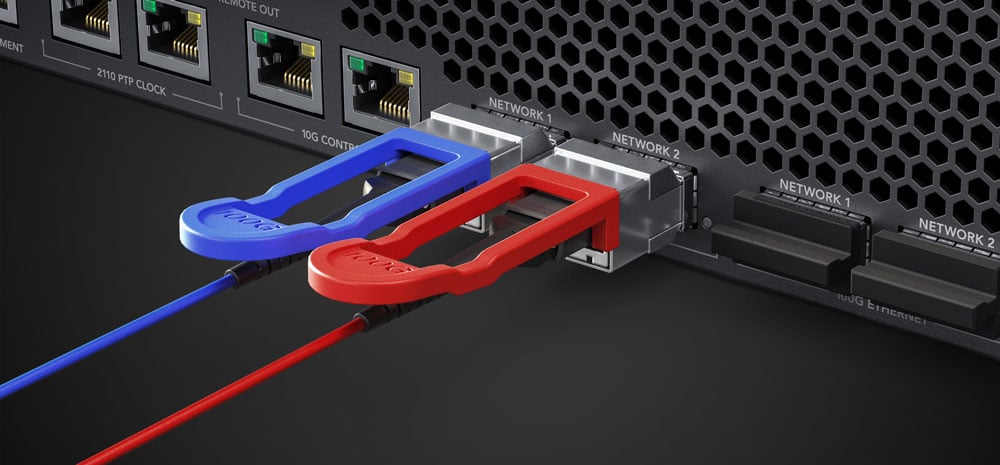

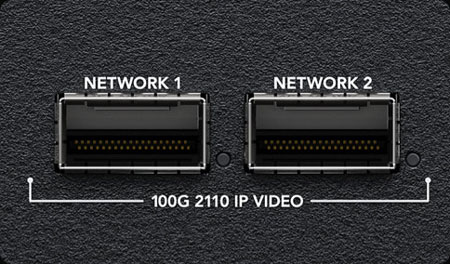

Redundant SMPTE-2110HyperDeck ISO Recorder features SMPTE-2110 connections using 100G Ethernet, so it can connect to all 8 record and playback video channels on a single physical connection! Plus, it has two separate 100G Ethernet ports for redundancy, letting you connect each port to completely separate network switches. This is called SMPTE 2022-7 Seamless Protection Switching, and it sends two identical copies of your video and audio across both connections, while on the receive side, it compares incoming RTP packets by sequence number and will then reconstruct a perfect video frame from whichever packet of pixels arrives first! The switchover is totally seamless with no dropped frames or audio glitches.

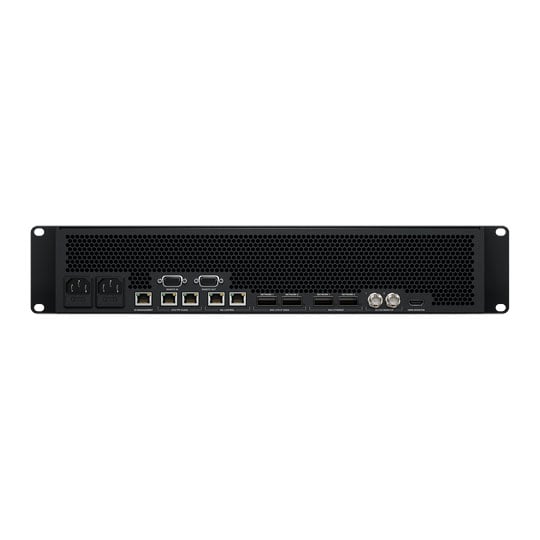

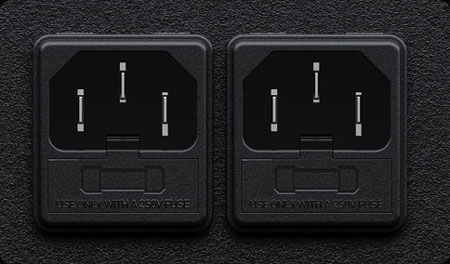

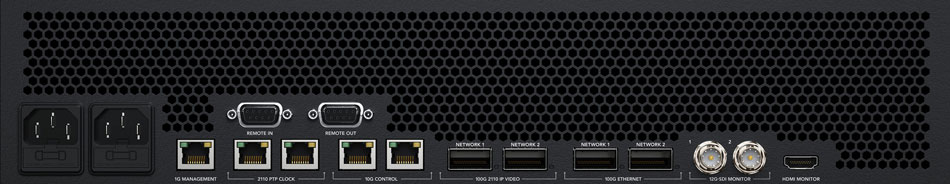

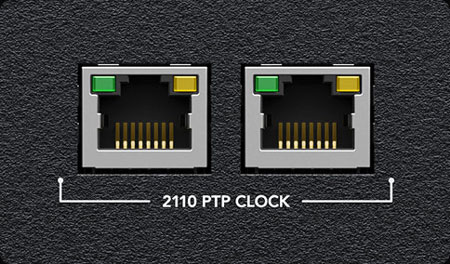

An Incredible Amount of RedundancyBroadcasters need reliable equipment with redundancy and tech status information. This means HyperDeck ISO Recorder 100G has an incredible amount of redundancy! The SMPTE-2110 IP video connection uses two redundant 100G Ethernet connections for connecting to two separate video networks. There are also two redundant 100G Ethernet connections for network storage. Although you can share data and video on a single connection, if you don't need all this redundancy. Even the PTP and control ports are redundant! There are also multiple redundant cooling fans and redundant AC power supplies. The utility software has fan status, internal CPU temperatures plus data transfer speeds on all network ports.

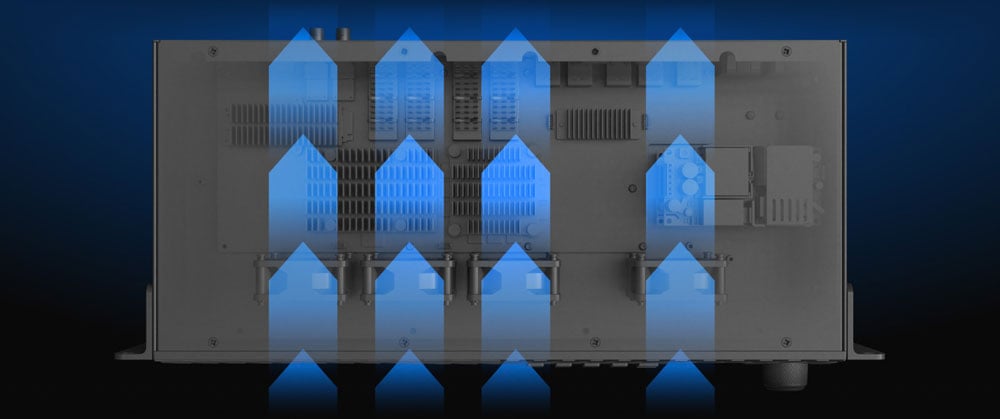

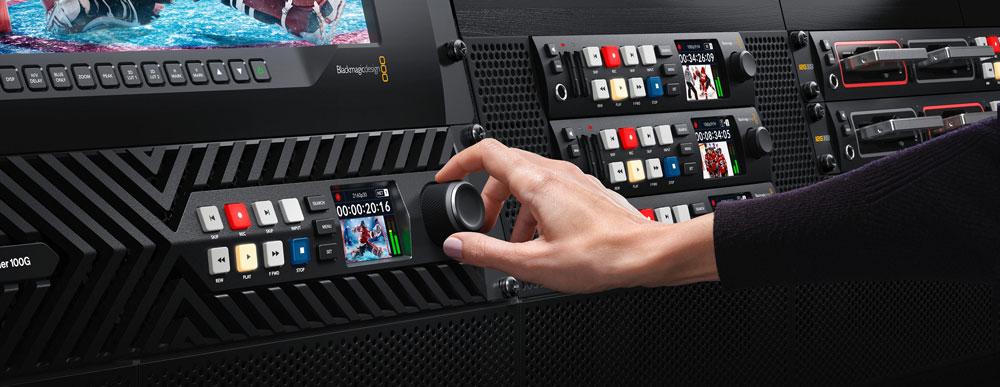

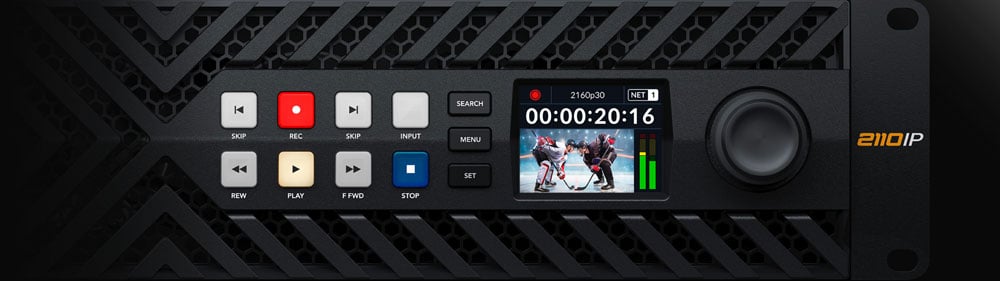

Truly Premium ExperienceHyperDeck ISO Recorder 100G includes traditional broadcast deck controls. For a truly premium experience, all the buttons and the search dial have been developed in-house by Blackmagic Design. The HyperDeck ISO Recorder 100G thermal system pulls air through the front panel, so all transport controls are located on a small island on the right side. The search dial is a machined metal design with a soft rubber coating and an electronic clutch. The transport buttons include record, play, stop, fast forward, rewind, previous clip, next clip and input. Plus, any transport button pressed is output to the RS-422 control connector on the rear panel. This lets you loop out to control other HyperDecks.

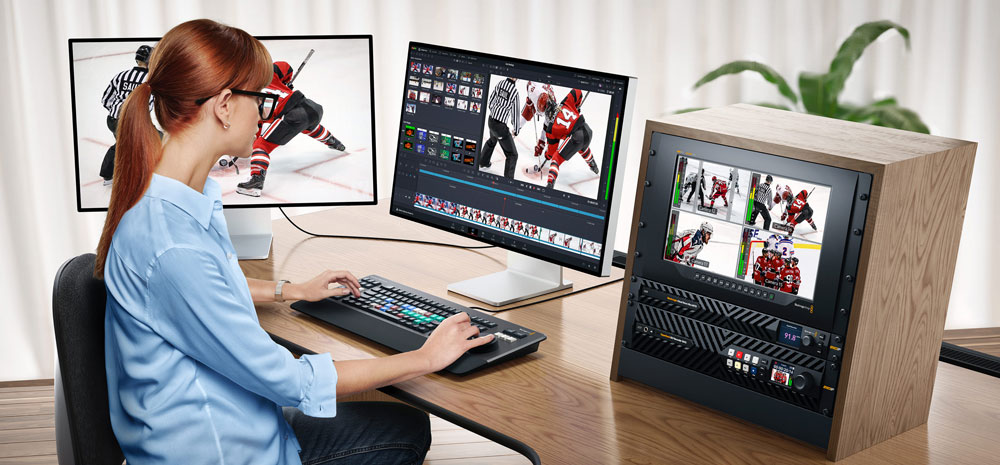

Records to ProRes FilesHyperDeck ISO Recorder 100G supports recording video to ProRes 422 HQ, ProRes 422, and ProRes 422 LT, so you get high quality files that you can edit and colour correct later in post production. ProRes files are widely used in the broadcast industry, ensuring your recorded media is fully compatible with software like DaVinci Resolve, Media Composer, Premiere Pro, and Final Cut Pro. The best storage options are the Blackmagic Cloud Store Ultra or the Blackmagic Cloud Dock Ultra, as these 2 products feature incredibly fast 100G Ethernet ports. That's one port for the HyperDeck and one port for your computer network.

RS-422 Serial Deck Control PortsWith HyperDeck ISO Recorder 100G, you get a modern SMPTE-2110 based design, but it retains RS-422 serial deck control ports so you can use existing broadcast automation systems. It's easily the most popular control connection used on broadcast decks since the early 1980s! Originally developed by Sony, RS-422 is used on almost all broadcast gear and is very common. HyperDeck also supports the Advanced Media Protocol for managing disk recorders. When designing RS-422 control solutions, you'll know you’re connected to a HyperDeck ISO Recorder 100G when you see the ID 0xF0E0 in 30/60p, 0xF1E0 in 25/50p or 0xF2E0 in 24p. The full set of support remote commands are included in the instruction manual.

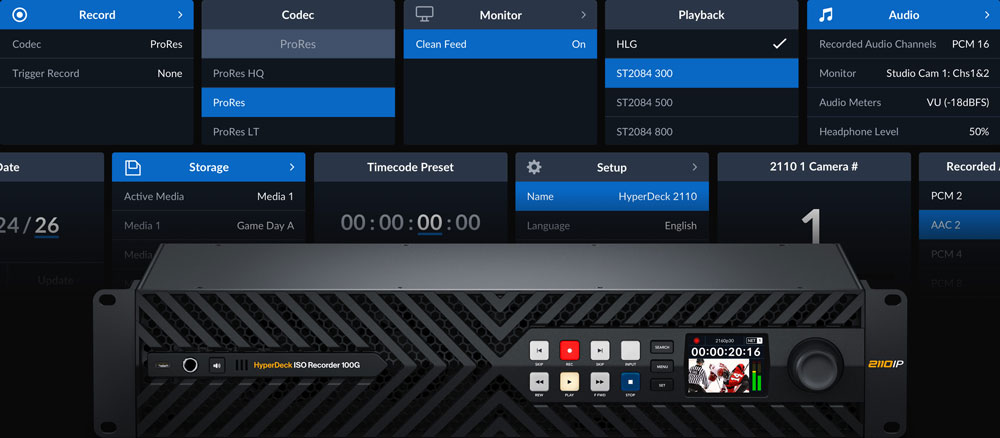

Blackmagic OSThe innovative Blackmagic OS has been designed for high performance film and broadcast products, and it manages all functions on HyperDecks. Only Blackmagic OS provides instant power on, while including powerful features such as LCD with video, timecode and audio metering, monitoring with overlays, menus, fast networking, multi-disk media management, 3D LUTs, plus localisation. The on screen LCD menus include settings to customize your HyperDeck, plus the menus support both light and dark mode! Blackmagic OS provides world leading network performance, and the HyperDeck ISO Recorder 100G can sustain data transfers at a massive 12 gigabytes per second on its 100G Ethernet connection.

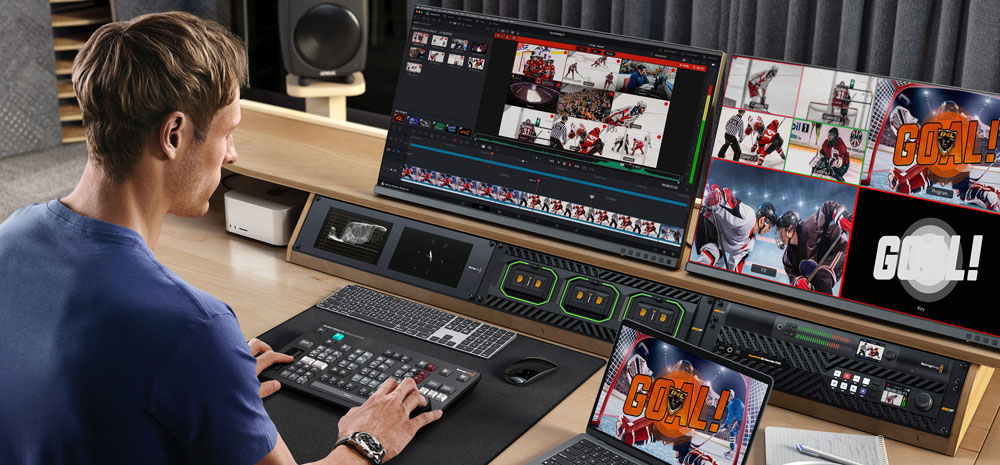

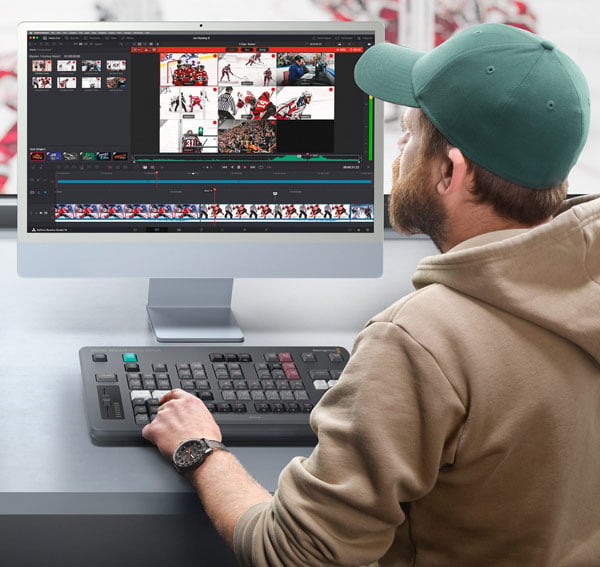

DaVinci ResolveWith HyperDeck ISO Recorder 100G you can use DaVinci Resolve for live action replay. DaVinci Resolve replay uses the HyperDeck ISO Recorder 100G to record into network storage and then DaVinci Resolve is connected to the same shared storage to select views for replay. DaVinci can display all ISO recordings in a multi-view in the viewer, allowing you to select a camera and go on air! It can even play a stinger! While the replay airs, you still see the multi-view with all views playing in real time. Then select a different view to preroll back and play it. Once finished, press dump to run the stinger and complete the replay! Then load that replay into the timeline to build a highlights reel.

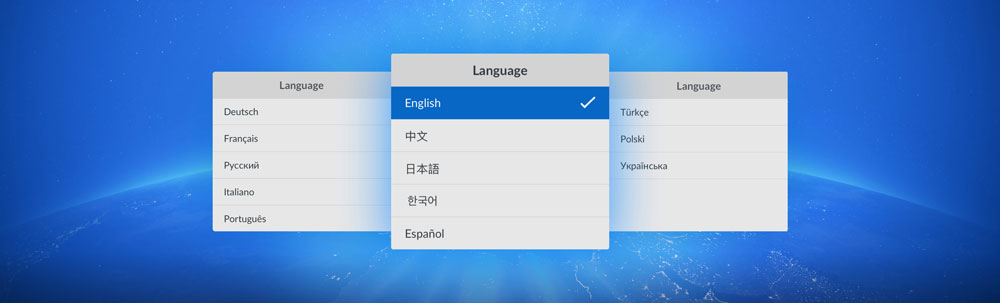

Supports Multiple LanguagesHyperDeck ISO Recorder 100G supports multiple languages so you don't need to learn a new language just to use it. You get support for English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish and Ukrainian languages. When initially powered on for the first time, HyperDeck ISO Recorder 100G will display a menu for selecting a language, plus you can always use the LCD menu to change the language at any time in the future. Once a language is selected, the LCD menus will change, plus the overlays on the monitoring output will also change to the selected language. This means HyperDeck ISO Recorder is perfect for doing work anywhere in the world.
