Blackmagic Design - 'ATEM Studio Converter 2'

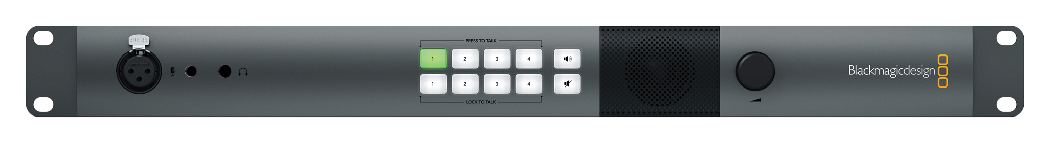

Blackmagic Design ATEM Studio Converter 2

faster signal output over distances up to 28 milesIntroducing the Blackmagic ATEM Studio Converter 2, designed for seamless signal integration. Unlock the potential of SDI signals by effortlessly converting them through optical fibre, rendering them compatible with a variety of video switchers. Harnessing the power of optical fibre technology, this converter eradicates the limitations of distance and quality degradation, enabling your signals to journey extraordinary lengths without compromise. By synergizing with the ATEM Camera Converter, you gain the remarkable ability to transmit video signals up to an astonishing 28 miles, shattering the conventional constraints of a mere 300 feet achievable with copper cables.

Live Camera Connections

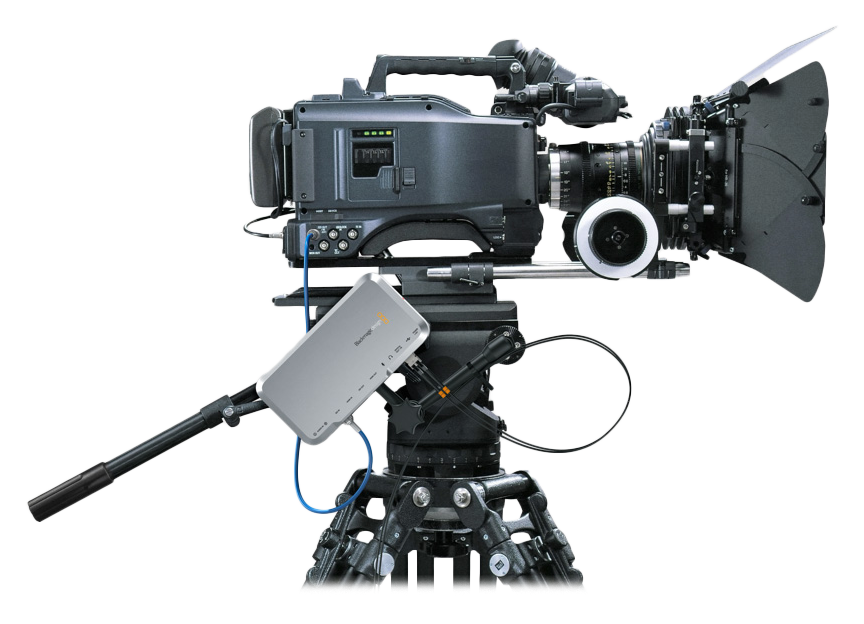

Blackmagic Design ATEM Camera Converter connected to a camera, Blackmagic Design ATEM Studio Converter 2

The perfect solution for live eventsATEM Converters are the perfect solution for live music and sporting events where you need to place cameras in remote locations such as on race tracks or near to a stage, where there is a huge distance between the live action and your switcher! Connect up to 4 ATEM Camera Converters to each ATEM Studio Converter and get multiple camera talkback, so all camera operators can communicate with the switcher operator using talkback that is embedded into channels 15 and 16 of the optical fiber SDI connection.

The ATEM Converters

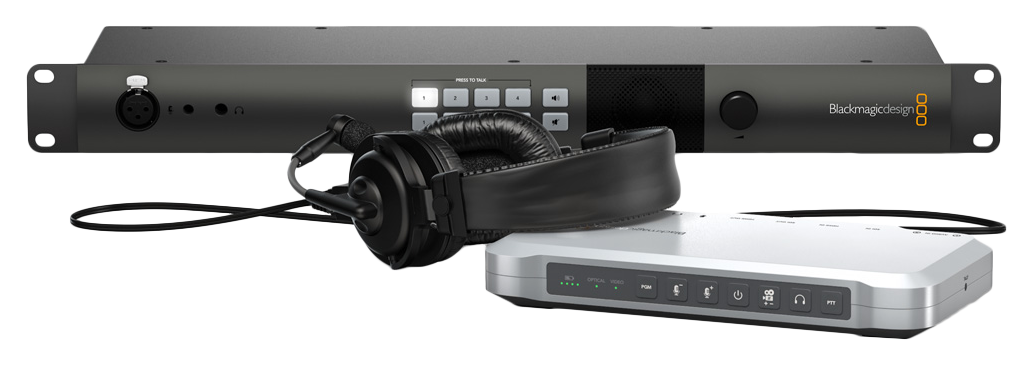

Blackmagic Design ATEM Camera Converter, Blackmagic Design ATEM Studio Converter and a headset, Blackmagic Design ATEM Studio Converter 2

Designed for live productionThere are two ATEM converters for use at opposite ends of a live camera connection! ATEM Camera Converter converts your camera’s SDI or HDMI output to optical fiber, with embedded external audio and talkback from the camera position. The machined aluminum design is lightweight, strong and includes an internal long life battery for increased portability. ATEM Studio Converter’s rack mount design has 4 bi-directional optical fiber connections so you can connect multiple camera converters and convert the optical fiber input to SDI and de-embed audio using XLR connections.

Optical Fibre Link

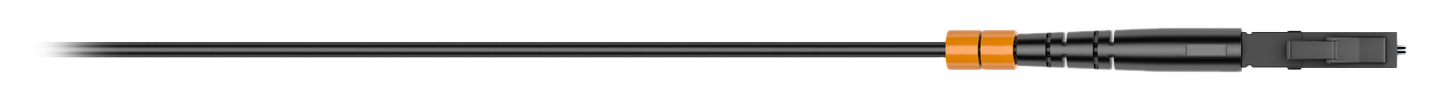

Blackmagic Design optical fibre cable, Blackmagic Design ATEM Studio Converter 2

Work over lengths of up to 28 milesATEM converters connect using industry standard single mode optical fibre cable with standard LC connectors. Optical fibre lets you connect way beyond the distance of traditional copper cables. It’s widely available, easy to use and affordable because it's the same optical fibre cable used in computer networking. ATEM Camera Converter and ATEM Studio Converter use the standard SMPTE specification for optical fibre connections using standard single mode optical fibre running at 1310nm, which allows you to connect at distances up to 28 miles!

Talkback And Tally

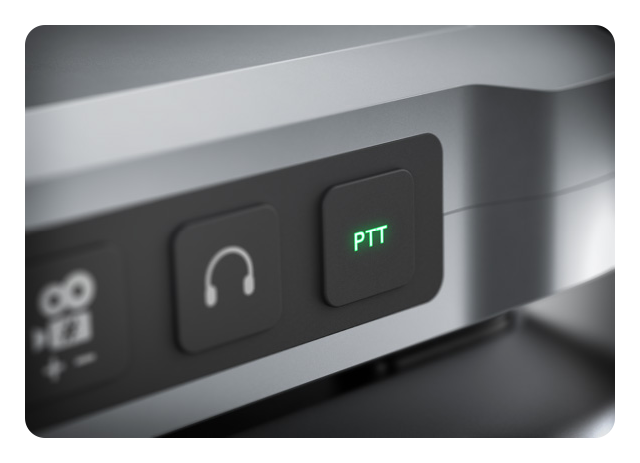

Talkback light for the ATEM Camera Converter, Blackmagic Design ATEM Studio Converter 2

TalkbackDuring busy live production it's vital to be able to talk to your camera operators. ATEM Camera and Studio Converters take advantage of the 16 channel SDI audio standard and embed the talkback into rarely used channels 15 and 16. ATEM Camera Converter uses standard PC or iPhone type headsets while the ATEM Studio Converter uses more robust aviation headsets that are available in hundreds of different styles! ATEM Studio Converter also features a built in microphone input and speaker so you don't need to use a headset.

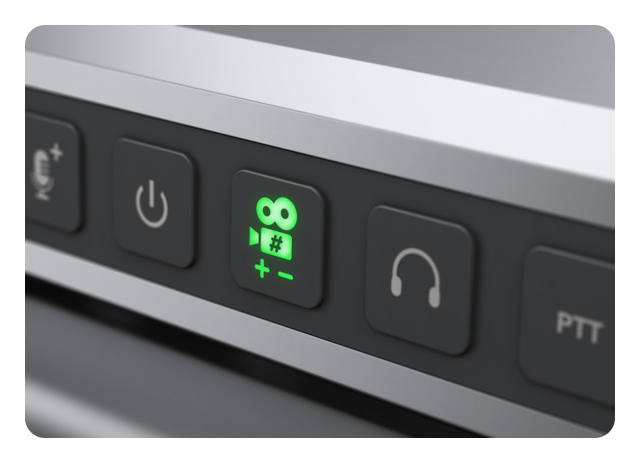

Tally light for the ATEM Camera Converter, Blackmagic Design ATEM Studio Converter 2

TallyIt's important for camera operators to know when their camera is on air, so they don't inadvertently change their shot when millions of people could be viewing! ATEM Camera and Studio Converters support SDI tally output from the program feed of switchers, such as Blackmagic Design's ATEM range of live production switchers. When a camera is on air a red LED illuminates on the ATEM Camera Converter and a red tally border is displayed on the converter's SDI and HDMI monitoring outputs!

Premium Quality Design

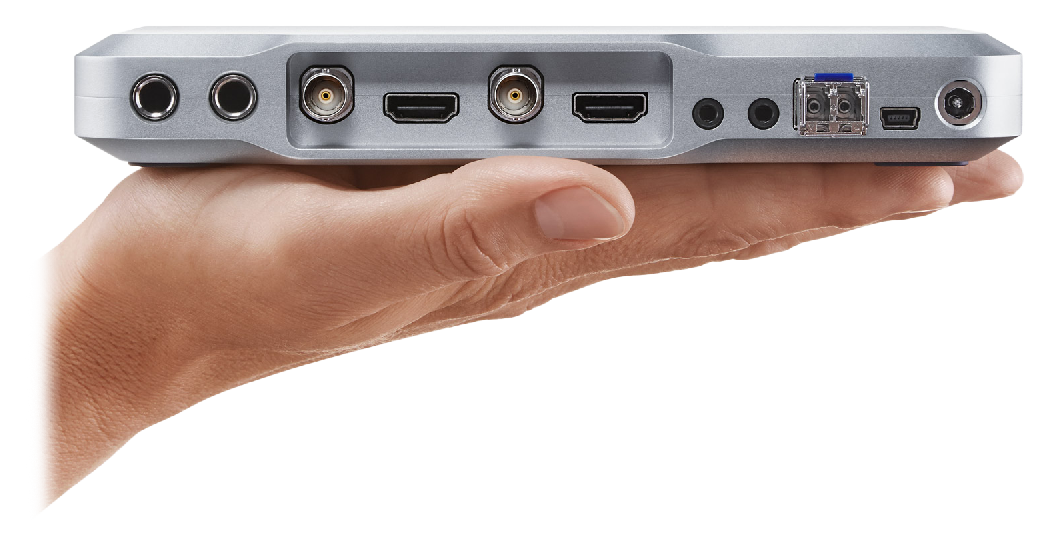

Hand holding the ATEM Camera Converter showing the rear view, Blackmagic Design ATEM Studio Converter 2

Machined from a solid block of aluminiumATEM Camera Converter is machined from a solid block of aluminium to withstand daily use in live production environments. The integrated belt clip lets you operate cameras easily while connected to headsets. ATEM Studio Converter features a stylish machined aluminium front panel for a super tough design that also includes microphone and headset connections, backlit press to talk buttons, plus a built-in speaker and volume control for talkback. All video and audio connections are on the rear panel and the built-in power supply supports 110V to 240V.

Highest Quality Connections

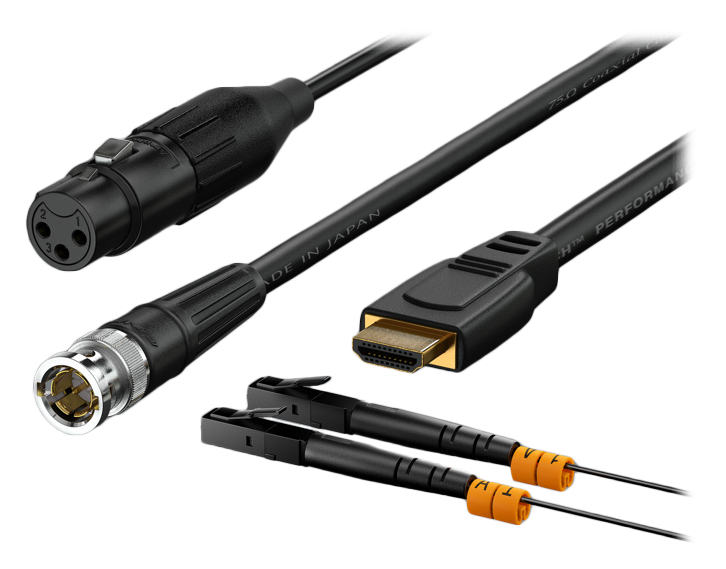

a variety of useable cables, Blackmagic Design ATEM Studio Converter 2

Use pro or consumer camerasATEM Camera Converter features high quality SDI and HDMI inputs for connecting professional SDI and consumer HDMI cameras. It includes 1/4″ stereo jack mic/line inputs so external commentary and effects audio can be sent from the camera position. ATEM Studio Converter has 4 bi-directional fibre converters that convert each camera feed from optical fibre to SDI and output balanced analogue audio on XLR connectors. Also included is loop program SDI in, plus AES/EBU microphone and headphone loops that let you link multiple ATEM Studio Converters.

Smart Software

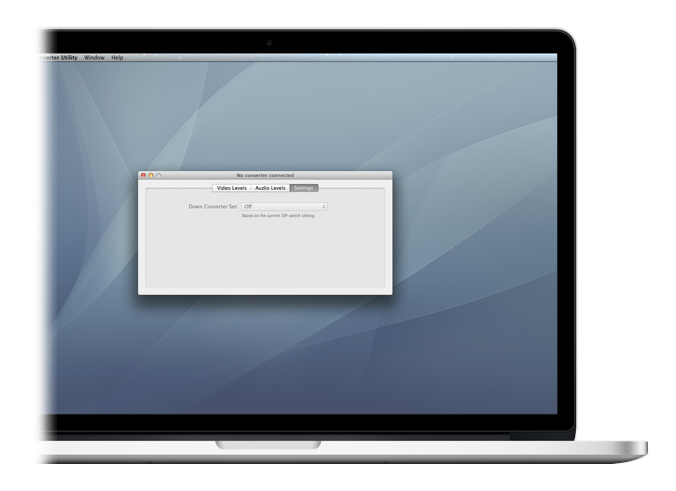

open laptop screen, Blackmagic Design ATEM Studio Converter 2

Keep up to dateBlackmagic Design’s Converter Utility Software lets you quickly set up converter functions, including camera numbers and audio levels. The utility software also lets you update your ATEM Converters with the latest firmware via a USB connection on each converter. This means you can download firmware updates to add new features or support for new video formats. Converter Utility Software is available for both Mac OS X and Windows.
