Blackmagic Design ATEM Streaming Bridge
Blackmagic Design ATEM Streaming Bridge, for ATEM Mini Pro, H.264 to SDI and HDMI
Email me when the availability or price changes

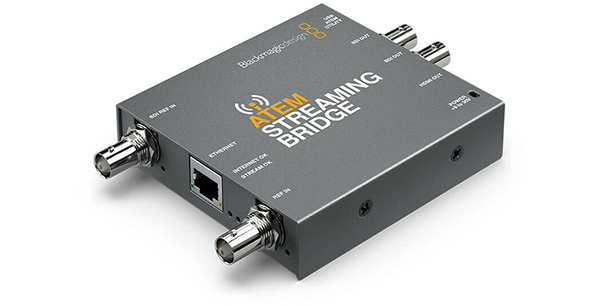

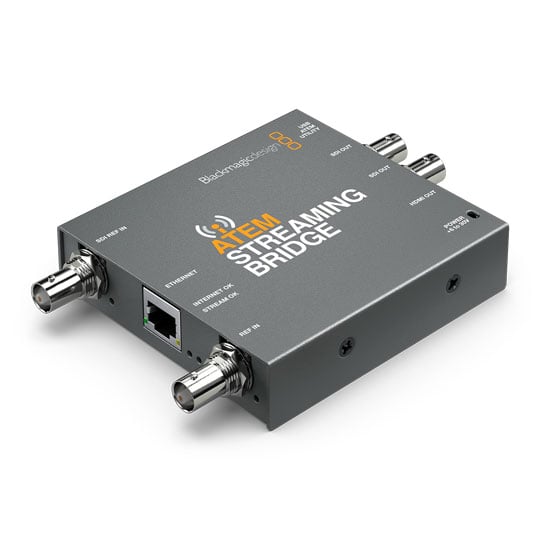

Blackmagic Design - ATEM Streaming Bridge
the perfect way to create a remote broadcast studio The ATEM Streaming Bridge is a video converter that lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. This means you can send video to remote locations around your local Ethernet network, or via the internet globally. That's possible because it uses advanced H.264 codecs for higher quality at very low data rates. Imagine broadcasters and bloggers collaborating on shows and creating global networks of ATEM Mini Pro remote broadcast studios. Setup is easy as the ATEM software utility can create setup files that you can email to remote ATEM Mini Pro studios. ATEM Streaming Bridge is the perfect way use ATEM Mini Pro as a remote broadcast studio.
Operating System Compatibility
Mac 10.14 Mojave
Mac 10.15 Catalina or later.
Windows 8.1 and 10,
both 64-bit.
Streamer Bridge Connections
SDI Reference Inputs1 x 3G-SDI
SDI Video Outputs2 x 3G-SDI
SDI Audio Outputs2 Channels embedded in HD-SDI
HDMI Video OutputHDMI type A out.
HDMI Audio Outputs2 Channels embedded in HDMI
SDI Rates1.5G, 3G
Reference InputBlack burst and Tri‑Sync
EthernetEthernet supports 10/100/1000 BaseT
Updates and Configuration1 x USB Type-C
