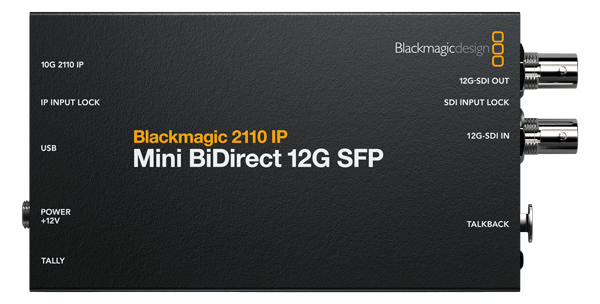

Blackmagic 2110 IP Mini BiDirect 12G SFP
Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter, 1x 12G-SDI Input, 1x 12G-SDI Outputs, 10GbE SFP
Blackmagic - '2110 IP Mini BiDirect 12G SFP Convereter'

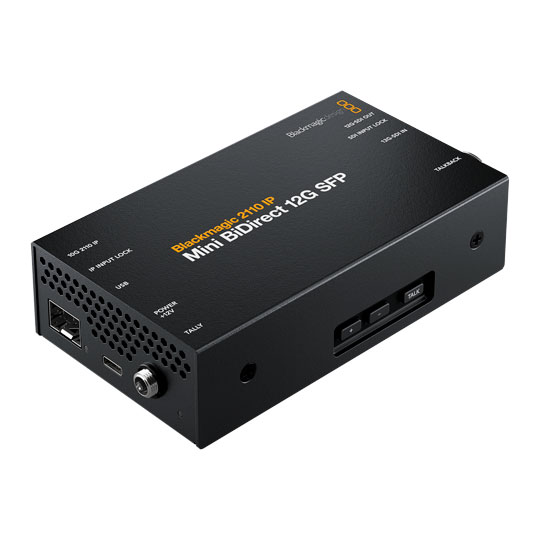

BiDirectional SMPTE 2110 IP ConverterBlackmagic 2110 IP Mini BiDirect 12G SFP lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems over long distances using optical fiber. Its 12G-SDI connection supports SD, HD, and Ultra HD standards up to 2160p60 and even handles the SDI program return. Blackmagic 2110 IP Mini BiDirect 12G SFP also has a 5-pin XLR talkback headset connection with talkback volume control and a press-to-talk button. The SFP socket will accept 10G Ethernet, 3G-SDI, 6G-SDI, or 12G-SDI optical modules. It also includes a 12 DC power supply.
Low Cost SMPTE-2110 IP Convertors
Build Professional SMPTE-2110 Broadcast SystemsThe Blackmagic 2110 IP Converters have been designed to integrate SDI equipment into 2110 IP broadcast systems. The rack mount models can be installed in equipment racks right next to the equipment you're converting. However, with Blackmagic Studio Cameras, Blackmagic Audio Monitor 12G G3, and the SmartView 4K G3, you can build most of your SMPTE-2110 system without converters. Plus most Blackmagic SMPTE-2110 IP video products can be remote powered! But adding converters means you get a low-cost way to transform all your video equipment to SMPTE-2110. Simply add a Blackmagic 2110 IP Converter to live production switchers, disk recorders, streaming processors, cameras, TVs, and more.
SMPTE-2110 IP Video Standard
Conforms to the SMPTE‑2110 IP Video StandardBlackmagic 2110 IP products conform to the SMPTE ST-2110 standard for IP video, which specifies the transport, synchronization, and description of 10-bit video, audio, and ancillary data over managed IP networks for broadcast. It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that’s also generated from the PTP clock. Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio, and SMPTE-2110-40 for ancillary data. Plus Blackmagic 2110 IP products support multicast, which is an efficient way of distributing video, audio, and data from a single source to multiple destinations.
10GbE RJ45 and SFP Models
Uses Simple 10G Ethernet for Low CostBlackmagic 2110 IP Converters are available in models with RJ-45 connectors for simple Cat6 copper cables or SFP sockets for optical fiber modules and cables. Using simple Cat6 copper cables means you can build SMPTE-2110 systems at a dramatically lower cost. The cables are simple and Ethernet switches for 10G Ethernet are very common. In most cases, modern buildings already have 10G Ethernet cable installed, so you can use the cables you already have! Plus copper cables can remote power devices such as converters and cameras. There are also models for optical fiber Ethernet. Optical fiber at 10G speed is much lower cost than 25G or 40G Ethernet. You can even use 3G, 6G or 12G‑SDI modules.
Easy Point-to-Point Installation
Incredibly Easy to InstallOne of the biggest problems with SMPTE-2110 is needing an IT tech on standby to keep video systems running. Blackmagic 2110 IP converters solve this problem because they can connect point to point, so you don't need to use a complex Ethernet switch if you don't want to. That means you get the advantage of SMPTE-2110 IP video with simple Ethernet cables, remote power and bidirectional video. It’s just like an SDI workflow. You can plug cameras into rack converters and get all the camera control, program video, power and tally, with a single cable. Or connect an HDMI converter to a rack converter for remote monitors. Everything automatically configures and just works.
Simple Point to PointYou can connect the converters point to point with a simple Ethernet cable between the converters. An example is between a rack and a monitor converter or camera. The point to point connection auto configures so you don't need to enter any settings. It's a simple cable that you just plug in! With point to point connections, you get the perfect solution for live events as the Ethernet cable can make connecting to cameras extremely simple with all control, power and video down a single cable.
Connect Via Ethernet SwitchWhen working in larger SMPTE-2110 systems, such as broadcast, you can connect all your video gear to an Ethernet switch. In this case, you just plug everything into the Ethernet switch and then make the connections between devices by configuring the Ethernet switch. It works just like a large video router as all connections are made between the SMPTE-2110 devices. Plus all Blackmagic 2110 IP products support the NMOS protocol. It's more complex to configure, but is totally flexible.
NMOS Protocol Support
Includes NMOS Protocol
for Building a Virtual RouterAll Blackmagic 2110 IP Converters support the NMOS interface specifications so all 2110 IP video devices can operate together as a large virtual router. Plus Videohub Smart Control can route sources to destinations on 2110 IP networks because it can act as an NMOS controller. The NMOS interface specification describes how SMPTE-2110 devices are discovered and controlled on IP networks. Blackmagic 2110 IP Converters support IS-04 for discovery and registration of IP video devices and IS-05 for connection management between IP video devices. This means you can make connections between sources and destinations just like a traditional SDI router.
True 10-Bit Video Support
Get True 10‑Bit Broadcast Video QualityBlackmagic 2110 IP Converters are designed to support the highest quality video. 10-bit is the most commonly used television standard as colors can be represented with 4 times the precision of 8-bit video. Only working with 10-bit video will ensure all images are a perfect pixel for pixel transmission of the original SDI source, so you’re always working at the absolute highest quality possible. This means you don't lose quality, even at high frame rate Ultra HD, so you get the sharpest green screen keying plus crisp titles and color correction! Plus Blackmagic 2110 IP Converters include SDI re-clocking so all devices in your studio receive a regenerated signal with very low SDI jitter.
Blackmagic IP10 Codec Support
Get Low Cost High Frame Rate Ultra HDBy using 10G Ethernet, Blackmagic SMPTE-2110 IP video products can be smaller, lower power, and more affordable. Plus 10G Ethernet can allow products to be remotely powered. However, when using Ultra HD above 30fps, there is not enough bandwidth for uncompressed 10-bit video. Although all HD standards and Ultra HD at 30fps or less can be sent uncompressed in 10-bit. However, high frame rate Ultra HD needs a codec for data rate reduction. The Blackmagic IP10 codec solves this problem! It has a low latency of 8 samples, is open standard, and has no license fees. Plus it's an extremely small codec that uses very few FPGA resources, so it ensures SMPTE-2110 IP video products remain affordable
2160p60 Support
Supports All SD, HD and Ultra HD Standards to 2160p60Blackmagic 2110 IP Converters have connections that support SD, HD and Ultra HD video standards. This means it can connect your existing SDI broadcast equipment to new IP based infrastructure. In standard definition, Blackmagic 2110 IP Converter supports both 525i59.94 and 625i50 standards. In high definition, Blackmagic 2110 IP Converter supports all 720p video standards up to 720p60, all 1080 interlaced standards up to 1080i60 and all 1080p standards up to 1080p60. In Ultra HD you get support for all standards up to 2160p60. The converters will auto switch to a new video standard when the input changes. Plus the multi channel models can run a different video standard on each channel.
Remote Admin Support
Supports Remote Administration for Settings and UpdatesWhen you have a lot of equipment installed throughout complex broadcast systems, remote administration of the equipment is vital for diagnosing problems, changing settings and upgrading software. The Blackmagic Converter Utility can be downloaded free of charge so you can update the converter software and change settings. Plus it’s available on both Mac and Windows. The software can be connected directly to the USB port or on the rack mount models you can connect via the Ethernet connection to your IP network. Admin via Ethernet means you can change settings on multiple converters from a single computer. That’s great when the converters are located in hard to reach locations.
Multiple Language Support
Localised for 13 Popular LanguagesBlackmagic 2110 IP Converters support multiple languages in the set up utility or the menus on models with an LCD, so this means you can set the user interface to the language you prefer. You get support for English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish and Ukrainian languages. Simply go into the front panel LCD menu to set the language, plus you can always change languages at any time in the future. Once a language is selected, the menus on all the LCDs will change to the selected language. This means Blackmagic Design products are perfect for installation into live production systems that are transported for global work.
