Pure Base 600 BGW20 Orange Tempered Glass PC Case from be quiet!

be quiet! Pure Base 600 BGW20 PC Case in Orange

EXCEPTIONALLY SILENT AND FUNCTIONAL Presenting the Pure Base 600 BGW20 PC case in Orange from be quiet! Designed with durable tempered glass, this windowed PC case boasts unrivalled flexibility with astounding cooling and silence features with Two pre-installed Pure Wings 2 fans at the ready to keep your system cool. This ingenious concept from be quiet! is built for those requiring a highly versatile build and design. Pure Base offers effective airflow, silence and operation – this is the mid-tower case you can rely on.

Other colours and cases from the Pure Base 600 series:

Pure Base 600 BGW21 Pure Base 600 BGW20 Pure Base 600 Black Pure Base 600 Silver

Maximum of Possibilities for your Desired System

case design

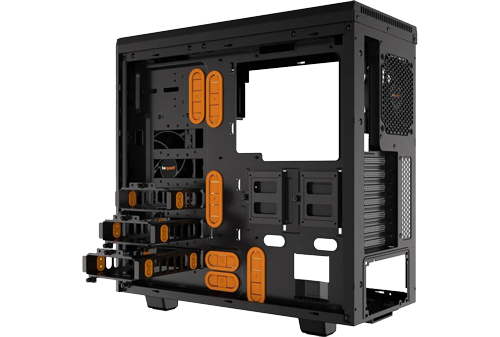

HIGHLY VERSATILE CONSTRUCTION The Pure Base 600 BGW20 Windowed case features flexible installation options, thanks to the many possibilities for system component selection. The three HDD slots can be repositioned to allow installation of the largest of graphics cards and the ODD cage is removable for maximum flexibility of water cooling and drives.

Characteristics of the Pure Base 600 Windowed Chassis

Flexibility for individual requirements Enjoy a wonderful build with the be quiet! Pure Base 600 BGW20 in Orange, which features a high-quality and fully-windowed side panel offering a perfect view of components inside your chassis. The Pure Base 600 BGW20 provides front, top and rear areas for water cooling radiators up to 360mm. It's completely flexible for your own individual requirements with enhanced possibilities, thanks to German product conception and design – with an included Three years manufacturer's warranty.

Fans

PURE WINGS 2Two pre-installed Pure Wings 2 fans with nine airflow-optimized fan blades reduce turbulence and increase air pressure: 120mm rear, 140mm front. Permits up to four additional cooling fans.

Radiators

OPTIMIZED FOR RADIATORSOptimized to be the perfect case for liquid cooling. Three areas are specially designed to allow them to be added: front, top and rear. All sizes of radiator up to 360mm.

Windowed Glass

TEMPERED GLASS WINDOWThe window is made of 4mm tinted and tempered glass, and is decoupled from the case with rubber elements to inhibit the transfer of vibrations.

Ingenious Concept for Water Cooling and Silence

Cover Vent

ADJUSTABLE TOP COVER VENT The Pure Base 600 BGW20 top cover is adjustable allowing choice between boosting your system’s cooling or silence. You can close it for more silence, open it partially for more exhaust or leave it open to mount a water cooling radiator.

Equipped with Smart and Effective Silence Features

Silence features

KEEP THE SYSTEM SUPER SILENT This innovative PC case features an integrated 3-step fan controller which supports three fans. With sound insulating material it dampens vibration from top, side and front areas. No one wants a dusty system so with filters at the front and bottom this prevents dust coming into the case.

Specifications
Core Chassis Specifications
Case Edition Pure Base 600 Orange
Case Form Factor ATX
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O 2 x USB 3.0
Drive Bays
  • 8 x 2.5" Internal
  • 3 x 3.5"
  • 2 x 5.25"
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 4 x 120mm
  • 3 x 140mm
Fans Included
  • 1 x 120mm
  • 1 x 140mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/240/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 165 mm
Max GPU Card Length 280/425 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black/ Orange
Chassis Contruction Materials Steel / Plastic Mesh Bezel
Dimensions 220 x 470 x 492 (WxHxD mm)
Weight 8.74 kg (Approx)
Please Note
Additional Information
Scan Code LN79349
Model Number BGW20
GTIN 4260052185438
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
beQuiet!
be quiet! Pure Base 600 BGW20 Silent Case, Window Edition, Orange is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Quiet, well made, quality case. I have had this case for about 3 months now, in that time I've gradually upgraded the old hardware I brought over to my new build - it's a genuine pleasure to work on, the addition of drives, graphics cards and even retrofitting a cooler mounting plate to the back of the motherboard was all done in-situ without removing anything unnecessary from the case. The glass is a lovely touch but is very much a fingerprint magnet - remember to clean the inside surface of the glass before securing it otherwise you'll be dismantling it shortly after again! It is also pretty quiet - all the case fans do a very good job of keeping the interior cool and ventilated and on the medium or low settings are barely audible, only the high-speed setting emitting a hum I'd find noticeable. The only problem I have with the case is the glass - it is definitely slightly harder to work with than a metal side, but that being said it's as easy as I imagine is possible and isn't all that hard - smudging being the biggest pain.
Date published: 2020-02-01
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_79349, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

What is the three setting slider button on the front top of the case for?

Between the power on/off switch and the two lights on the left is a switch with three slider points, and I was wondering what this is for, and if it is connected in my recent build?
Asked by: Frandad
This switch is the fan speed controller - if you have the fans connected to the motherboard this switch is defunct, but if you connect them via the provided sata adapter you can use the switch to adjust the fan speed.
Answered by: aberry9036
Date published: 2020-04-01
