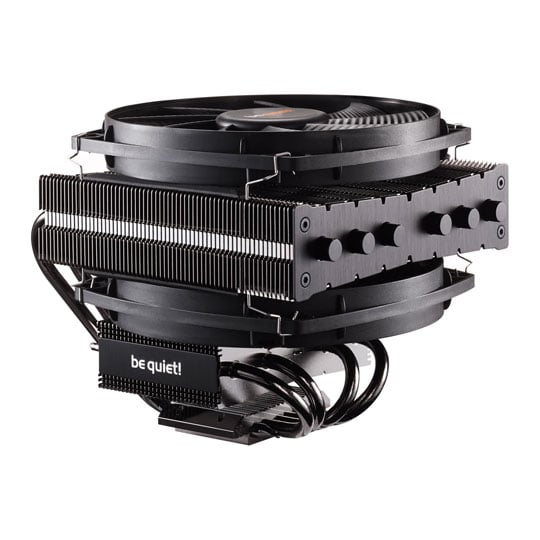

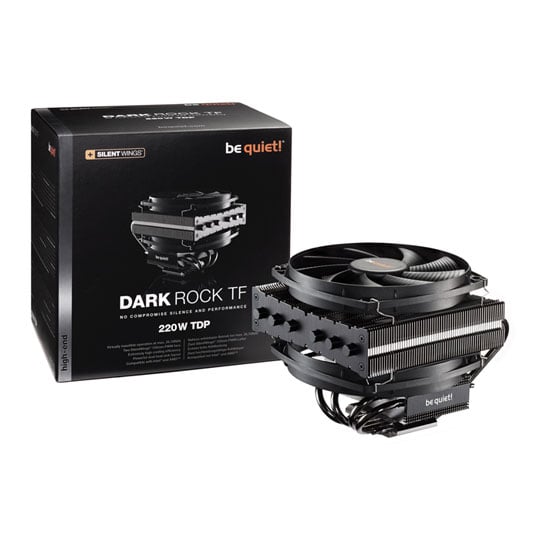

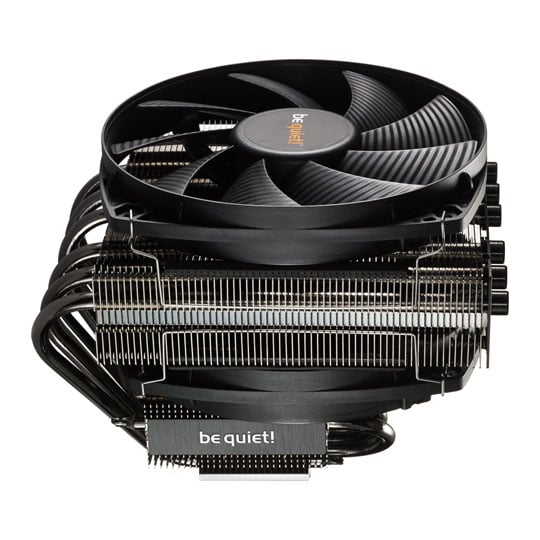

be quiet Dark Rock TF Top Flow Intel/AMD CPU Air Cooler

be quiet! Dark Rock TF, Top Flow Dual Tower CPU Cooler, 6 Heatpipes, 2x 135mm PWM Fans, 220W TDP, for Intel/AMD CPUs

Thumbnail 1 : be quiet Dark Rock TF Top Flow Intel/AMD CPU Air Cooler Thumbnail 2 : be quiet Dark Rock TF Top Flow Intel/AMD CPU Air Cooler Thumbnail 3 : be quiet Dark Rock TF Top Flow Intel/AMD CPU Air Cooler Thumbnail 4 : be quiet Dark Rock TF Top Flow Intel/AMD CPU Air Cooler be quiet Dark Rock TF Top Flow Intel/AMD CPU Air Cooler : video thumbnail 1
Scan code: LN65217 Manufacturer code: BK020
£71.48
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Feb to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview

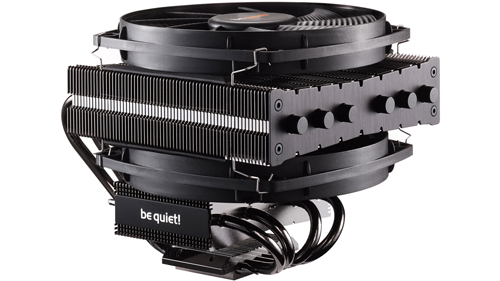

DARK ROCK TF

One of the hardest things to do in a compact PC is quietly cool a high-performance CPU even in extreme overclocking conditions. be quiet!’s top-flow cooler Dark Rock TF offers a solution to this challenge.


True Cooling Beast

Featuring dual heat sinks with anti-vibration rubber inserts, six 6mm heat pipes with aluminium caps, two virtually inaudible Silent Wings 135mm PWM fans (max. 26.7dB(A)) with six-pole motor and fluid-dynamic bearing, and 220W TDP cooling performance, Dark Rock TF is a true cooling beast.

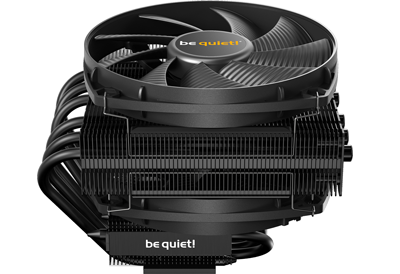

Double-Tower for Double Power

Thanks to its double-tower layout, this cooler is a true cooling marvel with 220W TDP – just perfect for the extreme conditions found in the overclocked CPUs of compact gaming PCs.

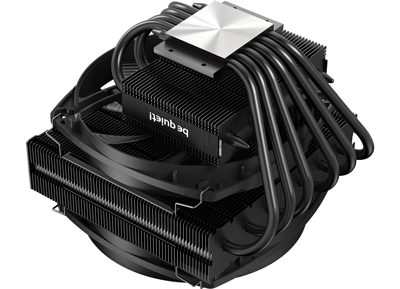

Powerful Cooling for your Components

Dark Rock TF contains two aluminum heat sinks. Two fans are pre-installed, but a single fan assembly is also possible, offering further space savings and even quieter operation.


Cooled by Silent Wings Technology

The cooler is equipped with two Silent Wings 135mm PWM fans. They feature advanced fluid-dynamic bearings, smooth six-pole motors and nine airflow-optimized fan blades. The noise is a meager 26.7dB(A) even with 100% PWM fan speed.

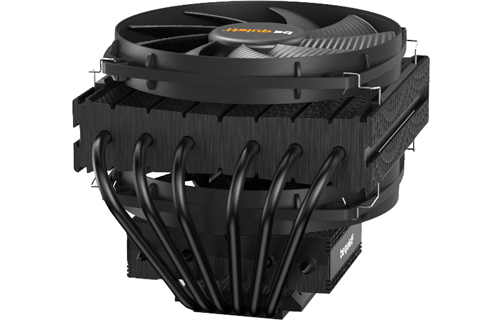

The Centrepiece of Every CPU Cooler

Dark Rock TF has six high-performance 6mm heat pipes with aluminium caps. They carry heat to the optimum location on the cooling fins. The special black coating with ceramic particles makes a perfect transfer of heat possible. Anti-vibration rubber inserts on the cooling fins of the heat sink further dampen noise.

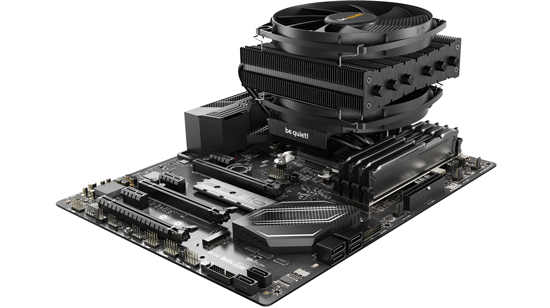

Space-Saving Design with Great Effect

The space-saving topflow design provides ideal cooling, not only for the CPU, but also for surrounding components. It can quietly cool a high-performance, overclocked CPU in a confined space.

Features
• Extremely high 220W TDP cooling performance.
• Dual dark nickel-plated heat sinks with anti-vibration rubber inserts.
• Six high-performance 6mm heat pipes with aluminum caps.
• Two virtually inaudible SilentWings 135mm PWM fans (max. 26.7dB(A)).
• Fans equipped with durable fluid-dynamic bearing and smooth 6-pole motor.
• Space-saving single fan assembly also supported.
• Brushed aluminum covers.
• Compatible with all current Intel and AMD sockets.
• Product conception, design and quality control in Germany.
• 3-years manufacturer’s warranty.
Specifications
Cooler Specifications
Edition Dark Rock TF
Cooler Form Factor Top Flow Dual Tower
Heatpipes 6
Cooler Features
  • Aluminium Fins
  • Aluminium Heatpipe Caps
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011 (Square ILM)
  • 2011-3 (Square ILM)
  • 2066
  • 775
  • AM2
  • AM2+
  • AM3
  • AM3+
  • FM1
  • FM2
  • FM2+
  • LGA 2011 R3
Max. TDP
Fan Specifications
Included Fan Configuration 2 x 135mm
Fan Edition SilentWings PWM
PWM Fan Yes
Fan Bearing Type Fluid Dynamic Bearing
Fan Colour Black
LED Lighting N/A
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 1400 rpm
Max. Fan Airflow 67.8 CFM
Max. Air Pressure 1.85 mm H²O
Max. Sound Level 11.9 - 26.7 dBA
Materials
Cooler Materials Aluminium / Nickel Plated / Copper
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 140 x 108.8 x 162.6 mm (WxHxD)
Total Dimensions 140 x 130.8 x 162.6 mm (WxHxD)
Weight 810 g
Additional Information
Scan Code LN65217
Model Number BK020
GTIN 4260052184233
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

TekSpek Guides
Intel Branding Part I
Intel Branding Part I
Date Issued: 1st Jul 2009

Intel’s been on a mission of late. That mission revolves around grouping and standardising key technologies under various banners that are designed to ensure hardware compatibility and consumer ease of use. We’ll take a closer look at three such technologies that fall under the headings of Centrino, Viiv, and vPro, respectively.

Read More

Intel Core 2 Duo (Conroe)
Intel Core 2 Duo (Conroe)
Date Issued: 20th Oct 2008

The purpose of this TekSpek is to delineate the publicly known features of Intel’s next generation desktop microarchitecture. Codenamed Conroe and officially titled Intel Core 2 Duo, it’s loosely based on the current mobile Yonah (Core Duo) underpinnings.

Read More

AMD AM2
AMD AM2
Date Issued: 20th Oct 2008

The purpose This TekSpek quickly and easily explains AMD’s new processor socket and related technology to the reader, comparing it to AMD’s previous socket types.

Read More

AMD 64 Processors
AMD 64 Processors
Date Issued: 20th Oct 2008

This TekSpek explains what AMD’s AMD64 CPU instruction set architecture (ISA) is, shows what CPUs implement it from both AMD and Intel, and explains what software is available to run on those 64-bit consumer processors.

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Overclocking
Overclocking
Date Issued: 20th Oct 2008

This TekSpek explains why you’d want to overclock your graphics board, the risks in doing so and how you can go about doing it.

Read More

Core 2
Core 2
Date Issued: 14th Jun 2008

There’s been a lot of hype about Intel’s Core 2 recently, even since they launched Core in fact. Words like Conroe, Badaxe and Allendale have been flying around. The bottom line is that Core 2 is the name of Intel’s latest line of CPUs, based on a new micro-architecture, designed for speed and efficiency.

Read More

System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Reviews
be quiet! Dark Rock TF, Top Flow Dual Tower CPU Cooler, 6 Heatpipes, 2x 135mm PWM Fans, 220W TDP, for Intel/AMD CPUs is rated 5.0 out of 5 by 5.
Rated 5 out of 5 by from Review Very good but for my system it required some "massaging" to get it to fit properly
Date published: 2017-10-06
Rated 5 out of 5 by from Great part super service Will definatley use again 5 star service..very satisfied
Date published: 2016-04-06
Rated 5 out of 5 by from Cool and ultra quiet. Really impressed from the get-go with this cooler, from the presentation and build quality to its performance. Looks really nice and feels like a perfect fit for my m-atx build in a Phanteks Enthoo Evolv. Currently I have it cooling a 4670k @ 4.4ghz, on the desktop it sits around 25°C and didn't see it go above 49°C when playing the Witcher 3! Night an day different in terms noise against my old h80, can't really hear it even at max rpm. It also provides cooling to the ram modules and the m.2 ssd which is great too. As for installation, looking around some reviewers had me concerned about the mounting system, trying to tighten the little nuts from the top which looked super awkward. But HiTech Legion's video showed me how it was meant to be done and it was extremely easy to install. Highly recommended for anyone who desires silence while maintaining a decent overclock.
Date published: 2015-08-28
Rated 5 out of 5 by from Fantastic Cooling but difficult to install I purchased this as my H60 was not cooling my CPU efficiently. This is one of the best CPU coolers I have used, first time using bequiet and they do not disappoint in the quality. Although it was difficult to install, I put the bolts the wrong way so it wasn't connecting to the motherboard correctly - if you buy this, check you done it correctly! Be aware it is quite large and just fits in my case. If you're looking for performance and silence as it says on the box, this is the CPU cooler you want!
Date published: 2015-07-07
  • y_2020, m_2, d_16, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_4
  • loc_en_GB, sid_65217, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Is it compatible with socket 2011-3 (x99) ?

Asked by: Ionut
should be, says on their specs it fits 2011-3 (Square ILM)
Answered by: ChocoMilkShark
Date published: 2017-12-10

Ram clearance

I have a Gigabyte GA-990X-GAMING sli motherboard. Will this block any of the ram slots when fitted. I'm using corsair vengeance pro ram. Thanks
Asked by: Sofala
should be but it depends on the orientation of the cooler, id recommend low profile ram to be safe
Answered by: ChocoMilkShark
Date published: 2019-09-27

Would this fit an Aorus z390 Extreme motherboard?

I'm thinking of pairing this with a Gigabyte Aorus z390 Extreme motherboard. Would the cooler have clearance considering the z390 extreme has some big VRM heatsinks?
Asked by: Glennmartyn
Hi, Unfortunately, we will not test these two products together so we would not be able to guarantee what the clearance would be, if any. We do apologise for this. Kind regards,
Answered by: LukeW
Date published: 2019-03-13

Does it support AM4

On Be Quiet! website, it states it does support AM4, but on the spec section, it doesn't state it. Can you confirm if this one does? Or is it an older version of it?
Asked by: panda986
Good Morning, Yes, this should support AM4. Kind Regards
Answered by: LukeW
Date published: 2019-06-26
