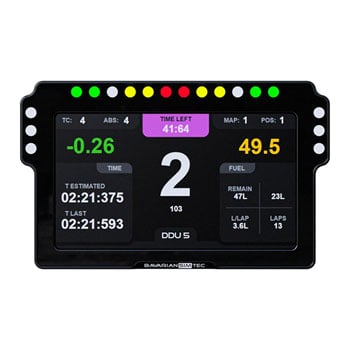

BavarianSimTec DDU5 – Professional 5" Display for Racing Simulators
The BavarianSimTec DDU5 is a compact 5-inch digital dash display unit designed for sim racing enthusiasts, replicating professional racing dashboards like the Bosch DDU10. It integrates real-time telemetry data to enhance immersion and performance tracking in virtual races. Built for compatibility with popular sim racing software, it mounts easily to rigs and supports various racing disciplines including F1, GT, rally, and drift.
High-Resolution Display
The DDU5 features a 5-inch LCD screen with 800x480 resolution and 60Hz refresh rate for smooth, vibrant visuals. It delivers 350-500 nits of brightness, ensuring clear visibility even in well-lit environments or direct sunlight. This high-lumen output outperforms many budget IPS panels, maintaining colour accuracy and wide viewing angles during intense sessions.
Durable Aluminium Construction
Encased in a full 6061 laser-engraved aluminium housing, the DDU5 offers robust protection and a premium anodized finish that resists wear. The enclosure enhances heat dissipation and provides a professional aesthetic suitable for high-end sim rigs. Its compact design allows flexible mounting without adding bulk to the setup.
Customizable RGB LED Indicators
Equipped with 12 shift lights and 6 flag LEDs, the RGB system supports adjustable brightness and colours for personalized alerts like RPM shifts or nearby car warnings. These LEDs integrate seamlessly with software for dynamic effects, such as flashing pit limiters or side flags, reducing reliance on audio cues. The setup enables quick data glances, improving reaction times in races.
Software Compatibility and Setup
The DDU5 works plug-and-play with SimHub, allowing easy configuration of dashboards via USB connection to a PC. It supports community layouts for different vehicles and tracks, including RPM, gear, lap times, and speed telemetry. Pre-made profiles simplify installation, with options to switch pages via touchscreen or external buttons for mid-race adjustments.
Enhanced Immersion and Versatility
By offloading in-car dash info to the external unit, the DDU5 increases vertical field of view, mimicking real motorsport setups for more realistic driving. It handles endless data displays tailored to user needs, boosting overall sim racing enjoyment. Available through retailers like Bavarian SimTec, it appeals to both beginners and pros seeking pro-level features at an accessible price.
Features
• 5" LCD with sharp resolution, 350 lumens, 60 Hz.
• 3|12|3 configurable LEDs with clear visibility without hot spots.
• 6061 CNC anodized aluminium + Gorilla Glass.
• MagicArm with 1/4" T-Nut, base bracket and Asetek extensions.
• Plug and play via USB-C (includes 2m USB-A to USB-C cable).
• Native support for SimHub , JRT and Z1 Dashboard.
What's in the box:
DDU5
MagicArm (1/4" threads)
1/4" to M8 Aluminium Adapter
M8 T-Nut
2m USB A to C cable
Wheelbase Mounting Bracket
Asetek mounting extensions
