Portable PA System

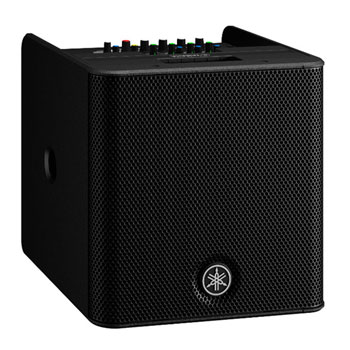

Yamaha - Stagepas 200BTR

Yamaha Stagepas 200

Please note: This item is B-Grade. Packaging may be damaged or missing and there may be cosmetic imperfections and slight signs of use.

MOVE THE AIR, MOVE YOUR AUDIENCE Yamaha's newly released STAGEPAS 200BTR provides all the features of a high quality portable PA system in a remarkably compact, cube-shaped enclosure. Alongside its portability and sound quality, it offers ample functionality and mixing capacity, intuitive operation and support for Bluetooth audio streaming and remote control. STAGEPAS200BTR included the battery pack, STAGEPAS200BTR is suitable for a wide range of applications, from street performances to events, parties and speeches.

A 1.4” HF + 8” LF high quality coaxial compression driver is powered by a 180W Class D amplifier, delivering best-in-class sound pressure, precise phase response, natural high frequency dispersion and remarkably detailed sound. The onboard five-channel (3 mono mic/line and 1 stereo line) digital mixing section offers unprecedented flexibility for a compact ‘one box’ PA system. Each input channel is equipped with Yamaha’s proprietary 1-knob EQ/preset and 1-knob Effect controls. Together with the ‘Mode’ compressor on the main outputs, users can easily and intuitively create the sound they want.

The 1-knob EQ/preset for input channels 1-3 also features a built-in microphone simulator, allowing the optimal sound for acoustic guitars to be set with a single control. A priority ducker is provided to reduce the volume of other sources when a microphone or specific source is in use, while a smart feedback suppressor automatically eliminates unwanted feedback.

Please note: Battery IS included

90° × 90°Coverage Angle

8" / 2"LF Driver / HF Driver

125 dBMax SPL

at a glance • 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
• Main output multi-band compressor “MODE”
• 1-knob EQ/preset for each channel
• High-grade SPX digital reverb (4 program, parameter control), delay, chorus
• Supplied rubber stand allows inclining at 30 or 60 degrees
• Compatible with audio streaming via Bluetooth
• Hi-Z input

Fast, Intuitive Operation of Crucial Live Sound Features

With astonishing high-quality sound and mixing capability far beyond what you would expect from its minimalist design, the STAGEPAS 200 is a premium portable PA system that performs well above its weight class. With fast, intuitive operation of crucial live sound features, and superb overall performance, your audience will be stunned by your sound, and likely puzzled by your diminutive setup.

The STAGEPAS 200 comes in two models— one with a high-capacity lithium-ion battery, the other compatible with optional batteries, giving you the flexibility to inspire performers and audiences alike in virtually any environment you choose, from street performances with 1-3 performers, to events, parties, and speeches.


Sound that astoundsFeaturing a high-quality coaxial transducer design, the STAGEPAS 200 is capable of delivering best-in-class sound pressure, precise phase response, and a very natural dispersion of high frequencies. Adopting some of the same expertise used in our high-end Professional Audio gear, this mighty yet minimalistic powerhouse will stun your audience with the full dynamic range and response of your performance.


Mix it upThe STAGEPAS 200 puts a strong emphasis on its “all-in-one” designation offering all the connectivity, performance functions, and mixing capability you would ever need for small-scale duo or trio performances— all packed into a compact 300 mm cube-style cabinet. Equipped with a digital mixer that can be controlled remotely for up to 5 channels, 3 mic preamps, and a comprehensive range of practical functions.

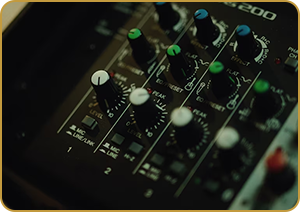

Dial in and vibe outThe simple, intuitive operation of the STAGEPAS 200 makes dialing in your ideal sound a painless— even enjoyable process. Each channel is equipped with a 1-knob EQ/preset and SPX digital effects, along with the master output MODE compressor, enabling fast yet powerful adjustments to your sound, while channels 1-3 feature microphone simulators included in 1-knob EQ/preset can also add instantaneous authenticity to acoustic guitars.

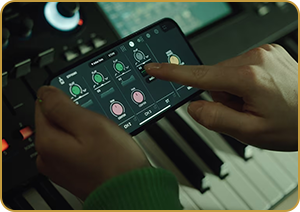

Convenient, creative remote controlThe STAGEPAS Controller app, for both iOS and Android devices, gives you real-time remote control of both volume and EQ. Additionally, the app allows for more precise adjustment detail than the main unit’s interface such as EQ, Reverb, Compressor, Microphone simulators, Ducker, etc. to maximize the capabilities of your STAGEPAS 200. You can save these settings in “scenes” stored on the app to be recalled any time for consistent sound and reduced setup time.

Great Sound. Anytime. Anywhere.

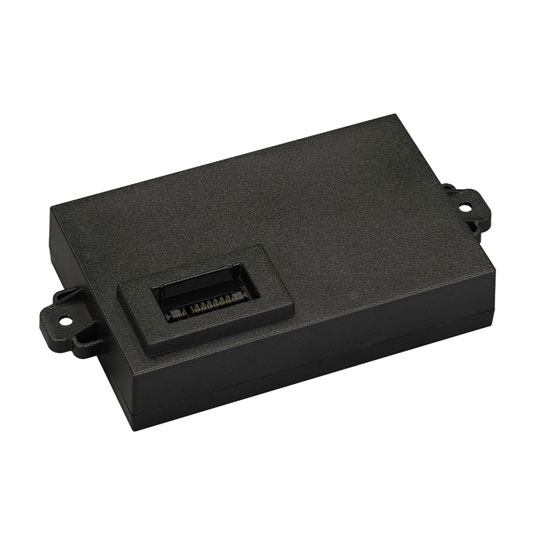

10 Hours of non-stop performanceCompatible with a large-capacity lithium-ion battery allowing up to 10 hours of continuous operation, the STAGEPAS 200 reliably delivers excellent performance even in remote locations where no power source is available. The BTR-STP200 battery ships with the STAGEPAS 200BTR.


Bluetooth® ConnectivityBluetooth functionality enables wireless connection for easy audio playback via smartphones and tablets. It also allows use of the dedicated STAGEPAS Controller app for mixer control and adjustment.

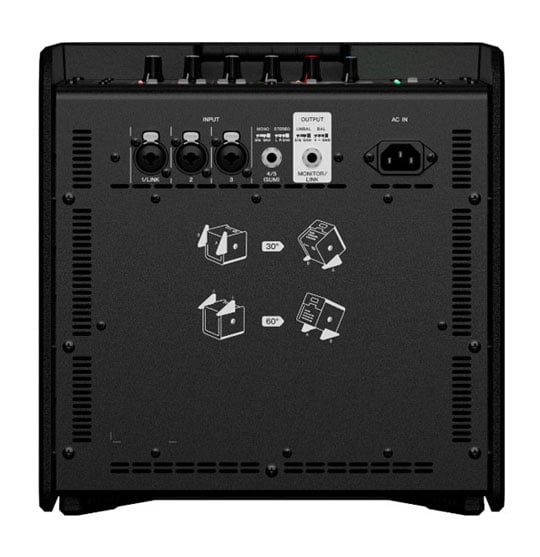

The right direction The rubber stand on the base of the cabinet lets you incline the unit at a 30 or 60 degrees tilt angle to adapt to your chosen performance environment or application. This allows placement of the STAGEPAS 200 facing the audience as a fill speaker, or towards the performers when using as a floor monitor.


Mounting possibilitiesThe bottom of the cabinet houses a 35 mm diameter pole mounting socket, allowing the STAGEPAS 200 to be mounted on a speaker stand or used in an installation with a subwoofer using a distance rod.

Yamaha Portable PA System STAGEPAS 200 - An Overview

The Tech Spec

Features Specification
System Type 2-way, bi-amplified powered speaker + mixer
Frequency Range (−10dB) 60 Hz – 20 kHz
Coverage Angle (Horizontal × Vertical) 90 ° × 90 °
Crossover 2.0 kHz, 24 dB/Oct slope
Measured Maximum SPL (Peak) IEC noise@1m 125 dB SPL
Power Requirements 100 V – 240 V, 50/60 Hz
Power Consumption 10 W (idle), 20 W (1/8 power)
Dimensions (W × H × D) 300 × 307.5 × 301 mm
Weight 12.0 kg (main unit only)
Speaker unit Type Coaxial speaker + compression driver
LF 8" cone, 2.0" voice coil
HF 1" throat compression driver, 1.4" voice coil
Floor Monitor Angle 30 ° or 60 °
Mixing Channels 5
Analog Inputs Mono Mic/Line × 3, Stereo Line × 1
Bluetooth Audio A2DP (SBC, AAC), Ver 5.0, Class 1
Power Amplifier Class-D
Number of Input Channels N/A
Frequency Response -3dB N/A
Frequency Response -10dB N/A
Power rating (Peak) N/A
Power rating RMS N/A
Speaker size N/A
Enclosure Type N/A
Net weight
Shipping weight N/A
Connectivity N/A
Connectivity (Output)
Bluetooth No
Battery Powered No
Wifi No
App control No
Rigging Points No
Pole Mountable No
Integrated Bracket No
Sub Woofer No
Built in DSP No
Front of House No
Floor Monitor No
