(B-Stock) Focal - 'Trio6 Be' 3 Way Monitor Speaker (Single)

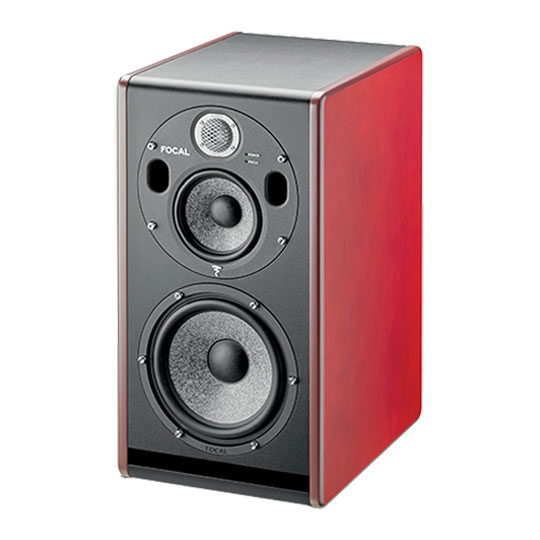

(B-Stock) Focal - 'Trio6 Be', 450W 3-way studio reference monitor with 8" subwoofer, 5" woofer, and 1" tweeter

Scan code: LN79002 Manufacturer code: FO-TRIO6BE
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

450W Studio Reference Monitor
Focal - 'Trio6 Be'

focal trio6 be

Please note: This item is B-Grade. Packaging may be damaged or missing and there may be cosmetic imperfections and slight signs of use.

Ultimate Audio TransparencyThe Focal Trio6 Be was created with the intention of meeting the standards of the more demanding studio engineers. As a dual monitor, the Trio6 Be is the new reference point in its range, with extreme neutrality, precise stereophonic imaging, and the capabilities of resolving the finer sonic nuances.

The built in Class G amplifiers work for all musical styles with its SPL levels, making this monitor suitable for any style of mixing. The Trio6 Be works as a three-way speaker with a 1” tweeter, a 5” woofer, and an 8” subwoofer. It also features FOCUS mode, which reconfigures Trio6 Be and allows its to work as a two-way monitor, providing even more versatility.

8"LF Driver Size

35Hz-40kHzFrequency Response

115 dBMax SPL

at a glance • Wide uncompromised dynamics, linearity, and wide dispersion
• Neutral, distortion-free sound thank to W composite sandwich cone
• Simplified room integration, thank to LF and HF shelving, 160Hz EQ
• High SPL accommodates all musical styles (115dB peak @ 1m)
• Rotating baffle: facilitates both horizontal and vertical setups

Precise Monitoring With Focus Mode

focal trio6 be

Three-Way MonitorWhen used at its full potential, the Beryllium tweeter goes up to 40kHz and the 8” subwoofer pushed low frequencies as low as 35Hz. This gives engineers complete control of the audio signal. The 5” W composite sandwich cone woofer is built in an isolated chamber inside the cabinet, preventing the sympathetic activation of its other speakers while improving its acoustic performance.

Two front-facing ports deliver bass reflex, allowing the woofer to perform the same way in both two-way (90Hz – 2.5kHz) and three-way (250Hz – 2.5kHz) configurations. The 1” pure Beryllium inverted dome tweeter gives you several advantages, including wide dispersion, incredible frequency response linearity, rapid dynamics, and unbeatable impulse response.

focal trio6 be

Two-Way MonitorWhen used as a two-way monitor, Trio6 Be uses just the 5” woofer and the tweeter, limiting frequencies to between 90Hz and 20kHz. This set up gives you the perfect compromise when checking the quality of the mix for playback set ups with less frequency response, like TVs, PCs, cars, and portable speaker systems for example.

The frequency response curve of the two-way configuration is the same but less extended, to its three-way curve, allowing for the ideal comparison that maintains the stereo image. Focusing on the crucial middle frequency range provides a good mix and allows the engineer to make sure that the levels are perfect. You can also use a footswitch (not included) to activate this set up remotely from the listening position.

Rotating Baffle

focal trio6 be

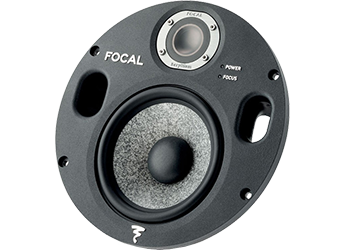

Versatile PositioningThe Trio6 Be can be used vertically as well as horizontally for optimal positioning using the adjustable aluminum baffle housing the woofer and tweeter. This rotating baffle can rotate up to 360° in 90° increments, making it one of the most versatile speakers to position.

Connections

focal trio6 be

Convenient CompatibilityThe Focal Trio6 Be features a 1/4” input jack on the rear panel which receives the trigger signal from a remote pedal, whilst a 1/4” output sends a link to the input on a paired monitor. Most single switch footswitches for guitar amplifiers are also compatible with the Trio6 Be.

The Tech Spec

Features Specification
Frequency response 3-way mode: 35Hz - 40kHz (+/- 3dB)
2-way mode (Focus): 90Hz - 20kHz (+/- 3dB)
Maximum SPL 3-way mode: 115dB SPL (peak at 1m)
2-way mode (Focus): 105dB SPL (peak at 1m)
Inputs Type /Impedance: Electronically balanced / 10KOhms
Connectors: XLR
Sensitivity: Adjustable, +4dBu ou -10dBv
Bass 200W, class G
Midrange 150W, class G
Treble 100W, class AB
Power supply Main voltage: 230V (class T fuse 1.6A fuse rating) - 115V (class T fuse 3.5 A fuse rating)
Wiring: Detachable IEC power cable

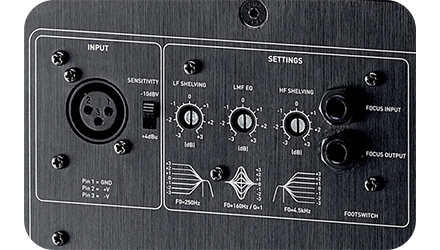

Indicators and controls (Rear panel) Input sensitivity selector (+4dBu/-10dBV)
Low frequency shelving (+/- 3dB from 35 to 250Hz)
High frequency shelving (+/- 3dB from 4.5 to 40kHz)
EQ low-mid frequencies (+/- 3dB at 160Hz, Q factor = 1)
FOCUS input / FOCUS output
LED Focus mode on, audio clipping and protection indicated by LED on front panel
Subwoofer 8W64701
8" Focal driver with “W” composite sandwich cone
Woofer 5W04701
5" Focal driver with “W” composite sandwich cone
Tweeter TB872
1" Focal pure Beryllium inverted dome tweeter (with protective grille)
Cabinet Structure: 22mm (0.86") reinforced panels
Finish: Dark Red natural Burr-ash veneering side panels, Black body
Dimensions including 4 rubber feet (HxWxD): 201/2"x1015/16"x143/16" (520x278x360mm)
Weight: 44lbs (20kg)
