Avantone Active MixCubes Powered Full-Range Mini Reference Monitors (Single) - Buttercream

Avantone MixCubes Powered Full-Range Mini Reference Monitors (Single) - 90 Hz - 17 kHz XLR And TRS Inputs - Buttercream

Thumbnail 1 : Avantone Active MixCubes Powered Full-Range Mini Reference Monitors (Single) - Buttercream Thumbnail 2 : Avantone Active MixCubes Powered Full-Range Mini Reference Monitors (Single) - Buttercream
Scan code: LN78183 Manufacturer code: MixCube
Order in the next 2 mins and get it tomorrow
Get it Tomorrow, 24 JunIn stock
From £11.67 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £21.66
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £239.00
Total inc. interest: £259.83
Monthly Payment: £11.67
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £239.00
Total inc. interest: £280.10
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jun to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Scan Pro Audio Recomended - Tom Says : The Avantone MixCubes are popping up in studios worldwide, I even spotted a set down at X-Factor Musical Directors TMS's studio (Professor Green, Emeli Sande, Little Mix, Dot Rotten) .
They are basically everything that the NS10's should have been, but wasn't.. a reduced range, flat response speaker that will sound extremely similar in any environment, due to limited bandwidth.
These are a fantastic choice for a second pair of monitors to reference mixes on, representitive of most home hifi systems and TV's. To put it bluntly, if the mix is well balanced on these monitors, it will sound well balanced to everyone.

The Avantone MixCubes are shielded, full-range mini reference monitors.
Their design is inspired by the legacy of the 5C Sound Cubes used in virtually all-major studios for the last 25 years.

Active Recording / Mixdown Monitors

Engineering Objective
The Avantone Active Mixcubes are designed to be high-resolution, full-range powered mini-reference monitors for fixed or remote locations.
The secondary engineering facet was to create a timeless design that compliments a single full-range transducer.

Performance Objective
Studios primarily use 2-way & 3-way larger monitors designed to represent a wide range reference viewpoint at higher listening levels.
However, in this newly developing age of High Definition Audio, there is still a need to also hear what your mix will sound like when played back over small “bass-challenged” systems such as televisions, clock radios, computers, car stereos, iPod docking stations, etc.
It is important to make mixing judgments based partially on listening to reference monitors that will not impart tonal anomalies caused by crossovers or inferior full range drivers.
Particular attention is always paid to the critical mid-range vocal/guitar/keyboard areas. This is where having a full-range monitor without a crossover is truly revealing.
Ten months of R&D comparative listening & tweaking went into the voicing of the AVANTONE MixCubes.
The result is a very smooth sounding, full range upgrade from the original 5C Sound Cubes.
Listening tests reveal that the MixCubes have a smooth, more open, transparent top end response with extended bass while maintaining their basic original character.

Cabinet Design
The original 5C Sound Cubes™ were made of ½” particleboard covered with a glue-on wood grain contact paper.
We chose to use thicker, denser MDF board because of its high rigidity and inherent low-resonance characteristics.
We started with a 165mm (6 1/2") sealed cube design with radiused edges. We then chose an elegant Polyurethane high gloss “RETRO-CREAM” finish.
The originals had either screws or on later models plastic binding posts mounted on a recessed plastic cup.
We upgraded to high-end nickel plated, machined solid metal binding posts (Dual banana spacing) mounted on a black anodized ,milled and silk-screened aluminum terminal plate.
Next we added a 7mm thick neoprene pad embedded into the base of the cabinet to serve as a skid-resistant acoustic isolator.
Additionally, for creative mounting situations, we recessed an industry standard 5/8”-27 mic stand mount into the base.

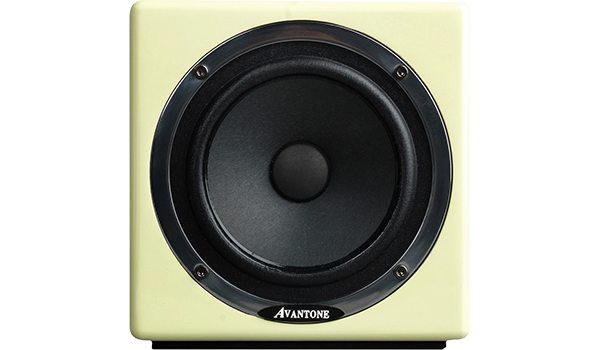

Driver Design
The originals were a basic 5” stamped frame design.
We designed a proprietary 5.25” die cast aluminum frame driver/cone assembly to exceed the performance of the originals.
The mounting bezel is then polished for an elegant appearance.
The paper cone, chosen for its musical character, is custom designed & crafted using the finest New Zealand pulp with mica fibers added for lighter weight & rigidity.
The cloth surround is made in Japan to exacting uniform thickness tolerances.
The Top Plate and T-Yoke of driver are made of Sumitomo 1008 low carbon steel enabling the highest modeled flux density in the gap.
The magnets are Y- 40 GRADE (MIL-SPEC) yielding a 43oz. High Power-low distortion motor structure.

Amplifier Design
We designed the amp module from the ground up to be a true professional-grade amplifier.
It incorporates “overkill” concepts in component selection as well as safety.
The result is a “no-compromise” amp with robust headroom characteristics that will rival the performance of much higher priced studio rack mount amps. Features Balanced Input

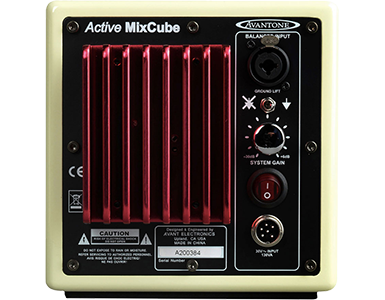

This “combo XLR” input accepts a BALANCED male XLR plug as well as a 3-conductor BALANCED TRS ¼” or a 2 conductor UNBALANCED TS ¼” male plug.
For unbalanced operation with a TS connector the minus signal is automatically grounded.

System Gain
This variable control adjusts the sensitivity of the signal that appears at the input.
Rotating the control clockwise increases the sensitivity while a counter-clockwise rotation decreases sensitivity.
The adjustable gain range is from -30 to +6 dB. A setting of +6 allows a full, unimpeded signal to be sent to the amplifier.
The detented gain positions allow for repeatable settings between speakers for proper matching.
Please Note… when the signal appearing at the input is too hot, the amplifier can overload causing distortion and possible damage to the speaker.
If overload occurs, attenuate (decrease) the input level by turning the knob counter-clockwise a few clicks.

On/Off Switch
This illuminated switch turns the amplifier section on and off. The unit is still receiving power from the transformer however.

AC Input
This input is only to be use with the proprietary AVANTONE Power Supply.
Tighten the cable/connector securely for reliable operation. Note: There is a switch on the power supply for selecting the proper AC/MAINS operating voltage for your location.

Ground Lift Switch
By engaging this switch the pin 1 shield is lifted at the input jack.
This can be used to aid in ground loop control of the incoming analog line signal.

When positioning the Avantone Active MixCubes on stands or console bridges it is best to keep them at ear level and slightly angled in towards the engineer.
Since they are shielded it is ok to place them near a CRT video monitor or TV without causing any problems.
The bottom mic stand mounts will also allow you creative positioning options in unusual studio playback situations.
Speaker Type Nearfield
Total Wattage (RMS) 60 w
I/O Connections
  • 1 x 6.35mm (1/4") Jack Input
  • 1 x XLR In
Bass Port None
Frequency Response 90 Hz - 17 kHz
Max SPL 104 dB
Bass Cone Size 5.25" Inch
Connectivity Wired
Additional Information
Scan Code LN78183
Model Number MixCube
GTIN 852437001194

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
Return to base
DOA Period:
30 days
RTB Period:
16 months
Manufacturer Contact Details

Additional Notes:
Only on main items
power supplies and accessories only have 12 months warranty
