Avantone CL-10 Passive monitors
Avantone CL-10 Passive monitor speakers (pair) 2-way loudspeaker, 120 Watt / 8 Ohm, 60 - 20,000 Hz frequency range
- SCANPROTECT Protect against installation damage for 28 days. More info

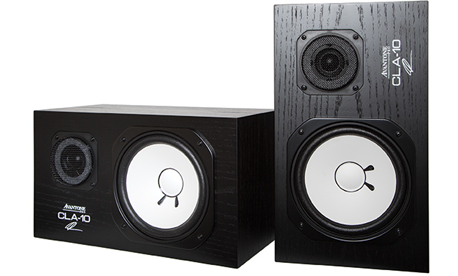

Avantone Pro - 'CLA-10'
Passive Studio Monitor System
Passive - full-range two-way stereo pair The Avantone Pro CLA-10’s are an incredibly expressive and honest pair of studio monitors, allowing you to get the perfect mix. Avantone are no strangers when it comes to making replacement drivers and have gained a great reputation for doing so. Now they have their own studio monitors, modelled off industry standard pairs, found in most world class recording studios.
120W MaxPower Capacity
60Hz-20,000HzFrequency Response
PassiveSystem Type
"The Sound of Hits"
CabinetA large amount of thought and dedication has been given into making sure these speakers perform as well as the originals. The rear terminal plate has been changed to accommodate a better standard of connector whilst the crossover network has the same value capacitors, but with higher end material and rating.
The inductors are identical in dc resistance, winding dimensions and value to the originals. The cabinet is finished off with MDF and a stunning real wood veneer.
"The White Cone In The Black Box"
DRIVERSThe engineering process for these AV10-MHF tweeter domes proved to be quite difficult when trying to match the same phenolic resin doping identical to the original performance curve. Avatone’s engineers undertook this design process in-house, to guarantee they are all identical to each other. One of the original vendors, is a vendor whom Avatone worked closely with in order to achieve the exact same stiffness and weight.
One of the primary differences is, Avatone opted to use a pressed cone, rather than a ‘lapped’ cone, this achieves tighter control over the stiffness and weight. Avatone’s extensive testing proved to show zero differences in tone or response, between Avatone’s and the original. This has resulted in the benefit of being the first-time matched pairs available today.

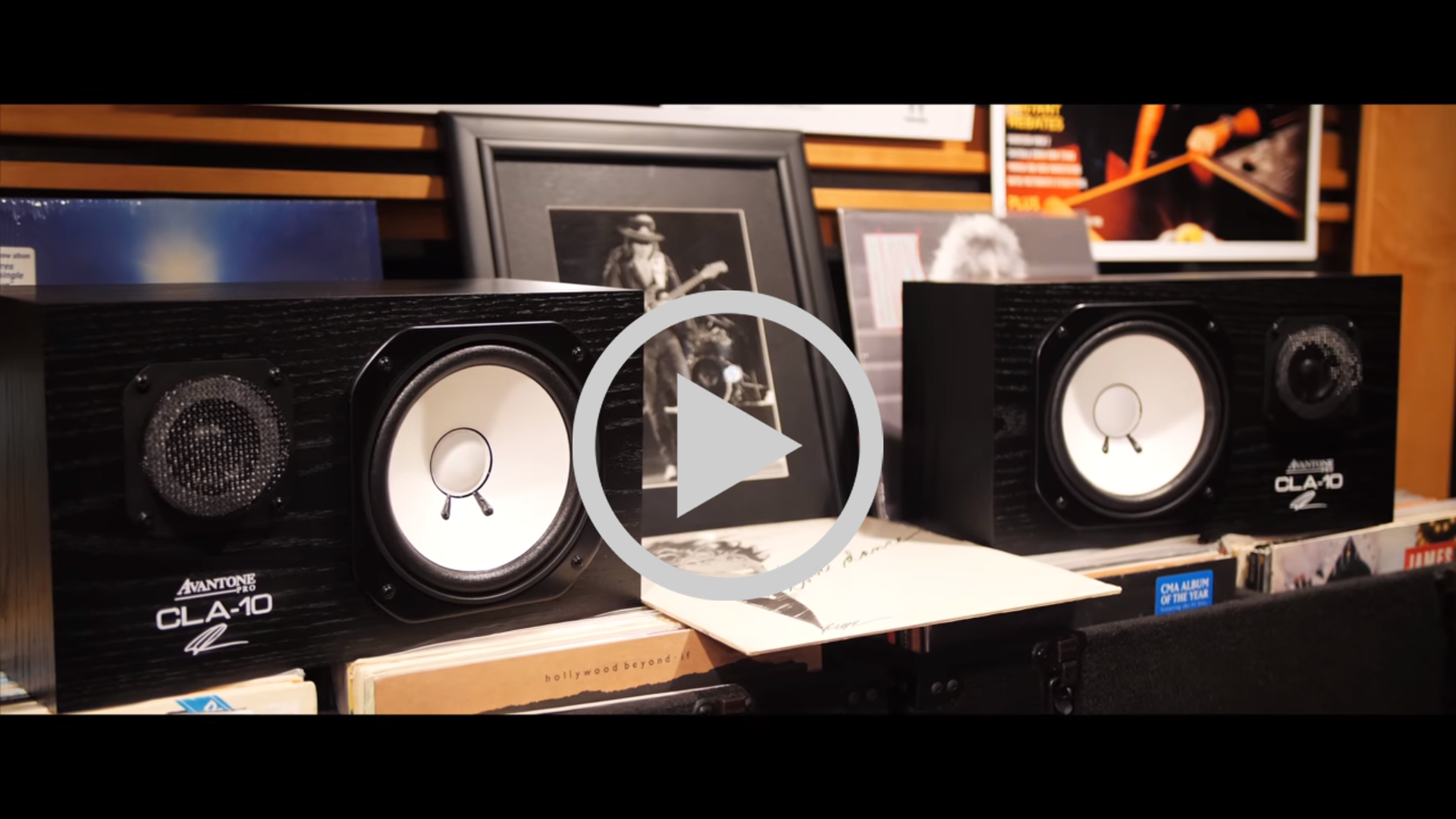

Avantone - 'CLA-10' Introduction
The Tech Spec
| Features | Specification | System Type | Passive - full-range two-way stereo pair |
|---|---|
| Frequency Response | 60Hz-20,000Hz (Accessible musical range) |
| Power Capacity | Program – 60W, Maximum – 120W |
| Sensitivity | 90dB SPL (1W, 1m on axis) |
| Components | Low Frequency: AV10-MLF 18cm cone, High Frequency: AV10-MHF 3.5cm soft dome |
| Cabinet | 10.4 liter sealed design, 18mm MDF with real wood veneer |
| Cabinet Dimensions | 381.5mm x 215mm x197.5mm ( 15”x 8 ½”x 7- ¾ ” ) |
| Cabinet Weight | 6.3kg / 13.9 Lbs (each) |
| Warranty | 5 Year Limited Warranty to original purchaser |
