Audient ORIA USB Interface & Immersive Monitor Controller with support for Dolby Atmos
Audient - ORIA, USB Interface & Immersive Monitor Controller with support for Dolby Atmos
Immersive Audio Interface and Monitor Controller
Audient - ORIA
The world's first Immersive Audio Interface and Monitor ControllerMeet ORIA, the world’s first audio interface and monitor controller designed specifically with immersive audio in mind. Built for creating immersive audio mixes for formats such as Dolby Atmos, ORIA lets you calibrate, control and monitor multi-channel speaker arrays from stereo up to 9.1.6 and everything in between. Perfect for music, film, TV, game and VR production.
A perfect fitDesigned with a dual purpose, ORIA not only excels as a powerful USB-C audio interface providing 16 outputs for up to 9.1.6 mixing workflows, but can also effortlessly integrate into your existing studio setup as a standalone monitor controller via its ADAT Inputs. Flexibility where you need it.
at a glance
• The Audient ORIA Immersive Audio Interface & Monitor Controller for immersive audio, perfect for formats like Dolby Atmos, supporting stereo to 9.1.6 setups.
• Functions as a powerful USB-C audio interface with 16 outputs for 9.1.6 mixing and doubles as a standalone monitor controller via ADAT inputs.
• Features AD/DA converters with 126dB dynamic range, console-grade mic preamps with 60dB gain, and remote-control capability.
• Calibrate your room and create custom profiles for various formats. Includes an 8-band EQ, speaker delay, trim, and bass management. Runs on DSP Dual Processor Architecture for low latency.
Advanced Speaker Processing
precision - made easyWorking with multi-channel speaker setups requires a precisely calibrated room but let’s face it, calibrating your room is a difficult and time consuming process.
But what if it didn’t have to be?
All Present & CorrectORIA’s Advanced Speaker Processing lets you calibrate your room and create custom onboard calibration Profiles (presets) for any monitoring format from stereo to surround to 9.1.6 immersive setups, making reference checking your mix in different formats a breeze.
Add to that the ability to calibrate your room in one of two ways. Either create a Profile by manually taking room measurements and dialling in the calibration settings or take advantage of upgrading to SoundID Reference…
'It Just Works' - SoundID Reference

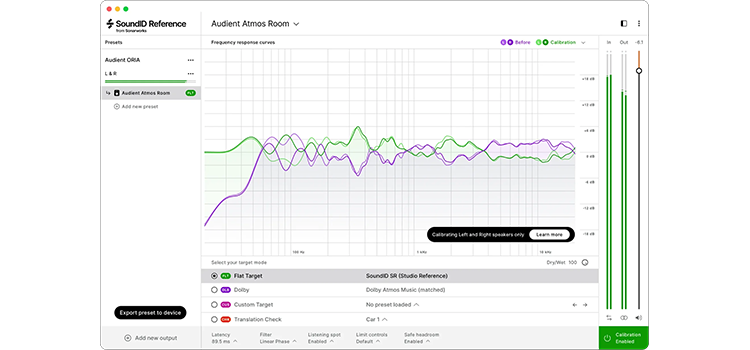

60 day free trialAudient teamed up with room calibration heavyweights Sonarworks to bring you a seamless integration with SoundID Reference letting you accurately measure and calibrate multi-channel setups in less than an hour.
With a SoundID Reference Microphone and 60 day free trial of SoundID Reference for Multichannel software included, ORIA lets you create custom SoundID Profiles for different monitoring formats and target modes, load them into ORIA and take advantage of consistently accurate and low latency immersive audio.
Introducing ORIA - The world's first Immersive Audio Interface and Monitor Controller
The Tech Spec
| Features | Specification | Microphone Inputs | Gain: 60dB Max Input Level: +18dBu Crosstalk: < THD+N: 0.0015% / -96dB EIN: - CMRR: -85dB SNR: 100dB Frequency Response: ±0.5dB 20Hz to 40kHz Input Impedance: 1.5kΩ Balanced |
|---|---|
| Line Inputs | Gain: -10dB to + Max Input Level: +18dBu THD+N: 0.0015% / -96dB Input Impedance: 4.7kΩ Balanced |
| D.I / Instrument Input | Gain: 60dB Max Input Level: +18dBu THD+N: 0.16% SNR: 100dB Frequency Response: ±0.5dB 20Hz to 40kHz Input Impedance: 370kΩ Unbalanced |
| Line Outputs | Lineup Level: +18dBu THD+N: 0.0006%, -105dB Dynamic Range: 126.5dB Crosstalk: -123dB Frequency Response: ±0.3dB 10Hz to 40kHz Output Impedance: <100Ω Balanced |
| Headphone Outputs | Lineup Level: +18dBu THD+N: 0.0007% (-103dB) Dynamic Range: 124dB Crosstalk: -115dB Frequency Response: ±0.25dB 10Hz to 40kHz Output Impedance: <50 Ω Unbalanced Max Level @ 30R: 5.47V Peak, 3.87Vrms, 997mW Max Level @ 60R: 7.4V Peak, 5.29Vrms, 912mW Max Level @ 600R: 8.6V Peak, 6.09Vrms, 123mW |
| USB-C | Connector: USB Type C Included Cable: USB Type-C to Type-C Number of Input Channels: 34 (2x Analogue, 16 Digital, 16 AOIP*) Number of Output Channels: 38 (20 Line Outs, 2x Stereo Headphone Outs, 16x AES) *With AOIP card fitted |
| Digital Inputs | ADAT 16 Channels: 44.1kHz to 48kHz ADAT 8 Channels (SMUX): 88.2kHz to 96kHz |
| Digital Outputs | AES Outputs: 16 Audio Channels (8x AES Data Streams) |
| Word Clock Input and Output | Word Clock: 44.1kHz to 96kHz |
| AOIP (Optional Dante Expansion Card) | AOIP Inputs: 16 (44.1kHz to 96kHz) |
| Power Supply | Input Voltage: 85 – 264 VAC Input Frequency: 47 – 63Hz |
