Atomos Ninja V Pro Kit

Up to 6K RAW recording via HDMI and SDIDesigned to bridge the gap between compact cinema and mirrorless cameras, the Ninja V Pro Kit has been designed to output RAW via HDMI or SDI with proven performance. Pushing the limits of these cameras, the Pro Kit records up to 6k 12-but RAW* externally on the Ninja’s onboard SSD while also providing the ability to cross convert signals providing a versatile solution for monitoring and playout/review.

Everything you'd expect from Ninja VThe robust aluminium 5″ monitor-recorder allows for a compact rig set-up for camera owners and operators to work with all the latest cameras. Perfect for run and gun productions, documentary filmmaking and for those close-up shots that require the camera operator to be flexible or mobile.

The Ninja V’s compact 5″ 1000nit screen is designed to provide a foundation for scalability and modularity. Combined with the AtomX SDI module and some serious tuning under the hood the Pro Kit provides the ability to record RAW via SDI from some of the best compact cinema cameras on the market.

No RAW, no problem. The Ninja V monitor-recorder is a flexible tool that can work as a HDMI/SDI ProRes monitor-recorder. Worry less when it comes to battery management and excess weight as the Pro Kit is designed to be powered via DTap from your camera battery or rig. Pro Kit also includes a AtomX 5″ Sunhood providing increased monitoring options outdoors, and reduced ambient light for when monitoring in HDR.

Powerful & versatile I/OAdding dual 12G SDI connectivity expands the compatibility with other cameras to provide offboard 10-bit 422 recording in edit ready codecs or as proxy files from RED or Arri cameras allowing the file naming and timecode from the camera to also be carried via SDI to the recorded files.

And of course the Ninja V also provides support for RAW over HDMI from our ever-growing roster of mirrorless cameras including the Sony Alpha 7S III, Z CAM E-2 Series, Nikon Z-Series, Lumix S Series, Olympus OM-D EM-1X, Olympus OM-D M1 MkIII and more.

Compatible cameras (RAW over SDI)Sony: FX9 with XDCA-FX9,FX6
Panasonic: Varicam LT, EVA-1
Canon: C500mki, C300mkii

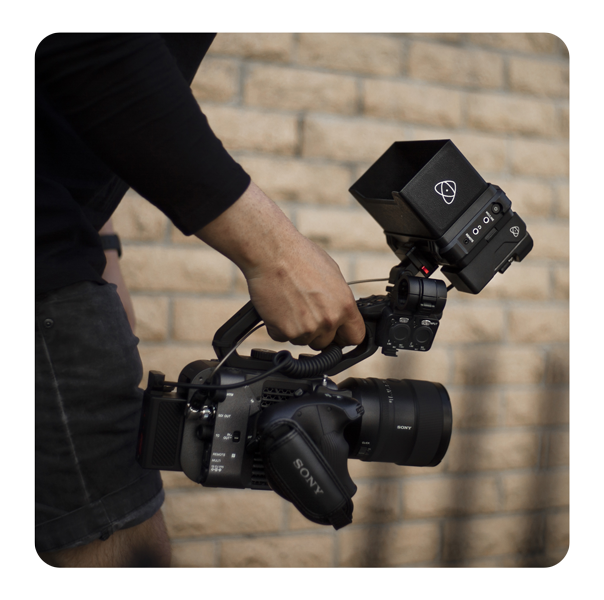

The flexibility to suit any productionIn playback mode the Ninja V Pro Kit provides a lossless signal distribution with 2 x 12G SDI and 1 x HDMI 2.0 for simultaneous outputs up to 4K p60. When used in combination with the Ninja’s playlist functionality it provides a fast and convenient way to review content or show a highlight reel. RAW inputs can also be de-bayered in real time and non-standard high resolutions are processed to SMPTE standard output formats. Convert to HLG, PQ or your choice of 3D LUT can also be applied allowing for RAW or LOG content to be viewed with the correct application of artistic intent.

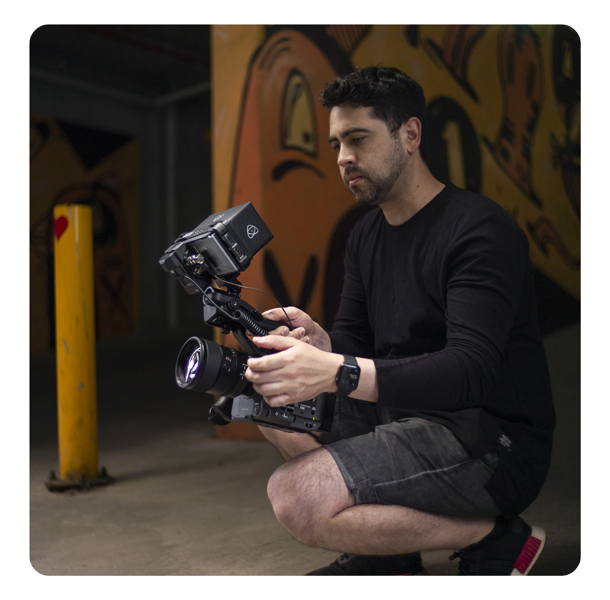

Accurate and reliable daylight viewable HDR or SDRWith 1000nits, high pixel density the 5” screen provides clear and accurate monitoring for HDR and SDR. Using the AtomHDR engine the Ninja V provides a managed colour pipeline, matching the camera Gamma and Gamut on the input and select to view this as 709, Log with a 3DLUT or utilise the engine to accurately map the dynamic range of your camera LOG to HLG or PQ HDR standards.

Whilst other monitors might boast a brightness of over 2000nits, the perceptual benefit can be limited. Simply opting for an increased backlight with no regard for the quality of the image can defeat the point in an external monitor. The Ninja V focuses on image integrity but to increase the perceived brightness in the most difficult bright conditions or to dial out ambient light to increase the view in HDR, the Pro Kit includes the AtomX 5” Sunhood. Simply clip on the mount frame and insert the hood, even leave the frame in place to provide added protection for your monitor.

Existing Ninja V and SDI module ownersFor existing Ninja V and SDI module owners you will have the opportunity to upgrade your monitor and module with a paid upgrade of $99 to enable RAW over SDI from the selected cameras.

The Activation Key for SDI RAW and HDMI RAW to SDI Video can be be purchased via your my.atomos.com account

The ProRes RAW AdvantageProRes RAW is now firmly established as the new standard for RAW video capture, with an ever growing number of supported HDMI and SDI cameras. ProRes RAW combines the visual and workflow benefits of RAW video with the incredible real-time performance of ProRes.

The format gives filmmakers enormous latitude when adjusting the look of their images and extending brightness and shadow detail, making it ideal for HDR workflows. Both ProRes RAW, and the higher bandwidth, less compressed ProRes RAW HQ are supported.

Manageable file sizes speed up and simplify file transfer, media management, and archiving. ProRes RAW is fully supported in Final Cut Pro, Adobe Premiere Pro, Avid Media Composer 2020.10 update, along with a collection of other apps including ASSIMILATE SCRATCH, Colorfront, FilmLight Baselight and Grass Valley Edius.

What’s in the Ninja V Pro Kit box?The Ninja V Pro Kit is a pre-assembled monitor kit which ensures you are production ready and consists of the Ninja V, AtomX SDI module, AtomX 5″ Sunhood, RAW over SDI Pre-Activated and other accessories to enhance the performance of your monitor-recorder in the field.
