Product Overview

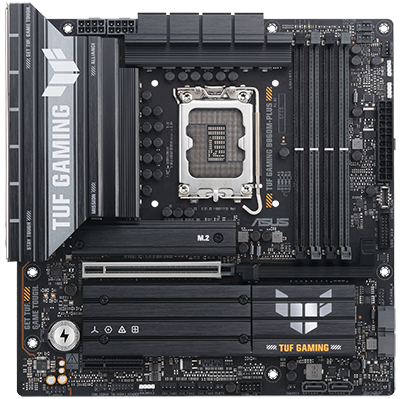

ASUS TUF GAMING B860M-PLUS

ASUS TUF GAMING B860M-PLUS takes all the essential elements of the latest Intel Core Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.


Intelligent Overclocking

The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

Asynchronous Clock
For next-level frequency flexibility, the TUF Gaming B860M features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains. Separate CPU BCLK from other domains for unfettered overclocking.


Intelligent Control

AI Advisor
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimisation features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

TurboV Core
TurboV Core is engineered for overclocking enthusiasts to elevate system capability with unprecedented simplicity. Accessed via ASUS DriverHub, TurboV Core provides intuitive configuration of CPU and DRAM parameters to unlock your computer's potential. No need to enter the BIOS, you can seamlessly modify settings directly from the Windows interface, and apply them right away without restart interruptions.

ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

Power Saving
Provides easy-to-use configuration options for PC beginners and advanced features for veterans.

Armoury Crate
Customise Aura Sync RGB and control ASUS devices. Includes product registration and updates.

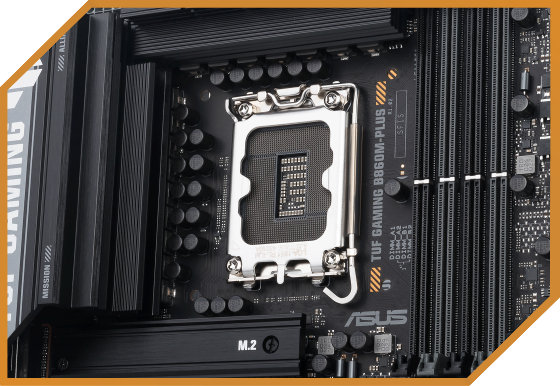

Premium Power Design

Stable power is crucial for maximising the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.

Eight Layered PCB design
This multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

ProCool Power Connectors
Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF Components
TUF chokes deliver rock-solid power to the CPU, improving system stability. And TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

Digi+VRM Control
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimised for ultra-smooth and ultra-clean power delivery to the CPU at all times.


Memory and Storage

DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimises the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyses individual memory modules to optimise performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritising rock-solid stability, DIMM Fit provides optimisations tailored to your needs and your hardware configuration.

M.2 PCIe 5.0 Support
This motherboard also features one PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

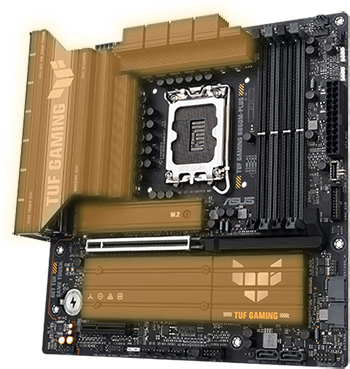

Cooler by Design

AIO Pump Header
An integrated AIO management system enables full control of PWM or DC water pumps, making it perfect for custom or all-in-one cooling setups.

Enlarged VRM Heatsinks
The extensive surface area of this heatsink covers the MOSFETs and chokes to improve thermal performance.

Multiple Temperature Sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 2+ or via the UEFI.

Smart Fan Protection
A dedicated integrated circuit protects each fan header from excess heat and electrical currents.

Enlarged M.2 Heatsinks
All three M.2 slots have dedicated heatsinks to help keep M.2 SSDs at optimal operating temperatures and ensure consistent performance and reliability.

Superb PCH Heatsink
An expanded surface area for the chipset cooler maximises system performance and heat dissipation.

4-Pin PWM/DC Fan
All onboard fan headers support auto-detection of PWM or DC fans.

Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customisable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.


PCIe 5.0 for Graphics Card

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.


Empowering Connection

This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C port and front USB 10Gbps Type-C connector. Extensive USB support ensures connections to a wide array of external devices. This motherboard includes a USB 20Gbps Type-C port on the rear I/O panel that delivers transfer speeds of up to 20Gbps. The port can also support external 4K DisplayPort video output. It also features a USB 10Gbps Type-C front panel connector for speedy data transfers of up to 10Gbps.


Easy PC DIY

PCIe Slot Q-Release
A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

Pre-mounted I/O shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup. It can also alert them when memory modules have not been properly installed--even before booting.

SafeSlot and SafeDIMM
SafeSlot is a reinforced metal sheath integrated with a PCIe slot to keep a card firmly installed and to ensure the highest possible data speeds. The SafeDIMM sheath is integrated to protect memory modules, empowering you to insert them with speed, accuracy and confidence.

ESD Guards
ASUS added special TVS diodes to boost electrostatic discharge prevention by up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge – well above the industry standard.


TUF LANGuard

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, helping to protect the motherboard from lightning strikes and static electricity.

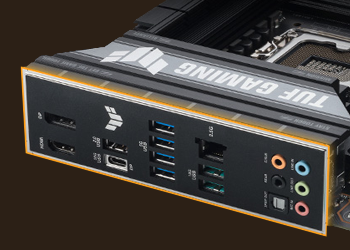

Stainless Steel I/O Back Panel

TUF Gaming motherboards feature a corrosion-resistant stainless-steel rear I/O panel with up to a 3X longer lifespan. These models pass a rigorous 72-hour salt fog test, surpassing the industry standard.


Ultrafast Networking

Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.

2.5Gb Ethernet
On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1Gb connections.


Realtek 7.1 Surround Sound

The unique audio codec designed in close collaboration with Realtek for TUF GAMING B860M motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.


DTS Audio Processing

DTS Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customise audio settings.


Outshine the Competition

ASUS Aura Sync offers synchronised lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.

Addressable Gen2 RGB Headers
Automatically optimise lighting effects for the number of LEDs present in compatible ARGB gear.

Features

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1851 Socket: Support Intel® Core™ Ultra Processors (Series 2)
Enhanced Power Solution: 12+1+2+1 80A DrMOS power stages, 8-layer PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery
Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, equipped with all M.2 heatsinks
Ultrafast Connectivity: PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C® port with DP Alt mode, front USB 10Gbps Type-C® connector
Comprehensive Cooling: Enlarged VRM heatsink, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Dashboard, Q-DIMM, Q-LED and Pre-mounted I/O shield
Unmatched Personalization: Three Addressable Gen 2 headers, all configurable with ASUS-exclusive Aura Sync
Renowned Software: TurboV Core, ASUS DriverHub, ASUS MyHotkey


Specifications
Core Specifications
Edition TUF GAMING B860M-PLUS
Form Factor MicroATX
CPU Socket 1851
Chipset Intel B860
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 8800(OC)
Max. Memory Capacity 192GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
  • USB 4.0
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 1 x PCIe 4.0 x4
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0 (SATA only)
  • RAID 1 (SATA only)
  • RAID 10 (SATA only)
  • RAID 5 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x M.2 Connector
  • 4 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
  • 1 x USB4 Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x 2.5 Gigabit LAN

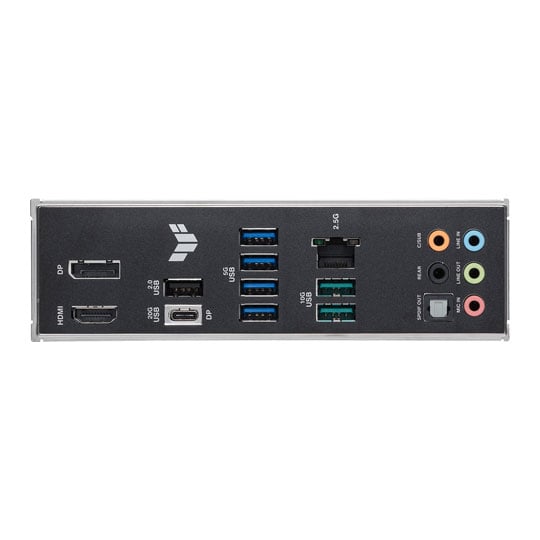

Rear I/O Connectors
  • 1 x 7.1 Audio I/O
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 1 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
