ASUS RS720QA-E12-RS8U/10G/2600W(1+1)
ASUS RS720QA-E12-RS8U/10G/2600W(1+1)
Scan code: LN146445 Manufacturer code: 90SF02R1-M000L0
£8,954.48Item currently awaiting an ETA
Pre order
  • Thumbnail 1 : ASUS RS720QA-E12-RS8U/10G/2600W(1+1)
  • Thumbnail 2 : ASUS RS720QA-E12-RS8U/10G/2600W(1+1)
  • Thumbnail 3 : ASUS RS720QA-E12-RS8U/10G/2600W(1+1)
  • Thumbnail 4 : ASUS RS720QA-E12-RS8U/10G/2600W(1+1)

ASUS RS720QA-E12-RS8U/10G/2600W(1+1)

ASUS RS720QA-E12-RS8U/10G/2600W(1+1)

Scan code: LN146445 Manufacturer code: 90SF02R1-M000L0
£8,954.48
Item currently awaiting an ETA
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £252.48 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £746.21
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £8,954.48
    Total inc. interest: £8,954.48
    Monthly Payment: £373.11
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £8,954.48
    Total inc. interest: £8,954.48
    Monthly Payment: £313.57
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £8,954.48
    Total inc. interest: £11,288.18
    Monthly Payment: £252.48
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £8,954.48
    Total inc. interest: £12,118.79
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £237.95 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Faster Storage, Graphics and Networking Capabilities

PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.


Massive Compute Performance

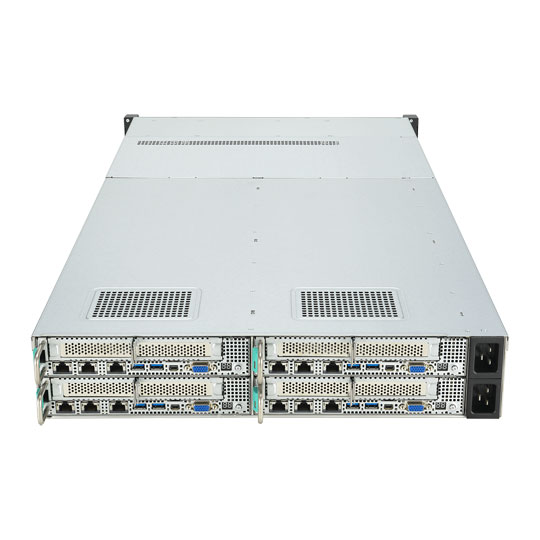

Transform your data center TCO with the high-density server powered by AMD EPYC™ 9004 Series Processors. With an innovative design that fits four nodes in a 2U chassis, RS720QA-E12-RS8U accommodates dual-socket CPUs, PCIe 5.0 to satisfy the increasing demands for efficiency, density and TCO-optimisation for data centers, web servers, virtualization, cloud and hyperscale environments.


A Comprehensive Liquid Cooling Solution

This server is a purpose-built for intensive workloads for HPC data centers, with optimised space design to fit direct-to-chip solution, delivering lower PUE and Operating Expenditures to balance power consumption and green energy awareness. By working with partners, ASUS were able to deliver a total solution — from servers to liquid-cooling modules, and even data-center floor plans and suggested infrastructure.


Direct-to-Chip Cooling Solution

ASUS direct-to-chip cooling is a quick, simple option that’s based on existing infrastructure. D2C can be deployed quickly, and lower PUE (power-usage effectiveness). ASUS servers can support manifolds and cool plates to enable diverse cooling solutions. Moreover, ASUS servers can support a rear-door heat exchanger that complies with standard rack-server designs, so there’s no need to replace all racks — just the rear door. This lowers the total cost of ownership, and increases data-center utilisation ratio.


AMD EPYC™ 9004 Series Processors

The 9004 Series EPYC CPUs amplifies the AMD history of x86 architecture innovations and record-breaking performance with next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9004 CPUs support 12 memory channels with 2 DIMMs/channel capability, delivering the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.


Computing Performance

ASUS servers feature Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for timesensitive applications such as financial services or data center operations.

Core Optimizer
Maximizes the processor frequency in multi-core operations, avoiding frequency shifting for reduced latency.

Engine Boost
Automatic power acceleration with an innovative voltage design to increase server overall performance.

Workload Presets
Preconfigured BIOS server profiles based on workloads and benchmarks for improved performance and efficiency.


Server-Management Solution

Remote Server Management
ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

IT Infrastructure Management Software
ASUS Control Center (ACC) is remote IT management software designed for monitoring your hardware and software IT assets and inventory status and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with Hotfix updates, allowing easier server management for any IT infrastructure.


Enhanced Security

Hardware Root-of-Trust Solution
ASUS servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

Trusted Platform Module 2.0
ASUS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

Features

Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket.
Scale-out infrastructure: The four-node architecture design is ideal for CDN, HCI and cloud workloads to drive IT agility and digital transformation.
Direct liquid cooling (DLC): Fully designed for cooling integration and installation, including CPU with higher TDP to increase data center efficiency and power density.

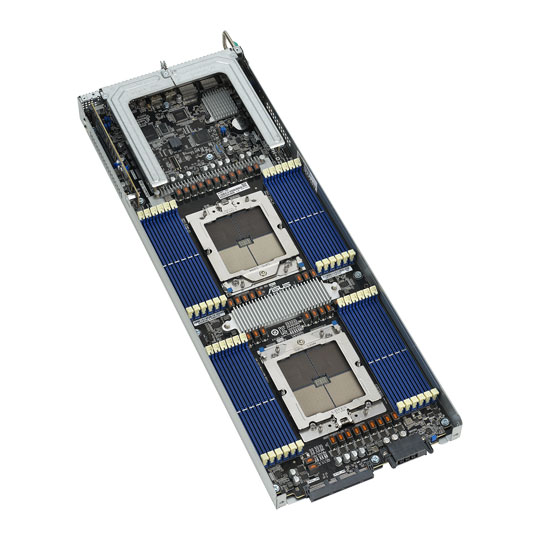

Scale-up node design: Each node supports for dual processors, 24 DIMM, two PCIe 5.0 x16 slots and two M.2, two 10G LAN and 2 NVMe.
High power efficiency: Redundant 3200W or 2600W Titanium power supplies.
Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution.

Specifications
Edition
Form Factor
CPU Included No
CPU Type
CPU Model
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
TDP
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots N/A
SATA N/A
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type
Network Chip/Modules
Front Panel
Back Panel
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour
Dimensions
Weight
Includes
Notes
Additional Information
Scan Code LN146445
Model Number 90SF02R1-M000L0
GTIN 4711387366905
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
1 days
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
Buying Guide
Need help? Read our Servers Buying Guide
