ASUS RS720Q-E11-RS8U-SKU1/10G/3000W(1+1)

Faster Storage, Graphics and Networking Capabilities

PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

Massive Compute Performance

Transform your data center TCO with the high-density server powered by 5th Gen Intel® Xeon® Scalable Processors. With an innovative design that fits four nodes in a 2U chassis, RS720Q-E11-RS8U accommodates dual-socket CPUs, PCIe 5.0 to satisfy the increasing demands for efficiency, density and TCO-optimisation for data centers, web servers, virtualization, cloud and hyperscale environments.

A Comprehensive Liquid Cooling Solution

This server is a purpose-built for intensive workloads for HPC data centers, with optimised space design to fit direct-to-chip and immersive cooling solutions, delivering lower PUE and Operating Expenditures to balance power consumption and green energy awareness. By working with partners, ASUS were able to deliver a total solution — from servers to liquid-cooling modules, and even data-center floor plans and suggested infrastructure.

Direct-to-Chip Cooling Solution

ASUS direct-to-chip cooling is a quick, simple option that’s based on existing infrastructure. D2C can be deployed quickly, and lower PUE (power-usage effectiveness). ASUS servers can support manifolds and cool plates to enable diverse cooling solutions. Moreover, ASUS servers can support a rear-door heat exchanger that complies with standard rack-server designs, so there’s no need to replace all racks — just the rear door. This lowers the total cost of ownership, and increases data-center utilization ratio.

5th Gen Intel® Xeon® Scalable Processors

5th Gen Intel® Xeon® processors unleashes up to 21% average general-purpose performance gain, significantly improving AI inference and training, all via the drop-in-compatible LGA-4677 socket. This innovation powerhouse accelerate AI, HPC, Analytics, Networking, Storage and offer eight DDR5-5600 memory channels for up to 2 TB capacity, 80 PCI Express® 5.0 lanes with CXL 1.1 support, and a 350 W TDP for 1P and 2P configurations — ready for the future of computing.

Computing Performance

ASUS servers feature Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for timesensitive applications such as financial services or data center operations.

Core Optimizer
Maximizes the processor frequency in multi-core operations, avoiding frequency shifting for reduced latency.

Engine Boost
Automatic power acceleration with an innovative voltage design to increase server overall performance.

Workload Presets
Preconfigured BIOS server profiles based on workloads and benchmarks for improved performance and efficiency.

Server-Management Solution

Remote Server Management
ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

IT Infrastructure Management Software
ASUS Control Center (ACC) is remote IT management software designed for monitoring your hardware and software IT assets and inventory status and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with Hotfix updates, allowing easier server management for any IT infrastructure.

Enhanced Security

Trusted Platform Module 2.0
ASUS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

• Powerful performance: Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training.
• Scale-out infrastructure: The four-node architecture design is ideal for CDN, HCI and cloud workloads to drive IT agility and digital transformation.
• Direct liquid cooling (DLC): Fully designed for cooling integration and installation, including CPU with higher TDP to increase data center efficiency and power density.

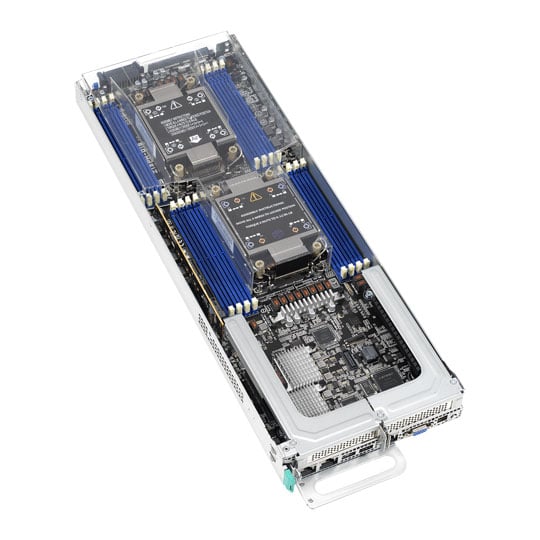

• Scale-up node design: Each node supports for dual processors, 16 DIMMs, 8 NVMe, two PCIe 5.0 x16 slots, two M.2, and two 10G LAN.
• High power efficiency: Redundant 3000W Titanium power supplies.
• Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution.
