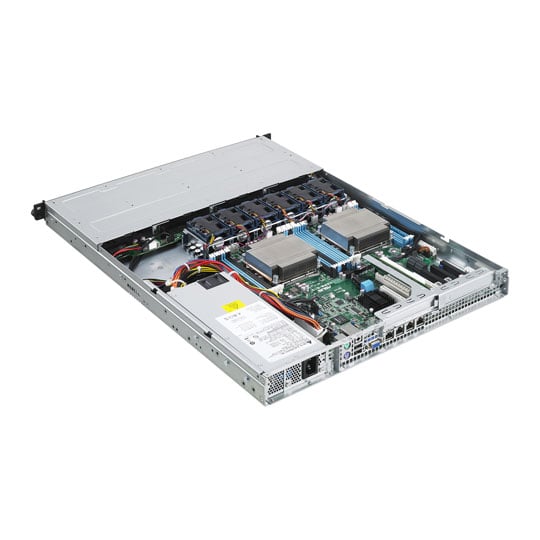

ASUS 1U 4 Bay RS700-X7/PS4 Dual Xeon E5 Rackmount Server

4-Bay ASUS RS700-X7/PS4, 1U BB DP Intel Xeon E5-2600 Rack Server, 2x s2011, 12x DDR3, 4x 3.5" SAS/SATA H-S, 600W PSU

Thumbnail 1 : ASUS 1U 4 Bay RS700-X7/PS4 Dual Xeon E5 Rackmount Server Thumbnail 2 : ASUS 1U 4 Bay RS700-X7/PS4 Dual Xeon E5 Rackmount Server Thumbnail 3 : ASUS 1U 4 Bay RS700-X7/PS4 Dual Xeon E5 Rackmount Server Thumbnail 4 : ASUS 1U 4 Bay RS700-X7/PS4 Dual Xeon E5 Rackmount Server
Scan code: LN45951 Manufacturer code: RS700-X7/PS4
3xs Approved
Order now and get it tomorrow, Tue 14th Jul
With a 10% deposit from just £18.61 / month (APR 15.9%)
Delivery Options
  • By DPD On 14th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview High Performance 1U Server with Great Expandability and Flexibility, and Featuring an Optimized Cooling Design with Front-Parallel CPU and Memory Placement
The RS700-X7/PS4 is a space-saving 1U server featuring high memory and storage capacity, flexible RAID, 2+1 expansion slots, 80 PLUS Gold power supply, and quad LAN. It's designed for telecom server centers, IDC, and all small and medium businesses facing space constraints. Features Optimized Cooling Design
Front-parallel CPU and memory placement guides smooth airflow throughout the chassis, while intelligent fan control technology adjusts fan speeds automatically based on system load.

Flexible 2+1 Expansion in A 1U Chassis
Despite 1U space requirements, the RS700-X7/PS4 manages to offer two PCI Express 3.0 x16 slots and one extra slot dedicated to exclusive ASUS PIKE cards, helping users with better server integration.

Up to 92% Power Efficiency
Maintaining the ASUS commitment to environmental protection, the RS700-X7/PS4 is equipped with a 600W 80 PLUS Gold power supply to reduce power loss and consumption. As such, it lowers power bills to save users money with up to 92% power efficiency.

Innovative Storage and RAID
The RS700-X7/PS4 supports optional ASUS PIKE RAID upgrade kits. With a PIKE card, users can integrate server functions into data security, and upgrade from SATA to SAS storage without occupying the two PCI Express 3.0 slots. This gives users better flexibility through more storage options.

High Availability and Reliability
The RS700-X7/PS4 uses hot-swap features for high availability and easy upgrades, allowing users to replace drive modules with no hassles. Additionally, the proprietary ASUS anti-vibration fan module cage provides superior cooling with no reliability compromise.

Quad LAN Support
Four LAN ports provide high networking bandwidth with load balance and fault tolerance functions. The server supports ASUS and most other available 10Gb/s LAN cards for extra-fast networking.

Outstanding Computing Capabilities
With support for new Intel® Sandy Bridge Socket R/LGA 2011 and 12 DIMM memory slots, the RS700-X7/PS4 provides improved computing power for customers that demand an extensive range of applications.

On-Board ASMB6-iKVM Remote Management Upgrade Kit
The exclusive ASUS ASMB6-iKVM enables dashboard system health monitoring, remote power on/off control, virtual media over LAN, automatic video recording, and network bonding support. In addition, the ASMB6 function is based on BIOS-level access, so even if the server operating system is down, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly graphical user interface.
Edition RS700-X7/PS4
Form Factor 1U Rackmount
CPU Included No
CPU Type Intel Xeon
CPU Model E5-2600 / E5-2600 v2 product family
Manufacturing Process
Unlocked CPU No
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler Air Cooled
Max. TDP 115 W
CPU Socket 2011 x2
Chipset Intel C602-A
Motherboard Form Factor Bespoke/Custom
Motherboard Model
Memory Type DDR3
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Quad (4) per CPU/Socket
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM / RDIMM / LRDIMM
Memory Speed (Mhz)
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
  • DDR3 - 1866
  • DDR3 - 800
Max. Memory Capacity 384GB (12x32GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Aspeed AST2300 with 16MB VRAM
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface PCIe 3.0 (x16)(x8 Bandwidth)
Expansion Slots
  • 1 x PCIe 3.0 x16 (x8 Bandwidth), via Riser, FH, HL
  • 1 x PCIe 3.0 x8, via Riser, FH, HL
  • 1 x PIKE Slot for Storage Enhancement
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
Optical Drive None
Drive Bays
  • 4 x 3.5" SAS/SATA Hot-Swap (External, Front)
  • 1 x Slim Optical
Backplane I/O 4 x SAS/SATA Ports (Front)
RAID Support Support Software RAID 0, 1, 5, 10
Internal I/O
  • 4 x SATA II - 3Gb/s
  • 2 x SATA III - 6Gb/s
  • 2 x Serial (COM) Header
  • 1 x USB 2.0 Type-A Port
Network Interface Type Quad Wired Gigabit LAN (10/100/1000) + Mgmt LAN
Network Chip/Modules
  • 4 x Intel® 82574L (Gigabit LAN)
  • 1 x Mgmt LAN
Front Panel
  • 1 x HDD Activity LED
  • 2 x LAN Activity LEDs
  • 1 x Message LED
  • 1 x Power Button with LED
  • 2 x USB 2.0
Back Panel
  • 1 x D-Sub (VGA) Out
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 4 x RJ-45
  • 1 x RJ-45 Mgmt LAN
Cooling Fans 6 x 40mm
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 600 W
PSU Efficiency Rating 80 PLUS Gold
PSU Redundancy Single PSU
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black
Dimensions 444 x 43.4 x 615 (mm WxHxD)
Weight 15 kg
  • 1 x Barebone Server
  • 2 x CPU Heatsink/s
  • 1 x Rail Kit
Notes *SAS card is required, not included, for SAS devices. *Non-ECC UDIMM Supported Only. *DDR3 1866 only supported with Xeon E5-2600 v2 CPU. *8x DIMM for CPU1, 4x DIMM for CPU2. *Slim Optical DVD Drive for Shown for Illustration Purposes Only, Not Included.
Storage Drives
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Additional Information
Scan Code LN45951
Model Number RS700-X7/PS4
GTIN 04716659204732
