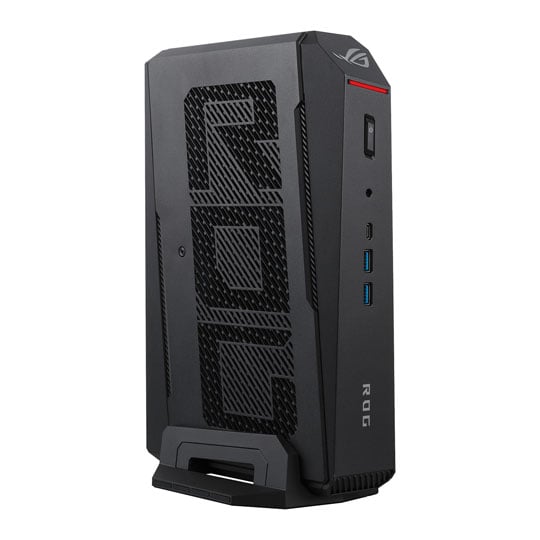

ASUS ROG NUC 16 Intel Core Ultra 9 RTX 5070 Ti Mini PC

ASUS ROG NUC 16 Mini PC, Core Ultra 9 290HX Plus, 32GB DDR5, 1TB M.2 SSD, 12GB GeForce RTX 5070 Ti, TB4, Win11 Home
MORE INFO
MORE INFO

Scan code: LN170858 Manufacturer code: 90AS00S1-M000A0
£3,301.49
£5.48 Next day delivery
Item overdue since 22 May 2026
Pre Order
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Finance this product

  • From £93.09 / month (APR 16.9%) for 48 months or 0% for 4 months
  • With a 10% deposit from just £82.46 / month (APR 15.9%)

Suggested Alternatives

ROG NUC 16 Intel Core Ultra 9 RTX 5070 Ti Mini PC from ASUS

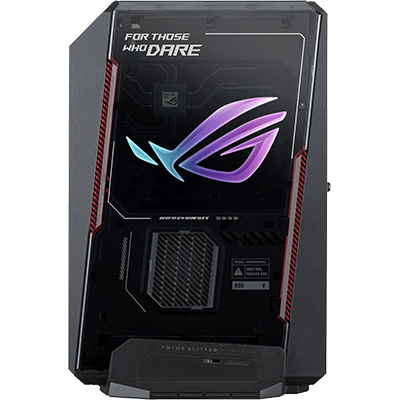

Hero image of ROG NUC 16

Compact, Powerful, Beyond Limits Meet ROG NUC 16—a mini PC that redefines performance in a compact form factor. ROG NUC 16 leverages the power of the latest Intel® processors and NVIDIA® graphics to unleash immersive, ray-traced worlds with unmatched precision. Featuring a triple-fan cooling system and dual-vapor-chamber architecture, and rigorously tested for durability and reliability, the ROG NUC 16 delivers battle-ready performance without compromises. Plus, it can be stood upright or placed horizontally, so it fits any setup.

Ultra 9 290HX PlusIntel Core Processor

GeForce RTX 5070 TiDiscrete GPU Chipset

32GBDDR5 Memory

1TBM.2 PCIe NVMe SSD

Next-Gen Performance

Close up image of Intel CPU

Elite Core, Enduring Edge The ROG NUC 16 is built to handle the intensive graphical demands of the latest AAA titles and creative workflows. Its up to Intel Core™ Ultra 9 290HX CPU delivers exceptional processing power that belies its ultracompact form factor.

Close up image of GPU Chipset

NVIDIA Blackwell Architecture Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4.5.
New Streaming Multiprocessors
Optimised for neural shaders.
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry.
Blackwell Max-Q
Maximum power efficiency.

AI Visuals Graphic

Superior Visuals. Powered by AI. DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. DLSS 4 introduced Multi Frame Generation (MFG) and transformer models. DLSS 4.5 brings Dynamic MFG and a second-gen transformer model. All backed by an NVIDIA AI supercomputer in the cloud, constantly improving your PC’s gaming capabilities.

Optimised Power

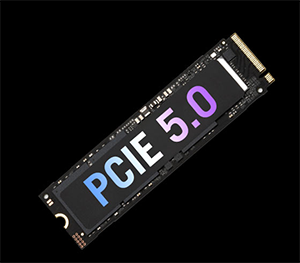

Close up image of a PCIE 5.0 SSD

PCIe® Gen 5 SSDThe ROG NUC 16 accommodates PCIe® Gen 5 SSDs, delivering higher bandwidth and faster data throughput.

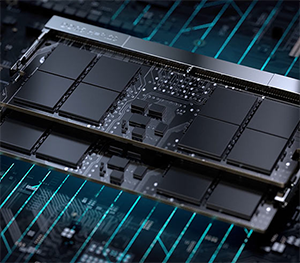

Close up image of memory

DDR5-6400-CSODIMMUp to 128GB of DDR5-6400 memory enables ultrasmooth gameplay with reduced stutter, as well as seamless multitasking for creative workloads.

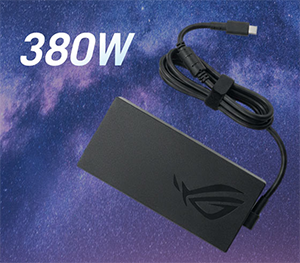

Image of adapter

Next Generation Adapter*Optimised for compact systems, the ROG NUC 16 includes a 380-watt power adapter that delivers 15% more wattage while being 18% lighter than the adapter of ROG NUC 2025.

Innovative Cooling

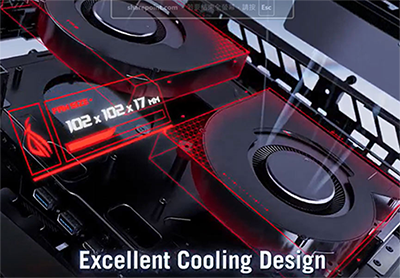

Close up image of integrated fans

QuietCooling Fans The mini PC features triple-fan cooling, with each fan measuring 102 x 102 x 17 mm, boosting CPU thermal capacity by 12%.

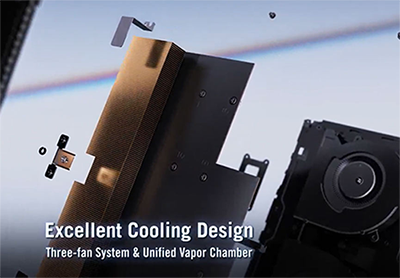

Close up image of heatsinks

Dedicated Heat Sinks The dedicated SSD heatsink reduces operating temperatures to 59°C, reducing thermal throttling and extending the SSD lifespan.

Modern Design

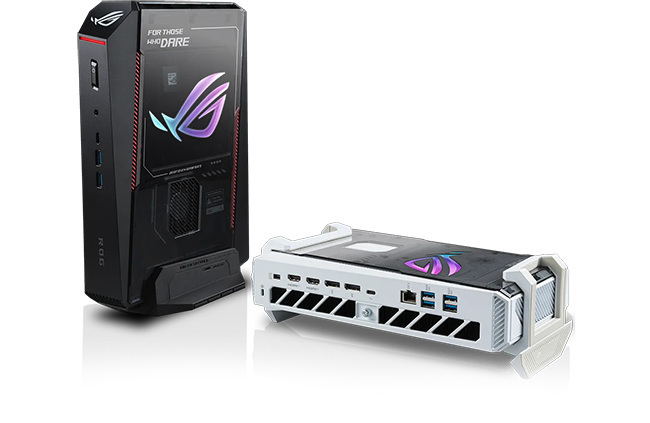

NUC 16 Black & White editions next to each other

Vertical & Horizontal OrientationA patented removable stand design allows the ROG NUC 16 to be positioned horizontally or vertically. A built-in G-sensor intelligently detects the orientation of ROG NUC 16 and automatically optimises thermal settings accordingly.

Software Support

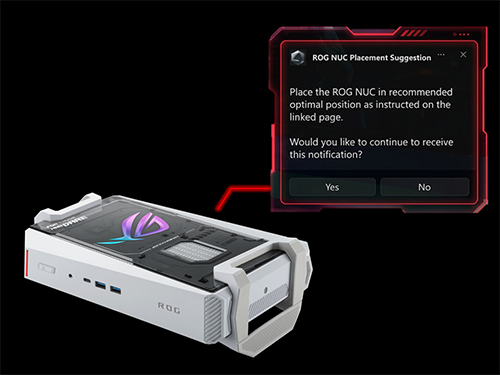

Close up image of G-Sensor in operation

G SensorThe built-in G-sensor detects the orientation of ROG NUC 16 and adjusts thermal settings accordingly to deliver optimal gaming performance.

Mini PC next to a monitor and smart phone

Glide X3Glide X3 is a seamless cross-device, cross-platform screen-sharing and control solution with broad OS compatibility. It enables users to:

• Create a dual-display setup instantly.
• Enlarge mobile apps onto a bigger screen.
• Extend their display to other PCs.
• Enjoy unified control across different operating systems.

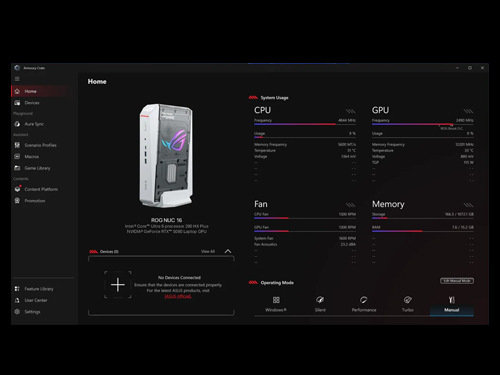

Armoury Crate Software Interface

Armoury CrateFrom monitoring CPU performance to adjusting fan speeds, the Armoury Crate software enables easy management of various system settings and parameters.

• Hardware Monitoring.
• Cooling Control.
• Driver & Software Updates.
• Game Library Integration.

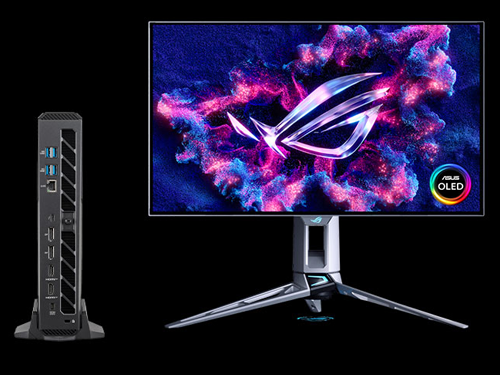

Mini PC next to a monitor

Power SyncASUS Power Sync allows simultaneous power control between the NUC and the monitor via HDMI CEC, creating an integrated gaming space.

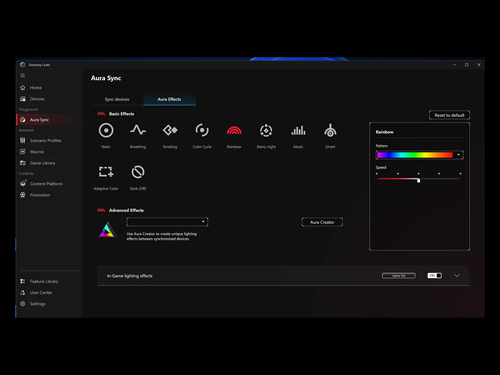

AURA Sync Software Interface

Aura SyncSynchronise Aura Sync-enabled devices and customise lighting effects via the intuitive Armoury Crate app. Create awesome light shows using the entire colour spectrum and a wide range of dynamic lighting effects.

Versatile Connectivity

With support for WiFi 7 and up to 320MHz channel bandwidth, the ROG NUC 16 delivers ultrafast wireless connectivity for smooth, lag-free online gaming and high-speed data transfers. Plus, Bluetooth® 5.4 ensures seamless connections to headsets, external graphics, and other peripherals for fully immersive gaming experiences.

Mini PC next to a monitor and keyboard setup

Thunderbolt™ 4Thunderbolt™ 4 connectivity provides all the bandwidth required for immersive 4K video output and superfast data transfer speeds.

LAN comparison image

2.5 GbpsSuperfast 2.5Gbps LAN ensures stable network connectivity and smooth handling of data-intensive tasks.

Lifestyle image of a woman using the mini pc with a monitor

HDMI® 2.1The integrated HDMI® 2.1 port supports high-quality 4K@120Hz or 8K@60Hz output, with support for HDR10+ and eARC.

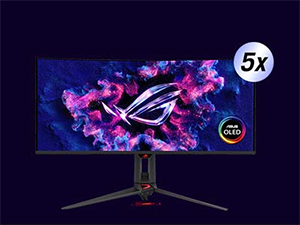

Image of compatible monitor

5 Displays SupportThe ROG NUC 16 can support up to five 4K displays via HDMI® 2.1, DisplayPort™ 2.1, and Thunderbolt™ 4.

Specifications
Edition ROG NUC 16
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core Ultra 9
CPU Model 290HX Plus
Architecture
Manufacturing Process
Unlocked CPU No
Core 24 Core (8 Performance, 16 Efficient)
No. of Threads 24
Clock Speed 2.7 GHz
Burst Frequency 5.5 GHz
CPU Cache 36MB
CPU Cooler
TDP
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR5 SO-DIMM
Memory Included Yes
Memory Capacity Included 32GB (2x16GB)
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR5 - 6400
Max. Memory Capacity 128GB (2x64GB)
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU Yes
Discrete GPU Chipset GeForce RTX 5070 Ti
GPU Architecture Blackwell
GPU Manufacturing Process 4 nm
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size 12GB
GPU Memory Type GDDR7
GPU Memory Clock
GPU Memory Bus 192 Bit
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
SATA N/A
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included Yes
SSD Storage Type M.2 PCIe NVMe SSD
SSD Storage Capacity 1TB
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type
  • 802.11be Wi-Fi 7
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel® Killer BE1750x Wi-Fi 7
  • 1 x Realtek (2.5GbE LAN)
Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x USB 3.2 Gen1 Type-C
  • 2 x USB 3.2 Gen2 Type-A

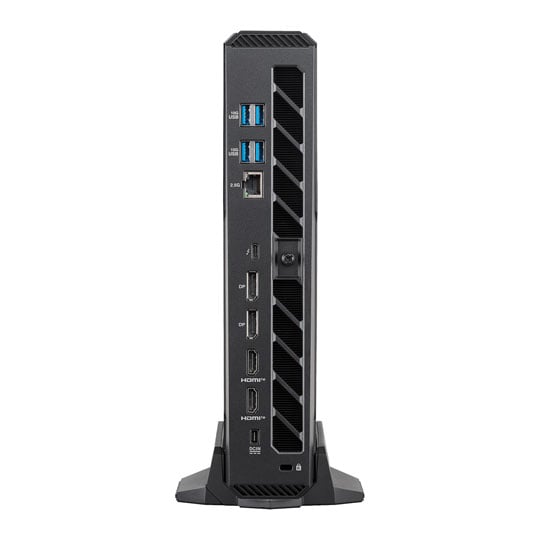

Back Panel
  • 1 x DC-In
  • 2 x DisplayPort 2.1
  • 2 x HDMI 2.1
  • 1 x Kensington Lock Slot
  • 1 x RJ-45
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x USB 4.0 Type-C / Thunderbolt / DP
Cooling Fans 3 x System Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 380 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included Yes
Operating System Windows 11 Home
Colour Black
Dimensions 282.4 x 56.5 x 189.5 (mm WxHxD)
Weight 3.12 kg
Includes
Notes
Additional Information
Scan Code LN170858
Model Number 90AS00S1-M000A0
GTIN 4711636477581
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
DOA Period:
7 days
