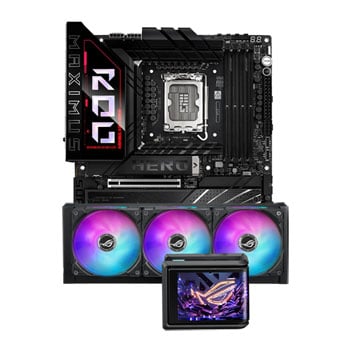

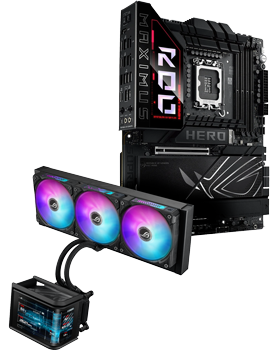

ASUS ROG MAXIMUS Z890 HERO Motherboard with ASUS ROG Ryuo IV SLC 360 ARGB AIO Intel / AMD AIO Bundle
ASUS ROG MAXIMUS Z890 HERO Motherboard with ASUS ROG Ryuo IV SLC 360 ARGB AIO Intel / AMD CPU Water Cooler Bundle
Email me when the availability or price changes
Finance this product
- From £28.02 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £19.98 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
ROG Maximus Z890 HERO
The ROG Maximus Z890 Hero unleashes the performance of Intel® CoreTM Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimised thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
ASUS AI Intelligence
AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
AI Networking II
Traffic Monitor
Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the “Channel Switch” button* for improved network performance.
Fast Check
Armoury Crate's Fast Check empowers users to rapidly detect WiFi signal strength?
Direction Finder
Armoury Crate's Direction Finder* helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.
Gamefirst
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streamingcloud gaming sessions. To provide a better user's experience, GameFirst is now integrated into Armoury Crate.
ASUS AI Advisor
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimisation features like AI Overclocking and AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
DDR5 Domination
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 8 GT/s mark on the ROG Maximus Z890 Hero, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.
DIMM Fit
DIMM Fit offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritising rock-solid stability, DIMM Fit provides optimisations tailored to your needs and your hardware configuration.
NitroPath DRAM Technology
NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinformed DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.
ROG Ultimate Power Solution
8 + 8-pin ProCool II power connectors
Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
22+1+2+2 Power Stages
The VRM features 22+1+2+2 power stages, each rated to handle up to 110 amps.
10K Black Metallic Capacitors
Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
MicroFine Alloy Chokes
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
Cutting-Edge Thermal Management
VRM and aluminium I/O heatsink
A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.
High-conductivity thermal pads
Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
M.2 heatsinks and backplates
Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and four of six onboard M.2 slots have dedicated backplates for additional heat dissipation.
Chipset heatsink
A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.
Six Onboard M.2 Slots
The ROG Maximus Z890 Hero features six onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces. It also features a SlimSAS connector, which supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately.
ROG M.2 PowerBoost
ROG M.2 PowerBoost is an exclusive ASUS motherboard feature that provides amperage exceeding industry standards, supporting all six onboard M.2 slots to operate simultaneously at optimal performance. This advanced power setup helps ensure stability and data integrity even under high loads, while also helping to ensure the rated lifespan of an M.2 SSD.
PCIe 5.0 Expansion Slot
The primary x16 expansion slot offers PCIe 5.0 with incredible speeds up to 64 GB/s for compatible devices, fully supporting next-gen graphics cards. To bear the weight of massive graphics cards, it is also protected with a SafeSlot retention bracket which can be released easily, thanks to PCIe Slot Q-Release Slim.
Boost Your Connectivity
WiFi 7
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
5Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5Gbps Ethernet.
2.5Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5Gbps Ethernet.
PCIE® SLOT Q-RELEASE SLIM
Simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot.?
M.2 Q-RELEASE
The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws.
NEW M.2 Q-LATCH
Tool-free installation or removal of M.2 SSDs with just one press.
M.2 Q-SLIDE
The new sliding M.2 latch design supports sizes 2242, 2260, and 2280 for easy device installation.
Q-ANTENNA
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
ROG Ryuo IV 360 ARGB White Edition
The ROG Ryuo IV 360 ARGB White Edition features a 6.67-inch AMOLED display with an innovative curved-screen design, enabling intuitive control through dedicated software to smoothly showcase 3D videos, customized content, or real-time hardware information. Cooling performance is driven by the upgraded Asetek Gen8 V2 pump, paired with ROG ARGB fans to deliver significantly advanced and stable thermal performance for high-end CPUs such as the AMD Ryzen™ 9000 and Intel® Core™ Ultra series.
ASUS ROG Ryuo IV 360 ARGB White AIO Intel / AMD CPU Water Cooler
Powered by the Asetek Emma Gen8 V2 pump, this cooling system delivers significantly advanced thermal performance, ensuring CPUs operate at optimal temperatures even under sustained and heavy workloads.
Precision Mount System
Core™ Ultra processors (Series 2), the Precision Mount System applies uniform contact pressure to enhance cooling and long-term reliability. Featuring pre-assembled elements, it ensures a faster, easier, and more secure installation.
Premium Metal Backplate
The premium metal backplate provides enhanced heat resistance versus plastic, and a mount that is secure, rigid and durable.

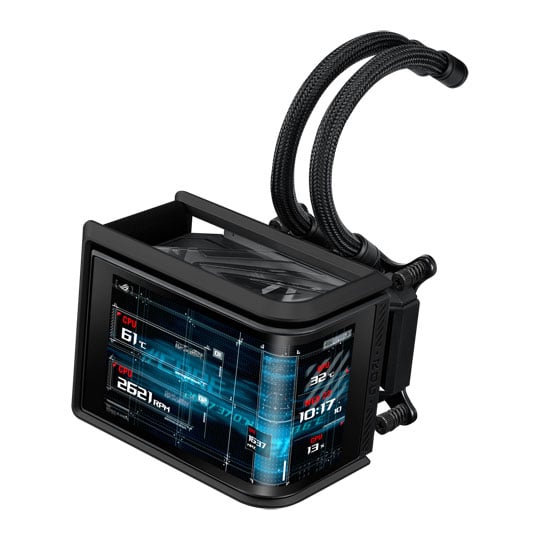

6.67" 2K AMOLED Curved Screen
The 6.67-inch 2K curved AMOLED screen features a high-resolution, vibrant colour display that provides the ultimate immersive visual experience.
Extraordinary Visual
The curved screen design supports naked-eye 3D video effects, creating an unprecedented visual feast. It also allows for customization of hardware information on the content, providing a remarkable combination of style and system monitoring.
Comprehensive Pre-loaded Material
A variety of built-in style libraries for players to choose from freely, making the AIO Cooler always the visual centrepiece of the computer.
Aesthetic Innovation
An innovative sliding mechanism enables horizontal adjustment of the screen module, reducing interference with motherboard components or memory modules. This design gives users the freedom to optimize viewing angles and achieve a cleaner, more refined aesthetic.
Enhanced Fan Performance
ROG RYUO IV MF-12C ARGB Fan delivers strong and stable airflow, further enhancing the cooling capabilities of your system.
Daisy-Chain Fan Interlinking
Daisy-chained ARGB fans dramatically reduce cable clutter from six cables down to one. A single connection now delivers power to both the ARGB lighting and fan motor for a cleaner, faster installation.
Aura Fan Edge
ROG front and side ARGB lighting elevates the gaming build, adding style.
Extensive Compatibility
The ROG Ryuo IV series is compatible with a wide range of Intel® and AMD motherboard platforms, giving you ample processor options and build flexibility.
ASUS ROG MAXIMUS Z890 HERO DDR5 PCIE 5.0 ATX Motherboard
• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
• Exclusive AI Technologies: ASUS AI Advisor, AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance
• Advanced Overclocking & Memory Technologies: NPU Boost, NitroPath DRAM Technology, DIMM Fit, DIMM Flex and AEMP III
• Robust Power Solution: 22(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimised Thermal Design: Massive heatsinks integrated with the I/O cover, joined by a U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads
• Latest M.2 Support: Three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, all with substantial cooling solutions

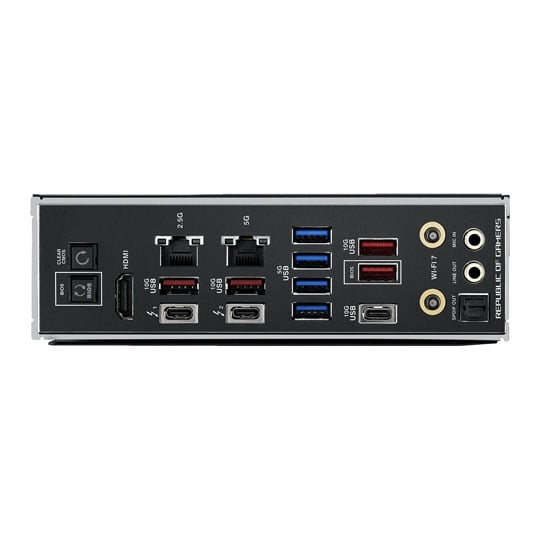

• Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C® ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for next-gen graphics cards, HDMI™ 2.1
• High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet
• DIY-Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
• Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9219 Quad DAC for up to 32-Bit/384 kHz playback
• Unmatched Personalisation: I/O cover with Polymo Lighting II, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
• Renowned Software: ASUS DriverHub, Dolby Atmos®, exclusive 1-year Internet Security subscription, TurboV Core, GlideX, HWiNFO, and bundled 1-year AIDA64 Extreme subscription
ASUS ROG Ryuo IV 360 ARGB White AIO Intel / AMD CPU Water Cooler
• Premium AMOLED Display: Features a massive 6.67" AMOLED panel for real-time system monitoring and customizable animations via ASUS InfoHub.
• Superior Heat Dissipation: High-performance copper CPU plate and a 399.5mm aluminium radiator ensure efficient thermal management for high-TDP processors.
• ROG RYUO IV MF-12C ARGB Fans: Three 120mm PWM/DC fans delivering 56.66 CFM airflow and 3.56 mmH2O static pressure at a quiet 30.7 dB(A).
• Extensive Compatibility: Ready for modern enthusiast sockets including Intel® LGA 1851/1700 and AMD AM5/AM4.
• Durable Construction: 400mm sleeved rubber tubing and a robust pump design backed by a 6-year warranty on the AIO module.
• Unified Ecosystem: Full AURA Sync support for seamless lighting integration with other ROG hardware and accessories.
