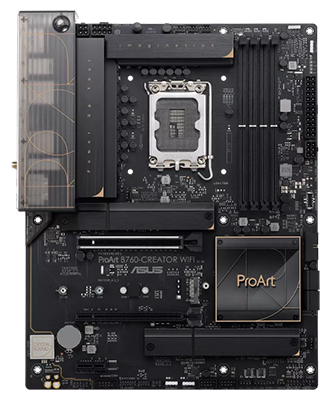

ProArt B760-CREATOR WIFI Intel ATX Motherboard from ASUS

ProArt B760-CREATOR WIFI Intel ATX Motherboard from ASUS.

Power Your Creative Vision The ASUS ProArt B760-Creator WiFi is designed for creative professionals seeking reliable performance, high-speed connectivity and efficient workflows. Supporting Intel processors and DDR5 memory, this motherboard combines robust power delivery with advanced expansion options to handle demanding creative applications. With WiFi 6E, 2.5Gb Ethernet, Thunderbolt™ (USB4®) header support and multiple PCIe and M.2 slots, it offers versatile connectivity for modern creator setups. Its professional design and comprehensive features make it an ideal foundation for building a powerful, future-ready workstation.

Intel® B760 Chipset

LGA1700CPU Socket

Intel® Core™ 14th/13th/12th GenProcessors

ATXForm Factor

Comprehensive Connectivity

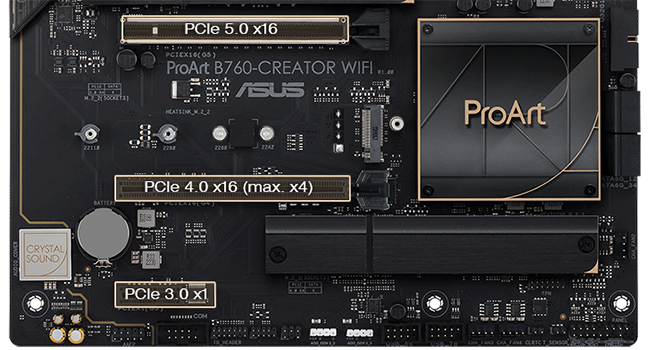

PCIe 5.0, 4.0 and 3.0 slots highlighted on motherboard.

PCIe 5.0 for Graphics Cards The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.

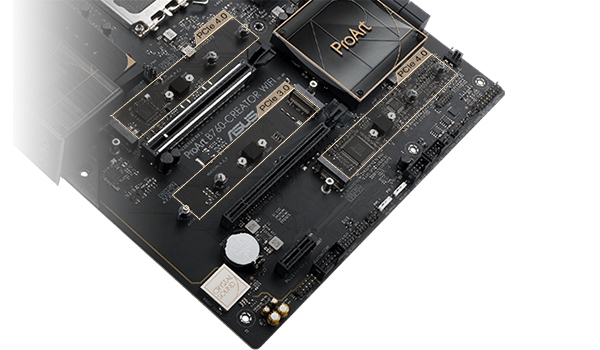

PCIe 4.0 and 3.0 M.2 slots highlighted on motherboard.

PCIe 4.0 M.2 Storage The ProArt B760-Creator WiFi features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.

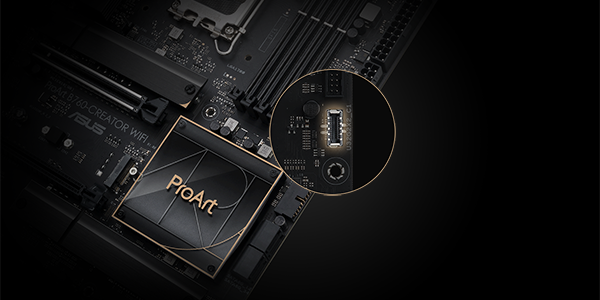

USB 3.2 Gen 2x2 Type-C front panel connector.

USB 3.2 Gen 2x2 Type-C® USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

Thunderbolt / USB 4 connector.

Thunderbolt™ / USB4® Support The ProArt B760-Creator WiFi features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.

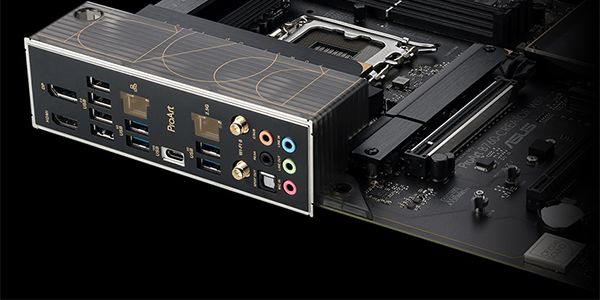

Rear of motherboard, revealing IO connectivity.

Dual Ethernet 2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organisation and security.​

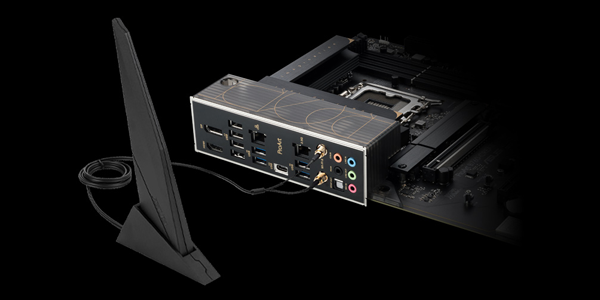

Rear of motherboard with WiFI 6 antenna attached.

Intel® WiFi 6 AX201 The Intel® WiFi 6 AX201 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps.

The Core of Your Workstation

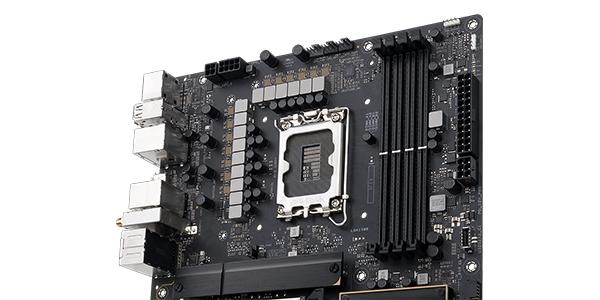

12+1 Teamed Power Stages highlighted on motherboard.

12+1 Teamed Power Stages Rated for 50 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the demands of​ the latest 13th & 12th Gen Intel Core processors.​

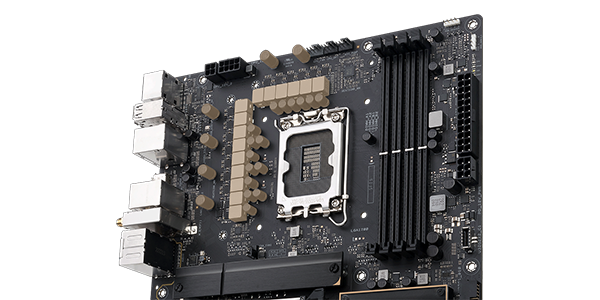

Chokes and capacitors highlighted on motherboard.

Chokes & Capacitors Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

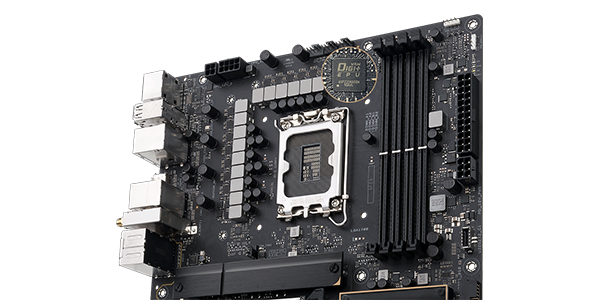

Digi+ Power Control highlighted on motherboard.

Digi+ Power Control The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

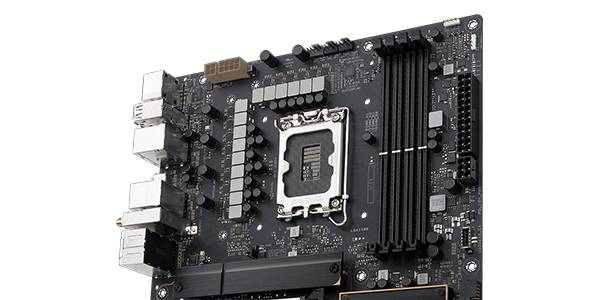

ProCool Power Connectors highlighted on motherboard.

ProCool Power Connectors These components are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

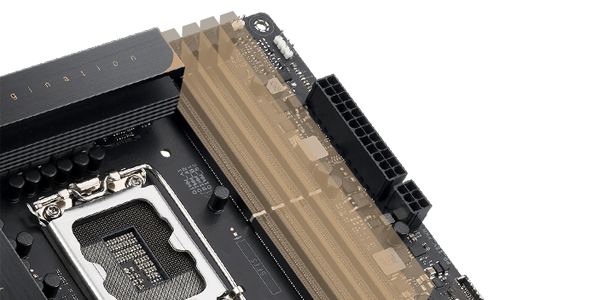

DDR5 DIMM slots.

Unleash DDR5 with AEMP II ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module's ability to train the memory chips on your kit, and it presents an optimised clock speed that can effortlessly unleash performance.

Flexible Air and Liquid-Cooling Controls

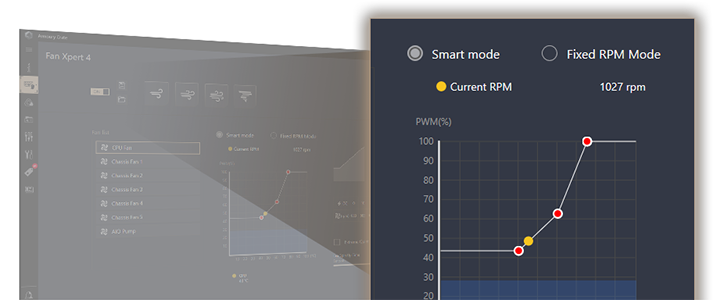

ASUS Fan Xpert 4 user interface.

ASUS Fan Xpert 4. ASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.

Optimise Your Workflow

Two-Way AI Noise Cancellation As working from home has become the new normal for many users, clear online communication is more critical than ever. Two-Way AI Noise Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back, so your calls and video conferences with partners and clients can be crystal clear.

Microphone icon.

Customise Your Settings

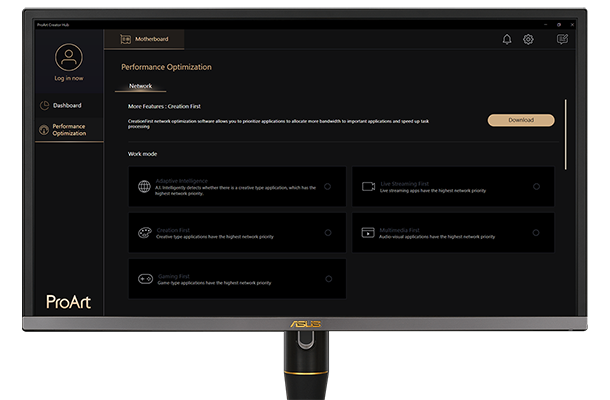

ProArt Creator Hub ProArt Creator Hub is your personal portal for monitoring your PC status, customising settings, and optimising your workflow. It boasts an intuitive overview dashboard and a network optimisation application that offers five network modes. These modes optimise bandwidth efficiency for different tasks and simplify switching between performance modes.

ProArt Creator Hub on monitor screen.
Specifications
Core Specifications
Edition PROART B760-CREATOR WIFI
Form Factor ATX
CPU Socket 1851
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity 192GB (4x48GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x AIO Pump Connector (4-Pin)
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x Thermal Sensor Header
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi
  • Wired 2.5 Gigabit LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (Gigabit LAN)
  • 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 5 x Audio I/O
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x WiFi 802.11ax 6 / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN172423
Model Number 90MB1FY0-M1EAY0
GTIN 4711387275962
