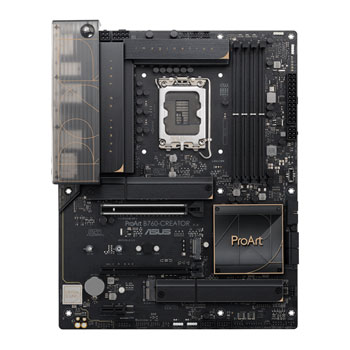

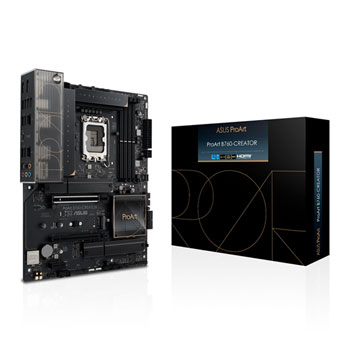

ASUS Intel B760 ProArt CREATOR DDR5 ATX Motherboard

ASUS ProArt B760 Creator, Intel B760, S 1700, DDR5, SATA3, PCIe 5.0, 3x M.2, 2.5GbE, USB 3.2 Gen2x2, ATX

Thumbnail 1 : ASUS Intel B760 ProArt CREATOR DDR5 ATX Motherboard Thumbnail 2 : ASUS Intel B760 ProArt CREATOR DDR5 ATX Motherboard Thumbnail 3 : ASUS Intel B760 ProArt CREATOR DDR5 ATX Motherboard Thumbnail 4 : ASUS Intel B760 ProArt CREATOR DDR5 ATX Motherboard
Scan code: LN136293 Manufacturer code: PROART B760 Creator
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
£219.98
Get it Tomorrow, 14 JulIn stock
From £10.75 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £19.93
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £239.16
Monthly Payment: £10.75
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £257.74
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 15th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

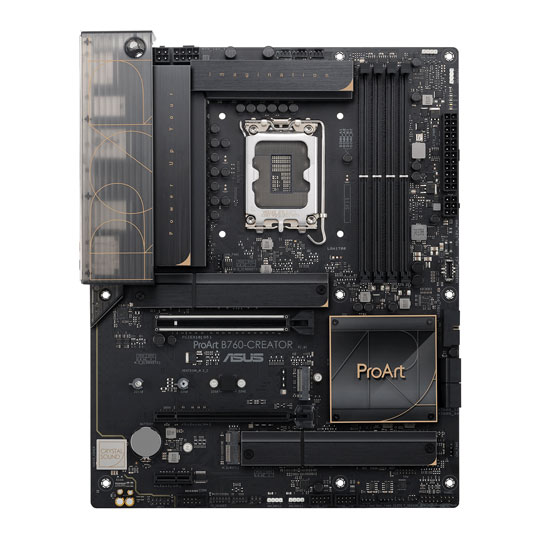

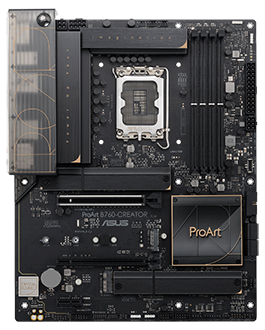

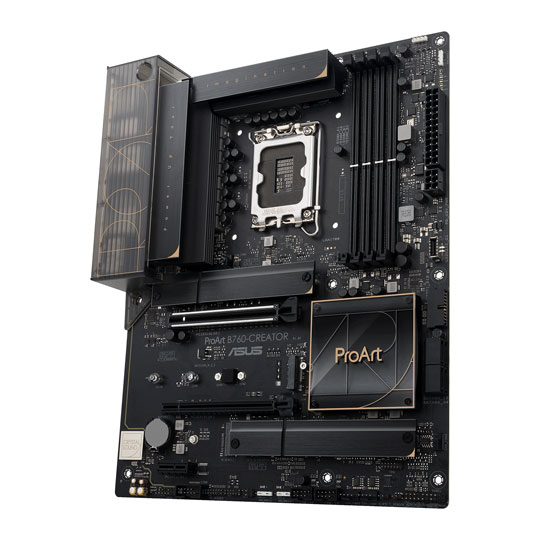

Intel B760 ProArt B760-CREATOR ATX Motherboard from ASUS

B760

Your Powerhouse for Creativity ProArt B760-Creator is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™ 4 header.

Intel B760Chipset

LGA 1700CPU Socket

ATXForm Factor

Comprehensive Connectivity

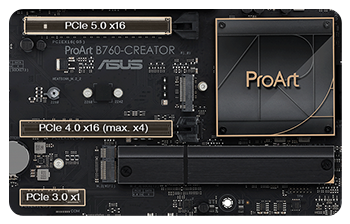

PCIe 5.0

PCIe 5.0 for Graphics CardsThe 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.

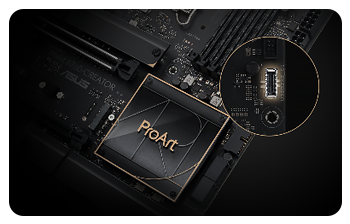

USB 3.2 Gen 2x2 Type-C® Front-Panel Connector

USB 3.2 Gen 2x2 Type-C® Front-Panel ConnectorUSB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

USB4® SUPPORT

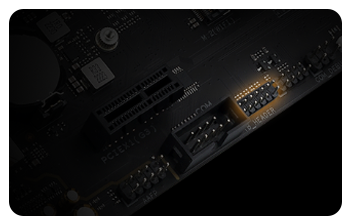

THUNDERBOLT™ / USB4® SUPPORTThe ProArt B760-Creator features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card (sold separately), this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.

PCIe 4.0 M.2 Storage

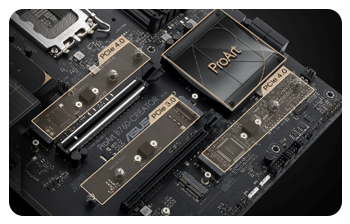

PCIe 4.0 M.2 StorageThe ProArt B760-Creator features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.

Dual Ethernet

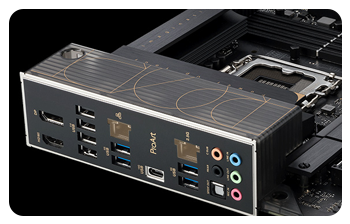

Dual Ethernet2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organisation and security.

M.2 Slot (Key E)

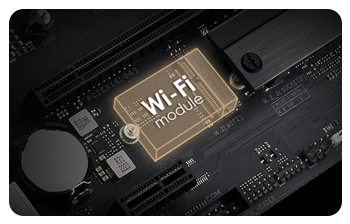

M.2 Slot (Key E)The ProArt B760-Creator features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

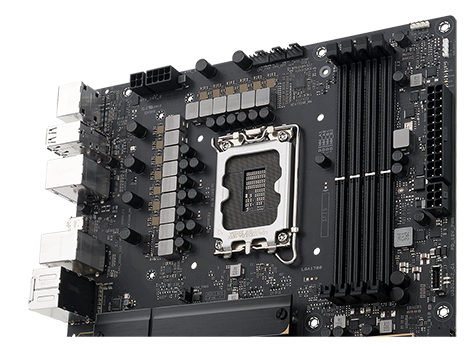

Next-Gen Performance

robust power delivery With tailored CPU power delivery and support for high-performance memory, ProArt B760-Creator easily handles the demands of the latest 13th Gen Intel Core processors. It features an intelligent VRM design that's rated for 50 amps, plus carefully selected components and memory layout optimisations for the ultimate performance.

Robust power design

12+1 teamed
power stages
Rated for 50 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the demands of​ the latest 13th & 12th Gen Intel Core processors.​

Chokes &
capacitors
Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Digi+
power control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

ProCool
power connectors
These components are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.


Unleash DDR5 with AEMP II

Unleash DDR5 with AEMP IIASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module's ability to train the memory chips on your kit, presenting an optimised clock speed to effortlessly unleash performance. AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.

Flexible Air and Liquid-Cooling Controls

ASUS Fan Xpert 4

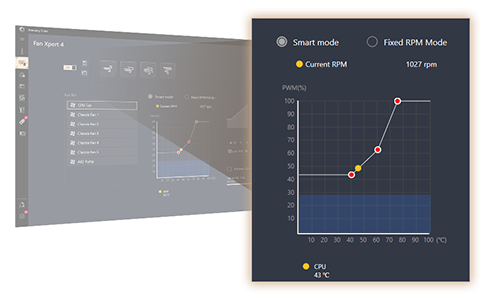

Optimised CoolingASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.

Security Control and Remote Management

Advanced security management functions from ASUS Control Center Express protects the systems and confidential data in your creative studio.

USB port management

USB port managementEnable or disable USB ports or set them to Read Only to prevent data leaks.

Software blacklist

Software blacklistFor added security, a software blacklist is available to help identify high-risk applications.

up

Registry editor enabled/disabledRemotely disable the Registry Editor on client devices to prevent unauthorised changes to system configurations.

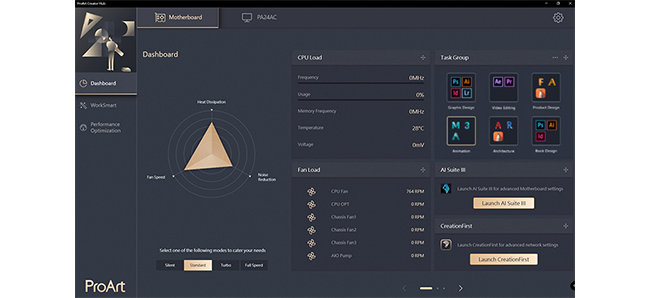

Do More with ProArt Creator Hub

ProArt Creator Hub

an interface for creativesA user-friendly interface helps enhance workflows via a central system that allows monitoring and control of all connected ProArt products, including motherboards and displays. Fan mode allows you to select the preferred fan setting to quickly configure the system’s cooling performance. Task grouping allows applications that are frequently used together to be arranged into groups and launched with a single click.

Specifications
Core Specifications
Edition PROART B760 Creator
Form Factor ATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Aura Addressable Gen2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 3 x M.2 Connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • Wired 2.5 Gigabit LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x Gigabit LAN

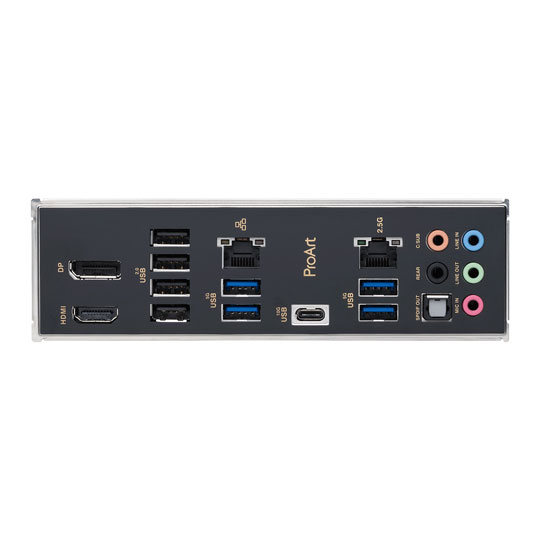

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN136293
Model Number PROART B760 Creator
GTIN 4711387179727
