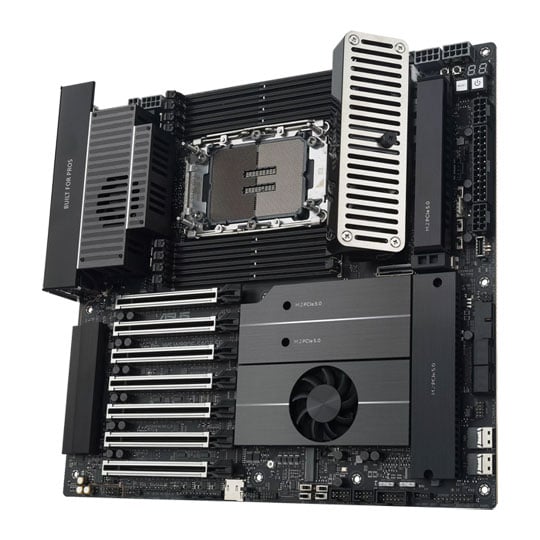

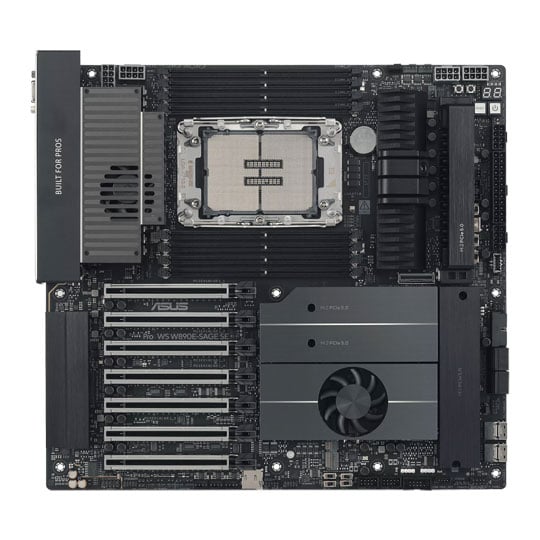

ASUS Pro WS W890E-SAGE SE Intel Xeon 600 PCIe 5.0 SSI-EEB Motherboard

A Workstation Wonderland

The Pro WS W890E-SAGE SE workstation motherboard is deftlytailored for creative professionals, developers and engineers,unleashing the dominate performance of the latest Intel Xeonprocessors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCle 5.0 and networking connectivity, Pro WS W890E-SAGE SE melds no- compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries. Pro WS W890E-SAGE SE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.

Multi-GPU Support

The Pro WS W890E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications.

Ultra Fast Networking

Featuring dual onboard 10 Gb LAN ports powered by the cutting-edge Intel® E610-XAT2 Ethernet controller, the Pro WS W890E-SAGE SE makes short work of multi-terabyte transfers and provides server-grade connectivity with low-latency. It also features a 1 Gb Ethernet port to provide fast and reliable data transfers to the onboard baseboard management controller (BMC) for remote management functions.

Embrace Next-Generation USB4®

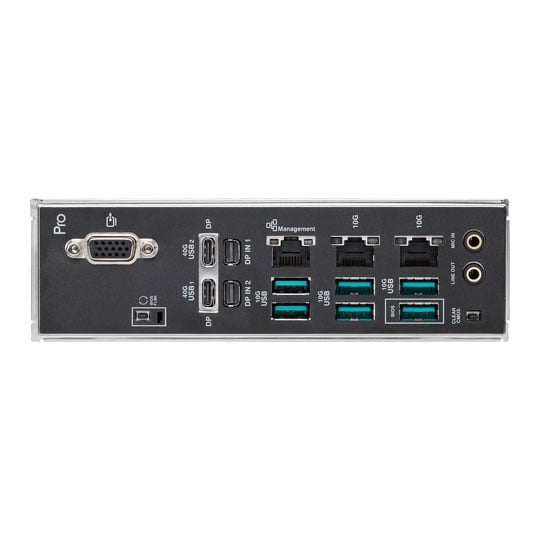

The USB Type-C port in the rear offers a DisplayPort™ alt mode with support for up to 8K resolution at 60 Hz, providing great compatibility for Type-C monitors and portable displays which are getting popular among creators.

Quadruple Gen5 M.2 Slots

The Pro WS W890E-SAGE SE includes up to four onboard M.2 slots. Users working with massive files can RAID together multiple NVMe devices for massive I/O bandwidth and speedy data transfers.

Dual SlimSAS Expansion

The Pro WS W890E-SAGE SE motherboard also features two SlimSAS ports for connecting industrial SSD drives, servers and networking equipment.

Onboard Gen5 MCIO

An onboard MCIO x8 connector (PCIe 5.0 x4/x4) delivers lightning-fast data transfer, supports high-performance NVMe storage, allows flexible device expansion, and ensures efficient cable management — ideal for workstations demanding exceptional bandwidth and connectivity.

Overclocking Ready

For Intel W890 series workstations, we offer CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS W890E-SAGE SE motherboard. Along with robust power delivery and advanced cooling modules, this motherboard exhibits enhanced stability during overclocking. Hardware switches and optimized BIOS options provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling XMP settings. NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability.

16+2+2+1+2

The Pro WS W890E-SAGE SE voltage regulator module setup is comprised of 16+2+2+1+2 power stages, delivering the power and efficiency that the latest Intel® Xeon® 600 Processors for Workstation demand, with stability for extreme overclocking.

VRM Cooling Solutions

Both sides of the VRM feature extruded aluminum heatsinks that deliver exceptional heat dissipation. The left heatsink comes with a built-in active cooling fan for enhanced MOSFET cooling, while the right side supports the included the AngleBoost Fan Kit, providing additional airflow for both the MOSFET and DRAM areas.

AngleBoost Fan Kit

A detachable cooling solution designed to deliver active and efficient airflow to tightly spaced DDR5 modules and the MOS area. With Fan Xpert 4 support, the fan intelligently detects temperatures and automatically adjusts fan speed for optimized and efficient cooling performance.

ProCool II Connectors

ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.

Onboard PCIe Power Connectors

Two additional 8-pin PCIe cable connectors? built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.

ECC RDIMM Memory Support

The Pro WS W890E-SAGE SE motherboard boasts a robust design featuring eight R-DIMM DDR5 memory module slots with ECC support, to improve the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.

On-board BMC

Pro WS W890E-SAGE SE workstation motherboard features compatibility with BMC connections, and it is bundled with ASUS Control Center Express software to provide comprehensive in-band and out- of-band management features for businesses and industries.

Control Centre Express

The Pro WS W890E-SAGE SE comes with ASUS Control Center Express, real-time IT monitoring and management software designed for business that improves productivity and enhances security and can help prevent unauthorized access and data leaks.

Overkill Thermals

A heavy chipset heatsink smashes any accumulation and keeps heat pockets in control with an active fan. Next to this you'll find that every NVMe M.2 slot has a large dedicated heatsink for maximum reliability as gen 5 speeds are known to get toasty within the upper bracket. Remove the headache of prioritising one slot with special treatment and rest assured that all four slots get equal premium cooling. The powerful 10GbE LAN ports also get recognition as 24/7 feedback can heat the ports and slow performance over time.

Comprehensive Fan Controls

The Pro WS WRX90E-SAGE SE offers advanced fan control, configurable via an IPMI web UI, Q-FAN in the UEFI BIOS*, or Fan Xpert 4 in Armoury Crate for Windows. Each header can be connected to a 3A/12V high speed fan and set to monitor and react to thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4, UEFI and IPMI web interfaces.

SafeSlot & SafeDIMM

PCIe 5.0 is 2X faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering users to insert modules with speed, accuracy and confidence.

Easy DIY for Professional Networking

The new M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

Built for Around-The-Clock Operation

Optimized for 24/7 operation, the Pro WS W890E-SAGE SE motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.

Built for Firm Protection

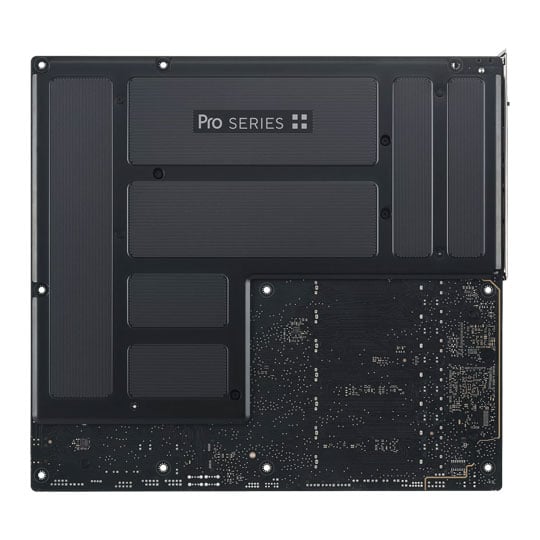

The back-plate on the back of the motherboard provides protection for adjacent electrical components and circuits.

• SSI-EEB workstation motherboard based on the Intel W890 chipset, supporting Intel Xeon 600 Series Workstation processors with CPU and memory overclocking support.
• Seven PCIe 5.0 x16 slots deliver extensive expansion potential for multi-GPU rendering, simulation and AI workloads.
• Four onboard PCIe 5.0 M.2 slots with dedicated removable heatsinks, providing ultra-fast NVMe storage performance for large project files.
• Dual 10GbE networking powered by Intel E610-XAT2 controllers enables high-bandwidth data transfers and low-latency connectivity.
• Onboard BMC and dedicated 1GbE management port enable advanced in-band and out-of-band remote management.
• USB4 Type-C connectivity with DisplayPort Alt Mode support and display output up to 8K at 60Hz.
• Eight DDR5 ECC RDIMM slots support high-capacity workstation memory with enhanced data integrity and reliability.
• NitroPath DRAM technology and optimized memory routing improve DDR5 performance, stability and overclocking headroom.
• 16+2+2+1+2 power stage design paired with dual PSU support for demanding Xeon processors and overclocked workloads.
• Dual onboard 8-pin PCIe power connectors help maintain stable power delivery in multi-GPU configurations.
• Dual SlimSAS ports and an onboard PCIe 5.0 MCIO connector expand storage and high-speed connectivity options.
• Comprehensive cooling design includes active VRM cooling, dedicated Gen5 M.2 heatsinks and the included AngleBoost Fan Kit.
• SafeSlot PCIe reinforcement and SafeDIMM protection help safeguard installed graphics cards and memory modules.
• ASUS Control Center Express software provides centralized system monitoring, management and security features.
