Scan code: LN134382 Manufacturer code: PRO WS W790E-SAGE SE

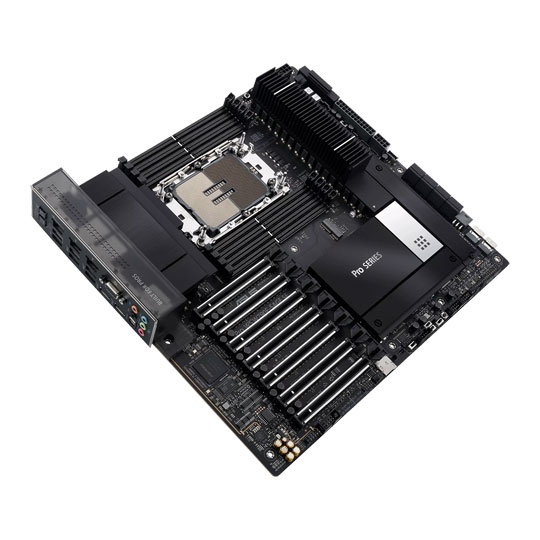

ASUS Pro WS W790-SAGE SE Intel Xeon CEB PCIe5.0 Motherboard

ASUS Pro WS W790-SAGE SE, Intel Xeon W790, LGA 4677, DDR5, SATA3, PCIe 5.0, 3x M.2, Dual 10GbE, USB 3.2 Gen2x2, EEB

Thumbnail 1 : ASUS Pro WS W790-SAGE SE Intel Xeon CEB PCIe5.0 Motherboard Thumbnail 2 : ASUS Pro WS W790-SAGE SE Intel Xeon CEB PCIe5.0 Motherboard Thumbnail 3 : ASUS Pro WS W790-SAGE SE Intel Xeon CEB PCIe5.0 Motherboard Thumbnail 4 : ASUS Pro WS W790-SAGE SE Intel Xeon CEB PCIe5.0 Motherboard
Scan code: LN134382 Manufacturer code: PRO WS W790E-SAGE SE
Order now and get it tomorrow, Wed 22nd May
£1,199.99
Get it Tomorrow, 22 MayIn stock
From £33.84 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £108.72
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,199.99
Total inc. interest: £1,304.56
Monthly Payment: £58.60
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,199.99
Total inc. interest: £1,406.22
Monthly Payment: £42.02
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,199.99
Total inc. interest: £1,512.73
Monthly Payment: £33.84
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,199.99
Total inc. interest: £1,623.96
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £31.89 / month (APR 19.9%)
Delivery Options
  • By DPD On 22nd May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview

Performance, Productivity, Proven

The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimised memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.


Low-Profile Professionalism

With metallic black aluminium extrusions, stainless steel black mesh with highlighted details, and a transparent smoky grey I/O cover, Pro WS W790 series presents a professional, low-profile look for content creators.


Multi-GPU Support

Pro WS W790E-SAGE SE features seven PCIe® 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modelling and simulation, and rendering applications.


14+1+1 Power Stages

Pro WS W790E-SAGE SE’s VRM is comprised of 14+1+1 power stages, and delivers the power and efficiency that the latest Intel processors demand.


8-pin and 6-pin Power Connectors

Additional PCIe 8-pin and 6-pin power connectors can add power output stability when creators and developers use many graphic cards onboard.


Reliability with Supreme Memory Overclocking

The Pro WS W790E-SAGE SE supports 8-channel 1DPC DDR5 RDIMM ECC memory, allowing automatically to detect and correct data corruption, reducing the chance of system crashes. Being infused with deliberate memory trace layout, this motherboard enables DDR5 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads.


Intel X710-AT2 Dual 10G Ethernet

Featuring dual onboard 10G LAN ports, the Pro WS W790E-SAGE SE makes short work of multi-terabyte transfers from your creativity with low-latency.


USB 3.2 Gen 2x2 Type-C

The latest USB standard doubles transfer bandwidth by opening another USB 3.2 lane to achieve its maximum throughput of up to 20Gbps. In addition to blazingly fast data-transfer speeds, USB 3.2 offers easy connectivity and ultimate flexibility via USB-C ports.


3 M.2

Three onboard M.2 22110 slots on the Pro WS W790E-SAGE SE, two wired for PCIe 5.0 and one for PCIe 4.0, make it easy to install an initial set of drives. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. All these three M.2 rest under dedicated heatsinks to prevent SSD throttling under heavy loads and comes with ASUS Q-Latch.


More Storage

To connect even more high-speed storage, onboard SlimSAS slots let you connect industrial SSDs — not to mention server and networking equipment — through the fast PCIe 4.0 interface.


Front-Panel Connector

The front panel USB 3.2 Gen 2 connector is ready for next-gen PC cases and devices.


BMC Remote Management

An integrated BMC (Baseboard Management Controller) is a key feature for workstations. It uses a 1G Realtek controller, with one 1G port dedicated to the BMC to provide the intelligence for its IPMI architecture. The BMC manages the interface between system-management software and platform hardware. Administrators can remotely communicate with the BMC to take some corrective actions — such as resetting or power cycling a system.


ASUS Control Centre Express

The Pro WS W790E-SAGE SE comes with ASUS Control Centre Express - a real-time IT monitoring and management software designed for business that improves productivity and enhances security, helping prevent unauthorised access and data leaks.


Massive VRM Heatsinks

Since mass and airflow are critically important, our VRM heatsinks are manufactured with tall and densely packed fins, and are placed on the MOSFETs and chokes to enhance thermal efficiency. Additional fan bracket allows users to install up to three high-speed fans, drawing heat away from VRM areas to fully unleash the performance of the latest Intel processors.


Chipset Heatsink

A dedicated and beefy chipset heatsink draws heat away to maintain optimum operating temperatures.


M.2 Heatsinks

Three M.2 slots are covered by heatsinks to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads. M.2 backplate blocks on select slots go even further to ensure that you get peak performance from your next-gen drives.


Pre-Mounted I/O Shield

The patented I/O shield is finished in sleek matte black and comes pre-mounted for easy installation on the motherboard and is designed to allow air flow to keep the heat away from the board.


BIOS Flashback™

Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren't present.


Immersive Audio Experience

The Realtek S1220A 7.1 audio codec features high quality 120 dB SNR stereo playback output and 113 dB SNR recording input to offer pristine audio quality and is supported by EMI shielding and separate PCB layers for the left and right channels to maintain signal integrity.


Solid Compatibility Validation

The ASUS Pro WS W790 series has been extensively tested and validated under various environments and applications and support for the latest technologies with solid QVL lists for compatibility and reliability.


Protect Your Graphics Cards

SafeSlot is a PCIe® slot reengineered by ASUS to provide optimised attachment and shearing resistance. Manufactured in a single step using a new insert-moulding process, SafeSlot fortifies the slot with metal for enhanced strength and durability.


24/7 Reliability

Optimised for around-the-clock operations, The ASUS Pro WS W790 series is tested under temperatures of up to 45° C and humidity of up to 80% in order to ensure it can thrive in different environments.

Features

• Intel® LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors.
• CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC).
• Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C® and 2 SlimSAS.
• Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software - ASUS Control Center Express.
• Robust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates.
• Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility.

Specifications
Core Specifications
Edition Pro WS W790-SAGE SE
Form Factor EEB
CPU Socket 4677
Chipset Intel W790
RAM Memory Support
Memory Type DDR5
Memory Channel Octa (8)
Memory Type (ECC) ECC
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
Max. Memory Capacity 2048GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 7 x PCIe 5.0 x16
  • 8 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • Intel VROC Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
  • Virtual RAID On CPU
Internal I/O
  • 2 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 5 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 6-pin PCIe (Power)
  • 4 x 8-pin (Power)
  • 1 x 8-pin PCIe (Power)
  • 2 x BMC Switch
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 1 x LN2 Mode jumper(s)
  • 3 x M.2
  • 1 x MicroSD Card Socket
  • 2 x PMBUS Header
  • 1 x ReTry Button
  • 1 x Safe Boot Button
  • 8 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x START (Power On) button
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
  • 1 x VGA connector
  • 1 x VROC Connector
External Connectivity
Network Interface Type Wired 10G LAN
Network Chip/Modules

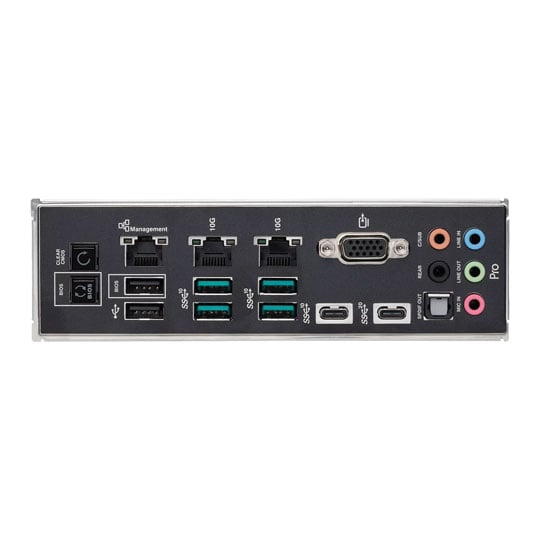

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 3 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 330 mm
Note
Additional Information
Scan Code LN134382
Model Number PRO WS W790E-SAGE SE
GTIN 4711387123515
