Pro WS W680-ACE ATX Workstation Motherboard by ASUS

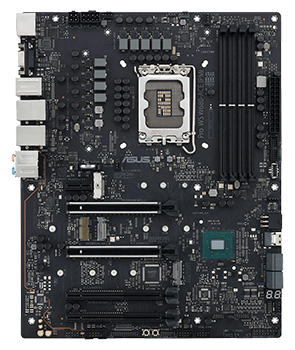

Pro WS W680-ACE Motherboard

WORKSTATION MOTHERBOARDASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralised management software, so they're also an efficient and cost-effective option for IT administrators.

W680Intel Chipset

LGA 1700Intel Socket

ATXForm Factor

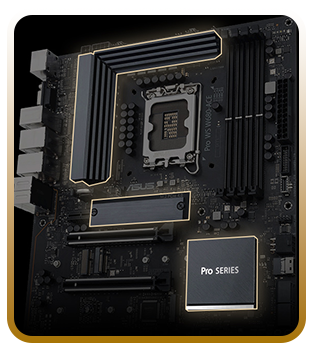

Thermal Solution

Thermal Solution

VRM Heatsink A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.

PCH Heatsink An expanded surface area for the chipset cooler maximizes performance and heat dissipation.

M.2 Heatsink M.2 slot has a dedicated heatsink keep the M.2 SSD at optimum operating temperature to ensure consistent performance and reliability.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Flexible System Configurability and Expandability

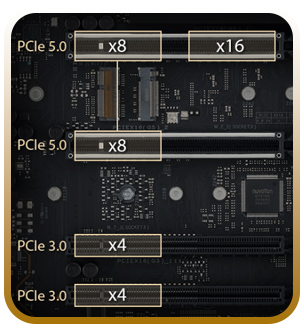

Multi-GPU Support

Multi-GPU SupportExperience the power of two PCIe 5.0 x16 slots for unprecedented graphical processing — including support for NVIDIA® Quadro® — for enhanced performance in modelling, simulation, and rendering applications.

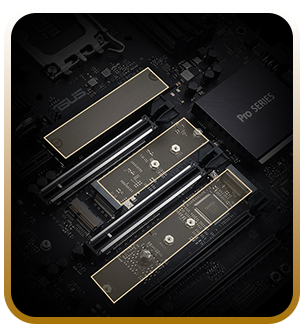

Triple M.2 Slots

Triple M.2 SlotsTriple M.2 slots support PCIe 4.0, offering up to 64 Gbps data-transfer speeds and flexible M.2 interfaces. The RAID 0/1/5/10 configuration are available for the data protection and increases fault tolerance to the entire system, higher storage capacity and better SSD performance.

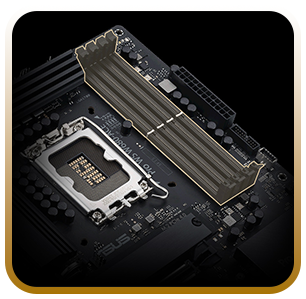

ECC Memory Support

ECC Memory SupportDesigned for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by the latest 13th and 12th Gen Intel processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability.

Premium Design

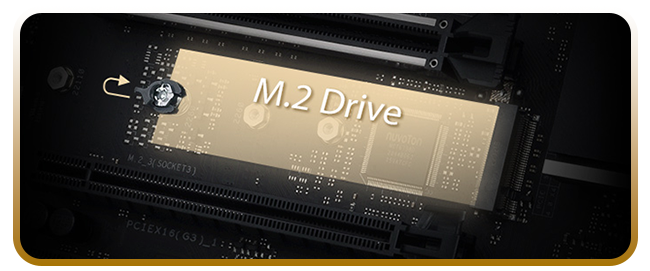

Q-Latch

Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

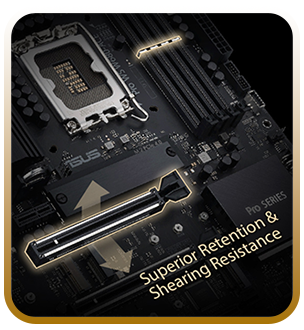

SafeSlot & SafeDIMM

SafeSlot & SafeDIMMPCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted their SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheaths support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.

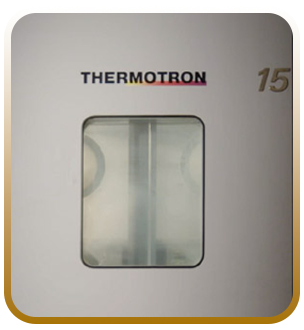

24/7 Dependability

Stable OperationOptimised for 24/7 operation, Pro WS W680-ACE motherboard is tested to work in temperatures of up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.

Dependability

168hrAging Time

45°CTemperature

80%Relative Humidity

Ultra Powerful Back IO

Comprehensive ConnectivityThe motherboard comes with four USB 3.2 Gen 1 type connector, one reversible USB Type-C connector and front-panel connector to support additional USB expansions.

Ultra Powerful Back IO
Specifications
Core Specifications
Edition PRO WS W680-ACE
Form Factor ATX
CPU Socket 1700
Chipset
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity 192GB (4x48GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
  • 2 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 6-pin PCIe (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS Header
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 4 x SATA III - 6Gb/s
  • 1 x SlimSAS Connector
  • 1 x START (Power On) button
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x T_Sensor Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type Dual Wired 2.5G LAN
Network Chip/Modules

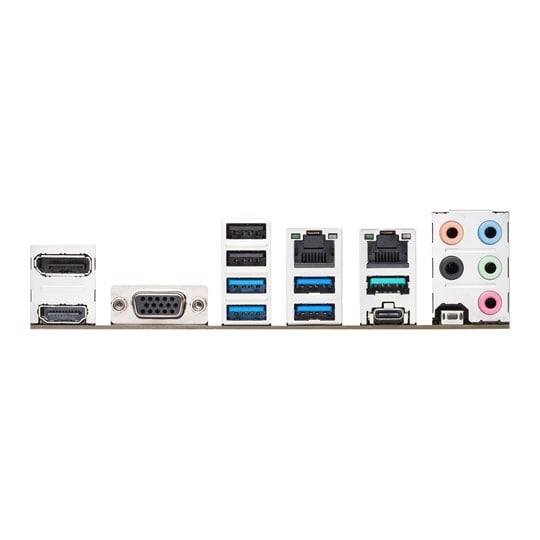

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN143195
Model Number 90MB1DZ0-M0EAY0
GTIN 4711387006177
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
