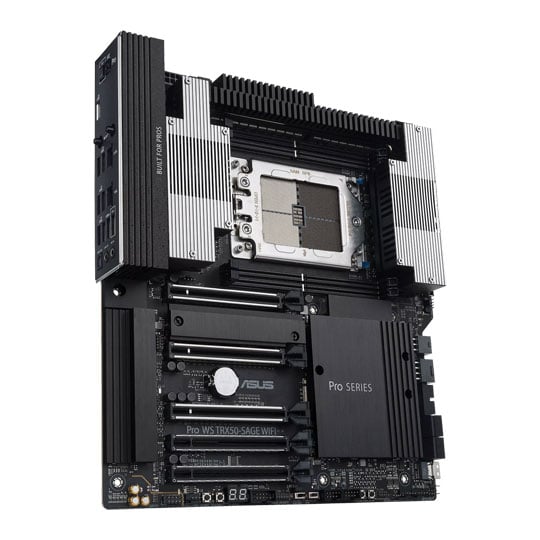

ASUS Pro WS TRX50-SAGE WIFI CEB Workstation Motherboard
ASUS Pro WS TRX50-SAGE WIFI, AMD TRX50, sTR5, DDR5, SATA3, PCIe 5.0, 3x M.2, 2.5GbE, USB 3.2 Gen2, CEB
-
0% UP TO MONTHS Spend £99 or more and choose PayPal at checkout.
More info
- SCANPROTECT Protect against installation damage for 28 days. More info
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
A Workstation Wonderland
The Pro WS TRX50-SAGE WIFI motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-six power stages fuel AMD Ryzen Threadripper™ PRO 7000 WX-series and AMD Ryzen Threadripper™ 7000 series processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.
With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling and heat pipes on the VRM heatsinks, WiFi 7, USB 20Gbps port, SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI comes prepared for a wide array of scenarios and industries.
CPU and Memory Overclocking Ready
For AMD TR5 series workstations and high-end desktop (HEDT) models, AMD offers CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS TRX50-SAGE WIFI motherboard. Along with robust power delivery and advanced cooling modules, this board exhibits remarkable stability during overclocking. Hardware switches and optimised BIOS options on the motherboard provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation and high-end desktop computing.
Power Stages in VRM Area
The Pro WS TRX50-SAGE WIFI’s voltage regulator module setup is comprised of (18*2)+3+4+4 power stages, delivering the power and efficiency that the latest AMD Ryzen™ processors demand and stability for extreme overclocking.
Active VRM Cooling Solutions
The extruded aluminium heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency, while fins and hidden heat pipes also significantly improve heat dissipation.
ProCool II Connectors
ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.
Onboard PCIe Power Connectors
An 8-pin and 6-pin PCIe cable connector built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.
ECC R-DIMM Memory Support
The Pro WS TRX50-SAGE WIFI motherboard boasts a robust design featuring four R-DIMM DDR5 memory module slots with ECC support, a feature that improves the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.
Multi-GPU Support
The Pro WS TRX50-SAGE WIFI motherboard boasts a robust design featuring four R-DIMM DDR5 memory module slots with ECC support, a feature that improves the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.
WiFi 7
Next-gen WiFi 7 include the 6 GHz band and 4096 QAM, delivering up to 2.8X ultra-fast WiFi speeds. The revolutionary Multi-Link Operation (MLO)2 provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
Intel® 2.5 Gb Ethernet
Provides up to 2.5 faster transfers versus standard 1 Gb Ethernet connections for faster downloads and smoother high-res video streaming.
Embrace Next-Generation USB4®
Faster than ever and future-proof; once connected to this motherboard’s onboard USB4 header, the USB4 expansion card will enable bi-directional speeds of up to 40 Gbps and provide ample power to fast-charge devices.
SlimSAS Slot
The Pro WS TRX50-SAGE WIFI motherboard also features a SlimSAS port for connecting industrial SSD drives, servers and networking equipment.
ASUS IPMI Expansion Card
The Pro WS TRX50-SAGE WIFI is compatible with ASUS IPMI Expansion card featuring a dedicated Ethernet-to-BMC chip that provides the intelligence for its IPMI architecture. Administrators can remotely communicate with the BMC to take some corrective actions — such as firmware update or power cycling a system.
ASUS Control Centre Express
The Pro WS TRX50-SAGE WIFI comes with ASUS Control Centre Express - a real-time IT monitoring and management software designed for business that improves productivity and enhances security, helping prevent unauthorised access and data leaks.
Chipset Cooling
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
10 Gb LAN Cooling
An ideally located and extended heatsink on the 10 Gb Ethernet controller ensures the stable performance of high-speed networking anytime, anywhere.
M.2 Cooling
All three M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance from next-gen drives.
Around-the-Clock Operation
Optimised for 24/7 operation, the Pro WS TRX50-SAGE WIFI motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.
• AMD sTR5 Socket Supports up to 96-Core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors.
• CPU and Memory Overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC).
• Robust Power and Thermal Design: 36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad.
• Ultrafast Connectivity: three PCIe® 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C® and SlimSAS NVMe support.
• Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Centre Express software for real-time monitoring and management
• Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
