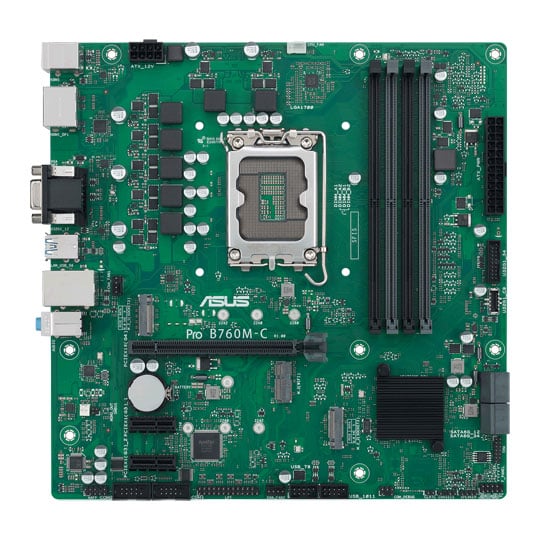

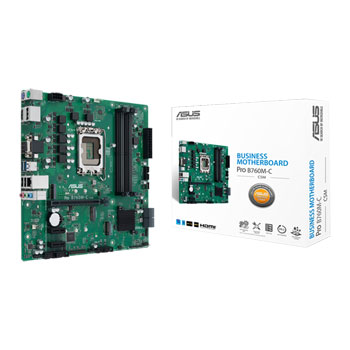

ASUS PRO Intel B760M-C-CSM ATX Motherboard

ASUS PRO B760M-C-CSM, Intel B760, S 1700, DDR5, SATA3, PCIe 4.0, 2x M.2, 2.5GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : ASUS PRO Intel B760M-C-CSM ATX Motherboard Thumbnail 2 : ASUS PRO Intel B760M-C-CSM ATX Motherboard Thumbnail 3 : ASUS PRO Intel B760M-C-CSM ATX Motherboard
Scan code: LN133365 Manufacturer code: PRO B760M-C-CSM
Order now and get it tomorrow, Wed 22nd May
£169.99
Get it Tomorrow, 22 MayIn stock
From £15.40 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £15.40
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £169.99
Total inc. interest: £184.81
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

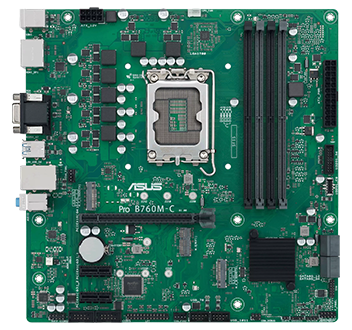

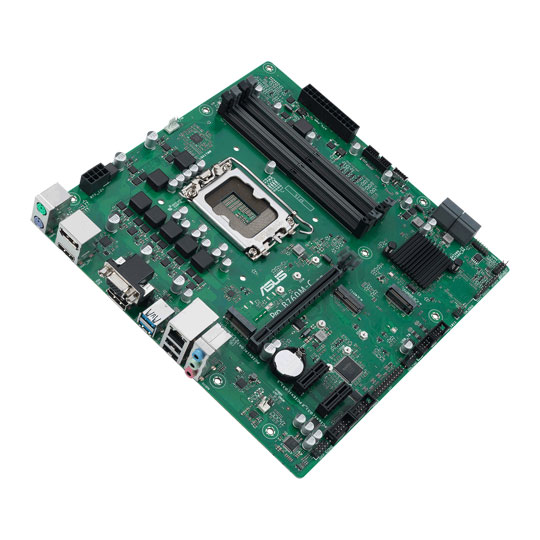

Pro B760M-C-CSM Intel 13th Gen Micro-ATX Motherboard from ASUS

B760M-C-CSM

NEXT GENERATION PROFESSIONAL MOTHERBOARDASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customisation. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximise your investment over the product life cycle and offers a high-quality, TCO-optimised solution for your business computing-needs.

LGA 1700CPU Socket

Intel B760Chipset

DDR5Memory Type

Micro-ATXForm Factor

ASUS Corporate Stable Model

Stable and Reliable SupportASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organisation to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Control
Center Express

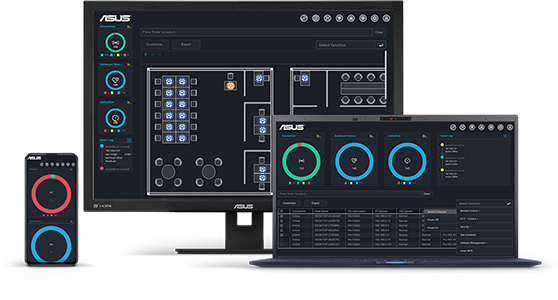

ASUS Control Center ExpressASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organisation.

Optimise IT
endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.

Automate
IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.

Securely manage
all endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices.

Super-Fast Memory Capability

4K Recording

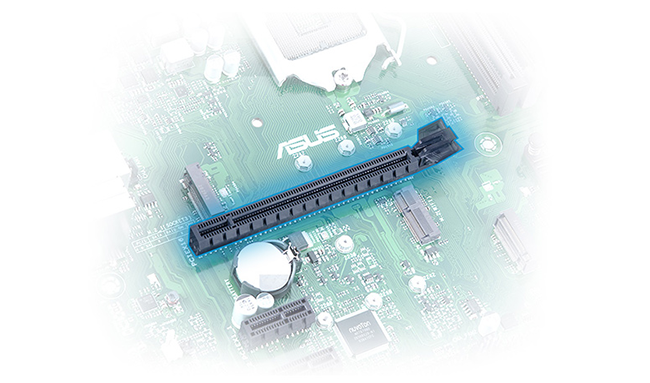

PCIe 4.0This business motherboard is specially designed for 13th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it’s needed.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

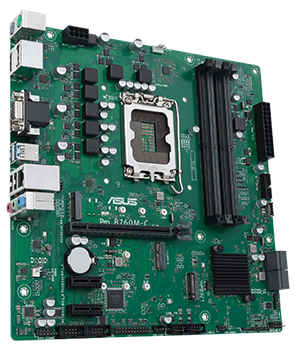

ASUS Shield

ASUS Shield

ASUS Self-Recovering BIOSASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

Trusted Platform Module(TPM)Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.

Certified NIST SP 800-147ASUS Business motherboard is certified by the national computer security standards.

ASUS Secure BootASUS business motherboard is set to check the firmware and signature of each piece of boot software.

Using the Finest Components

back

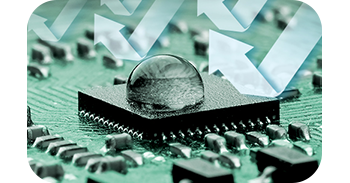

Anti-Moisture CoatingAn innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.


back

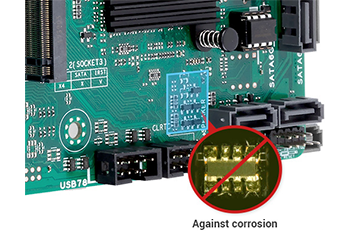

Anti-Sulfur ResistorsConsider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminium oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.


back

Stainless-Steel Back I/OCorrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.


back

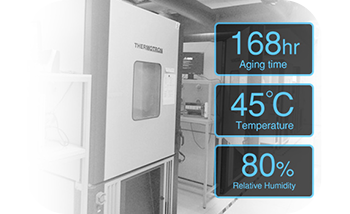

24/7 Reliability TestOptimised for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.

ASUS Commercial BIOS Kit

ASUS understands how important a customised product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!

down

BIOS Value Edit ToolCustomise the BIOS options.

up

BIOS Boot Logo ToolBrand your builds with a customised boot logo.

up

OEM Activation (OA) ToolsAdd or remove the OEM Activation key.

down

Desktop Management InterfaceEasily add customer information, such as company name, to the BIOS.

up

Intel® Management EngineUpdate the Management Engine without flashing the whole BIOS.

Remote IT Management

4K Recording

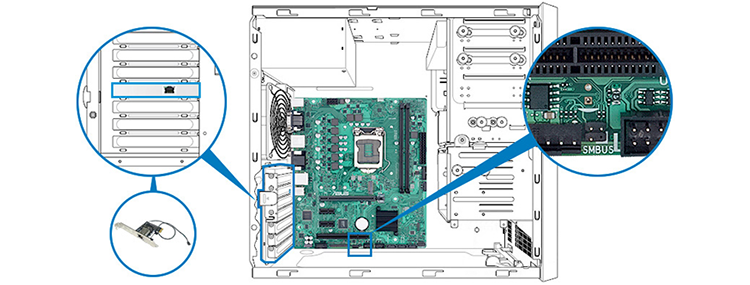

manage via networksThe onboard SMBUS header connects to a DASH LAN card (sold separately) for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network.

ASUS Serviceability

back

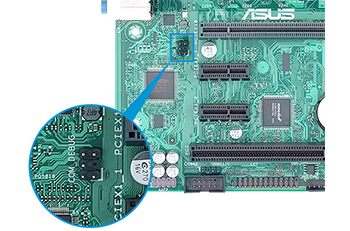

ASUS COM Debug HeaderThis 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card.


back

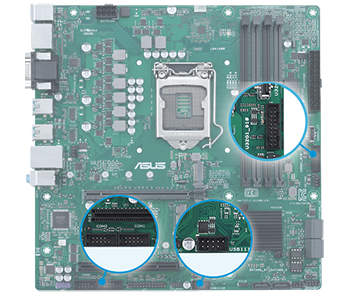

Box Headers All USB headers are box style, enabling fast connector installation and preventing pin damage.


back

Fixed-position ConnectorsConnector positions on ASUS Business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.

Specifications
Core Specifications
Edition Pro B760M-C-CSM
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface On-board
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
SATA Support SATA3 / M.2
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x Parallel Port (LPT) Header
  • 4 x SATA III - 6Gb/s
  • 2 x Serial (COM) Header
  • 1 x SMBus header
  • 1 x speaker header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules

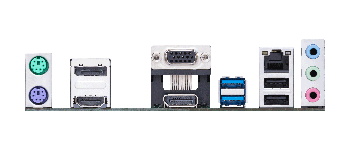

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA)
  • 2 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN133365
Model Number PRO B760M-C-CSM
GTIN 4711387014691
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
