ASUS PRIME Z890M-PLUS WiFi DDR5 PCIe 5.0 Micro-ATX Motherboard
ASUS PRIME Z890M-PLUS WiFi, Intel Z890, S 1851, DDR5, PCIe 5.0, 3x M.2, 2.5G LAN, WiFi7, TB4, mATX
Email me when the availability or price changes
Finance this product
- From £17.31 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Frequently Bought Together

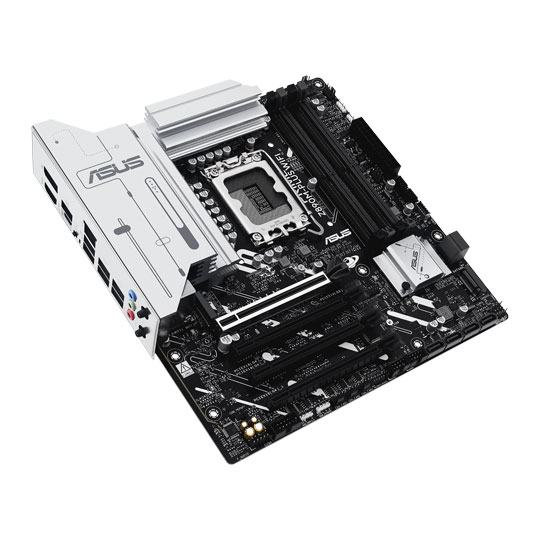

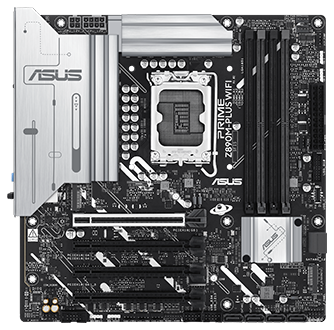

PRIME Z890M-PLUS WIFI Intel Micro-ATX Motherboard from ASUS
Expertly Engineered The ASUS PRIME Z890M-PLUS WIFI motherboard is a high-performance platform designed to unleash the power of Intel® Core™ Ultra Processors (Series 2). This motherboard combines a robust power design, comprehensive cooling solutions, and intelligent tuning options to deliver optimal performance for both users and PC DIY enthusiasts. With its intuitive software and firmware features, the PRIME Z890M-PLUS WIFI offers a wide range of performance optimisations and is engineered to be Advanced AI PC-ready, providing the necessary power and connectivity for demanding AI applications.
Intel Z890Chipset
LGA 1851CPU Socket
Intel Core Ultra Series 2Compatible CPU
mATXForm Factor
ASUS AI Intelligence
ASUS AI ADVISOR ASUS AI Advisor leverages AI technology to understand natural-language questions and scenario descriptions, enabling users to explore the functionality and advanced features of ASUS motherboards in a clear and accessible manner.
AI COOLING II Effortlessly achieve the perfect balance of thermals and acoustics in any build with just a single click.
AI NETWORKING II AI Networking II boosts performance, ensures reliable connectivity, and enhances WiFi 7 speeds.
Premium Power Solution

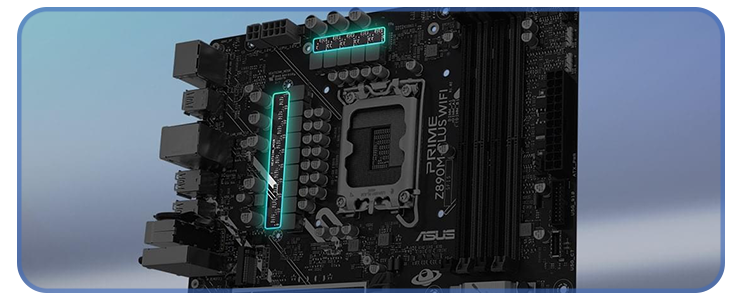

Premium Power Design Stable power delivery is essential for optimising Intel processor performance, and this motherboard is specifically designed for high-core-count CPUs. It features a robust power design with 10 + 1 + 2 + 1 power stages, each capable of handling up to 80A. This configuration ensures optimal efficiency, stability, and performance for both current and future Intel processors.
10 VCCCORE Power (80A, DrMOS)
1 VCCGT Power (80A, DrMOS)
2 VCCSA Power (80A, DrMOS)
1 VNNAON Power (80A, DrMOS)
Six Layered PCB design This PCB design efficiently dissipates heat from voltage regulators, enhancing system stability and overclocking potential.
ProCool Power Connectors ASUS ProCool connectors ensure full PSU contact, reducing impedance to prevent hotspots and failures.
Power Saving The robust power design is optimised for efficient power delivery to the CPU, lighting and fan settings.
Digi+VRM Control The Digi+ VRM delivers exceptional, ultra-smooth power to the CPU, setting industry standards for quality.
Push It To The Limit

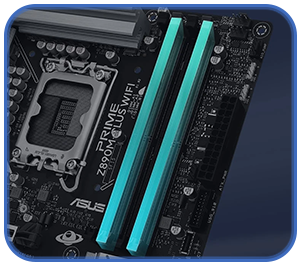

AEMP III for Ultimate DDR5 Performance ASUS Enhanced Memory Profile III (AEMP III) optimises memory performance with advanced CUDIMM memory. A two-phase tuning process enhances the clock driver and adjusts memory frequency, ensuring an optimal balance of performance and stability at high speeds.
DIMM FIT DIMM Fit is an ASUS BIOS feature that analyses memory modules to enhance performance and identify potential issues efficiently.

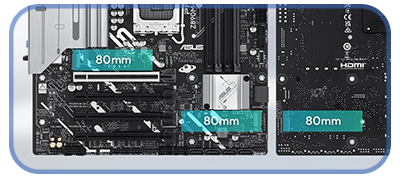

Three M.2 slots (up to 128Gbps) The PRIME Z890M-PLUS WIFI features three M.2 slots, with one supporting up to 128 Gbps via PCIe 5.0 and two with 64Gbps PCIe support.

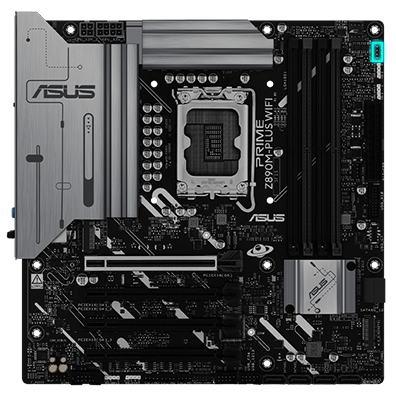

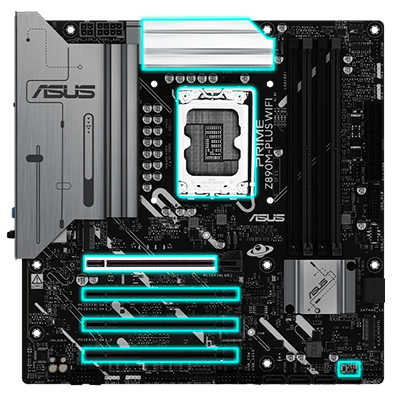

Cooler By Design

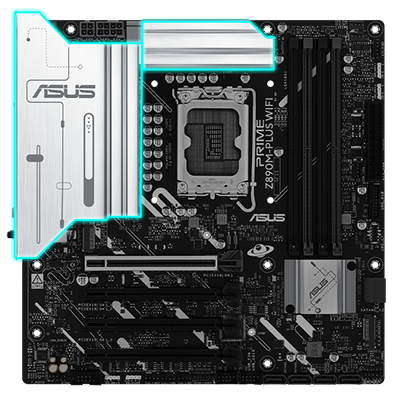

VRM Heatsink The large surface area of this heatsink effectively encompasses the MOSFETs and chokes, enhancing thermal performance.
AIO Pump Header An integrated AIO management system provides complete control over PWM or DC water pumps, making it ideal for both custom and all-in-one cooling configurations.
Smart Fan Protection A dedicated integrated circuit safeguards each fan header from overheating and overcurrent.
Multiple Temperature Sources Fan Xpert 4 enables each fan header to dynamically reference up to five thermal sensors, allowing users to map temperatures from supported ASUS graphics cards to optimise cooling for both GPU and CPU-intensive workloads. This advanced functionality allows for more precise and responsive fan control.

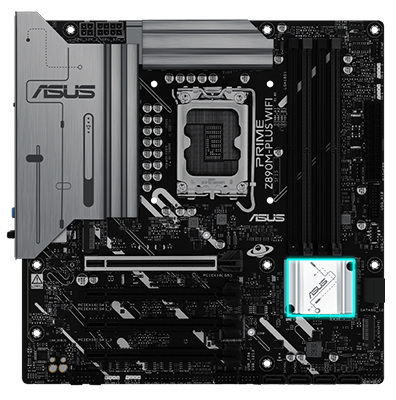

Superb PCH Heatsink An enlarged surface area for the chipset cooler maximises system performance and enhances heat dissipation.

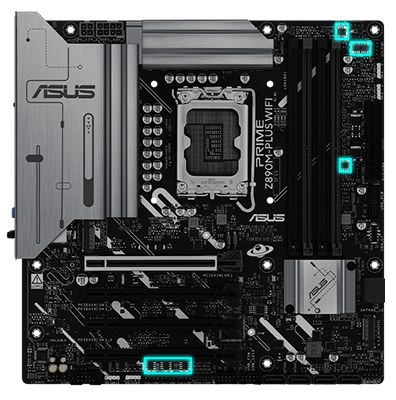

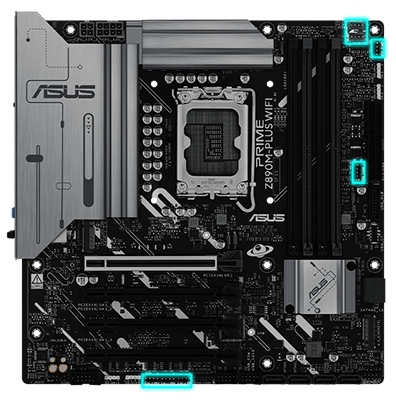

4-Pin PWM/DC fan Each onboard header supports auto-detection of PWM or DC fans.
Outshine the Competition
ASUS Aura Sync A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Empowering Connectivity
PCIE 5.0 PCIe 5.0 doubles the data transfer speed of PCIe 4.0, effectively managing data-intensive tasks while enhancing signal integrity and maintaining backward compatibility with CEM connectors and earlier PCIe versions.

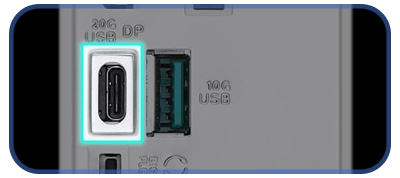

USB 20Gbps port with DP Alt Mode A batch of USB ports caters for high-end rigs loaded with peripherals, including a rear USB Type-C® port offering speeds up to 20Gbps. The port can also support external 4K DisplayPort video output.

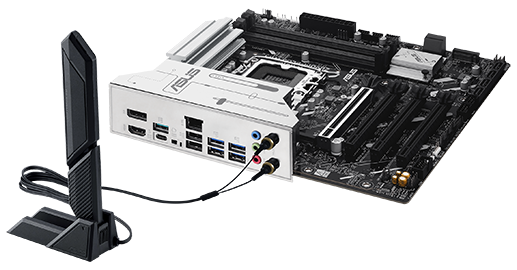

Embrace Ultra-Fast Connectivity
WIFI 7 WiFi 7 features 160 MHz bandwidth in the 6 GHz band and 4096 QAM, while Multi-Link Operation (MLO) enhances stability and reduces latency across 2.4, 5, and 6 GHz bands, improving coverage and throughput.

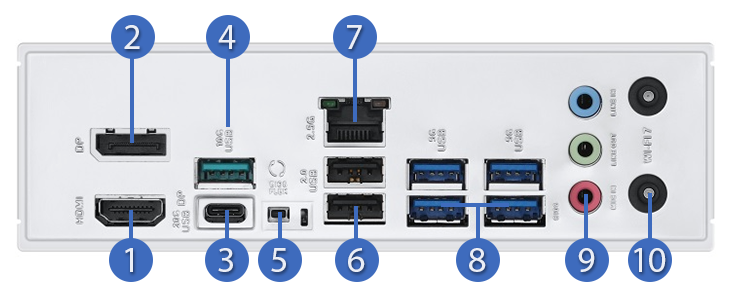

A Fully Comprehensive I/O
