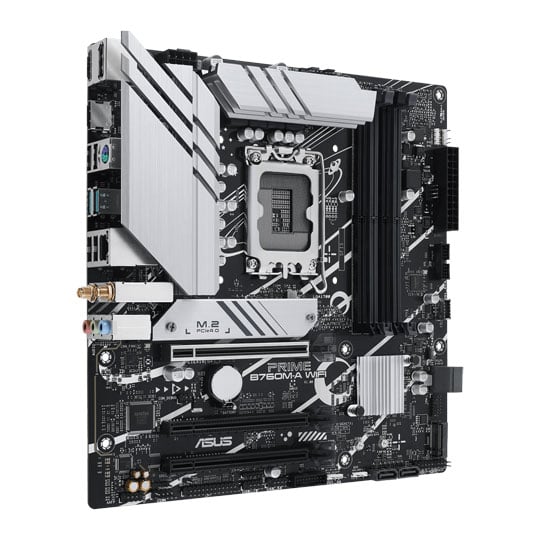

ASUS PRIME Intel B760M-A WIFI micro-ATX Motherboard
ASUS PRIME Intel B760M-A WIFI micro-ATX Motherboard
Scan code: LN135567 Manufacturer code: 90MB1EL0-M1EAY0
£139.99
Get it Friday, 06 DecIn stock
  • Thumbnail 1 : ASUS PRIME Intel B760M-A WIFI micro-ATX Motherboard
  • Thumbnail 2 : ASUS PRIME Intel B760M-A WIFI micro-ATX Motherboard
  • Thumbnail 3 : ASUS PRIME Intel B760M-A WIFI micro-ATX Motherboard
  • Thumbnail 4 : ASUS PRIME Intel B760M-A WIFI micro-ATX Motherboard

ASUS PRIME Intel B760M-A WIFI micro-ATX Motherboard

ASUS PRIME B760M-A WIFI, Intel B760, S 1700, DDR5, SATA3, PCIe 4.0, 2x M.2, 2.5GbE, USB 3.2 Gen2, microATX

Scan code: LN135567 Manufacturer code: 90MB1EL0-M1EAY0
£139.99
Order now and receive it by Friday, 6th December
Get it Friday, 06 DecIn stock
  • By DPD On 6th Dec Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £11.67 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £11.67
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £139.99
    Total inc. interest: £139.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Frequently Bought Together

PRIME B760M-A WIFI 13th Gen Intel mATX Motherboard from ASUS

PRIME B760M-K

The Latest Addition to the Prime SeriesASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. The PRIME B760M-A WIFI motherboard features DDR5 memory, PCIe 4.0 support, Wi-Fi 6/Bluetooth 5.2, 2.5Gb Ethernet, HDMI, USB 3.2 Gen 2 and Aura Sync. Boasting robust power design, comprehensive cooling solutions and intelligent tuning options, users and PC DIY builders are provided with a range of performance optimisations via intuitive software and firmware features.

LGA 1700Intel Socket

B760Chipset

13th Gen Intel CoreProcessors

mATXForm Factor

Outstanding Performance

Boost Your ProductivityThe PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

DDR4 Performance Enhancement

Ultimate DDR5 PerformanceASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.

PCIe 4.0

Two M.2 Slots (up to 64 Gbps)The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

WiFi 6E

Intel® WiFi 6The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Intelligent Control

FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximise productivity.

Power Saving

All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimise power consumption and maximise energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Fan Xpert

Flexible Air and Liquid Cooling ControlsASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, AiO coolers can also be controlled via the UEFI BIOS.

Digi+ VRM

Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Cooler by Design

Configurable CoolingPRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Multiple Temperature Sources

Multiple Temperature SourcesEach header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimise cooling for GPU- and CPU-intensive tasks.

Smart Protection

Smart ProtectionA dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan

4-Pin PWM/DC FanEach onboard header supports auto-detection of PWM or DC fans.

VRM Heatsinks

VRM Heatsinks and Thermal PadsVRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Add A Personal Touch

AURA SYNC

AURA SYNCA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Static

Static

Breathing

Breathing

Strobing

Strobing

Rainbow

Rainbow

Cycle

Colour Cycle

Starry

Starry Night

Music

Music Effect

Smart

Smart

Advanced Configuration Options

UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Advanced Tuning

Quick and Simple SetupEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

EZ mode

Lightning Fast Connectivity

Rear Ports

1 - 1 x DisplayPort
2 - 2 x HDMI® ports
3 - PS/2 combo port
4 - 4 x USB 2.0 ports (Type-A)
5 - 2 x USB 3.2 Gen 2 ports (Type-A)
6 - Realtek 2.5G Ethernet
7 - Wi-Fi 6
8 - 3 x Audio Jacks

Specifications
Core Specifications
Edition Prime B760M-A Wi-Fi D4
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 3400(OC)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface On-board
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x1 Bandwidth)
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x Parallel Port (LPT) Header
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 2.0 Header (1-Port Only)
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 2 x Antenna Ports
  • 1 x DisplayPort 1.4
  • 2 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN135567
Model Number 90MB1EL0-M1EAY0
GTIN 4711387131435
